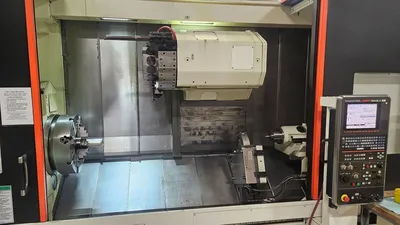

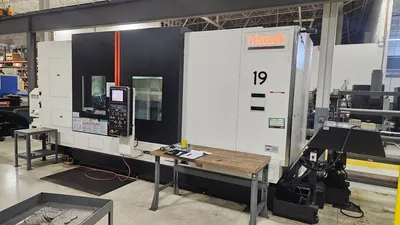

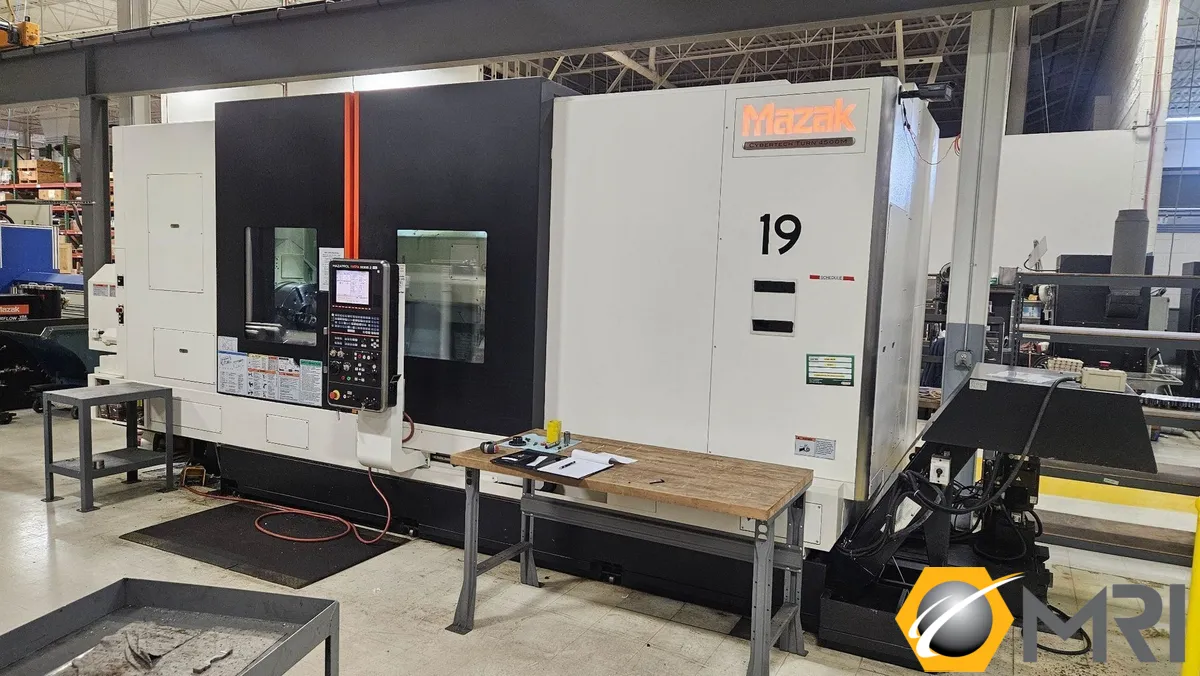

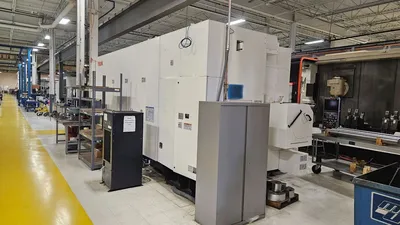

2013 MAZAK CYBERTECH TURN 4500M CNC TURNING CENTER | AG 7612719
ConditionUsed
1 available

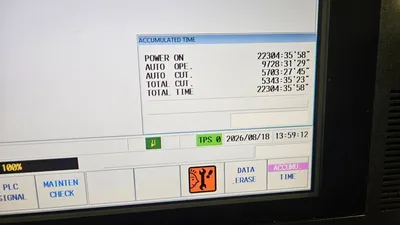

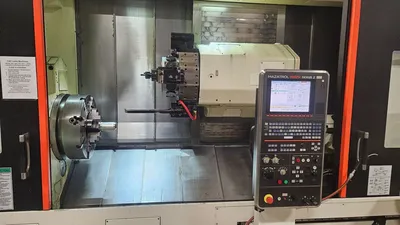

MAZAK CYBERTECH TURN 4500M CNC TURNING CENTER W/ 10.8" SPINDLE BORE. Features 33.8" swing, 80" machining length, 10.8" Spindle Bore, 50 HP, 12 turret stations, 1,000 RPM max, and Mazak Matrix Nexus 2 control. Equipped with 24" 4-Jaw Chucks, Front and Rear, 10.8" bore, Live Milling, Steadyrest, tool eye, chip conveyor, and more. Great for precision machining! Low hours and very clean.

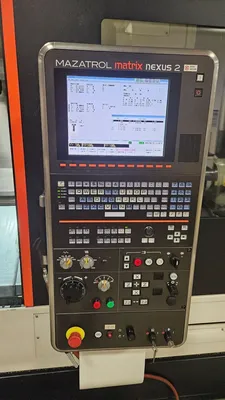

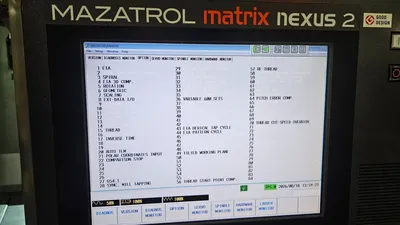

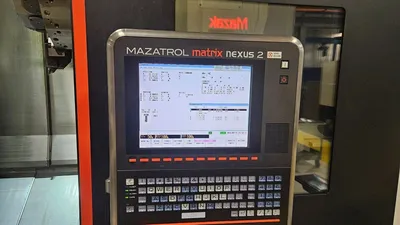

Mazak Matrix Nexus 2 CNC Control
Milling- Spindle Synchronous Tapping

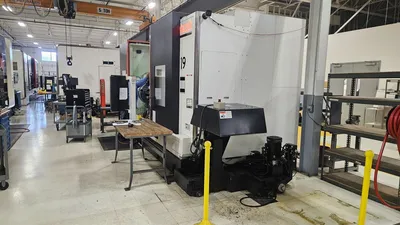

Chip Conveyor 2000U

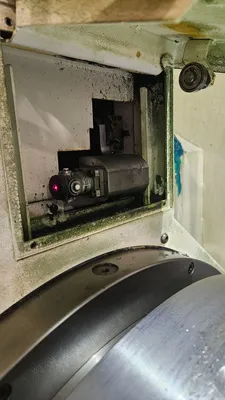

Tool Eye (Automatic)

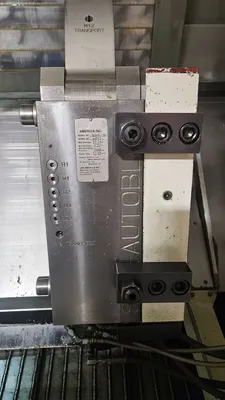

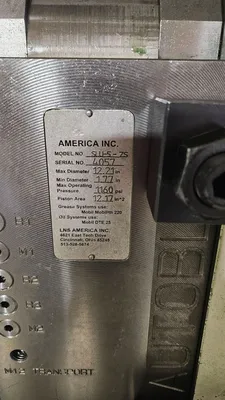

SMW Steady Rest SLU5 (1.77" to 12.2" Cap)
Thread Start Point Compensation
Extendable Tailstock Option 19"
Re-Threading Function
Thread Cutting Function (G33)

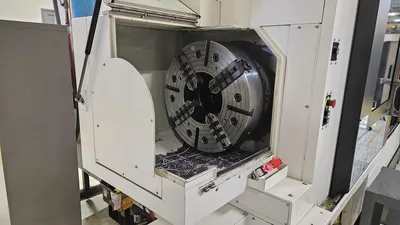

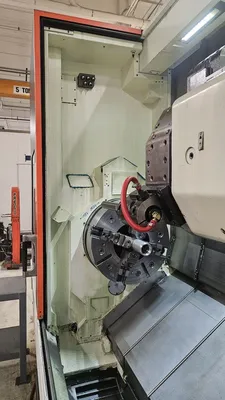

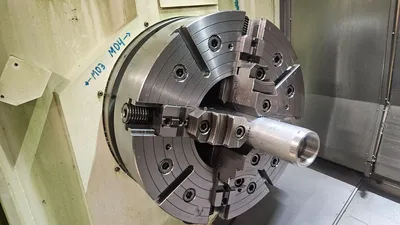

Pratt Burnered 24" 4Jaw Manual Chucks front and rear with 10.8" Bore
High-Power Coolant 213 PSI

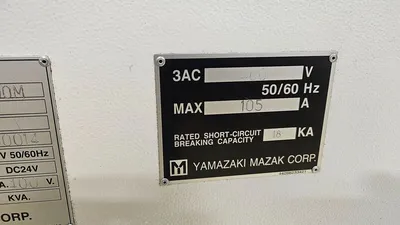

Multitap Transformer 230-460V

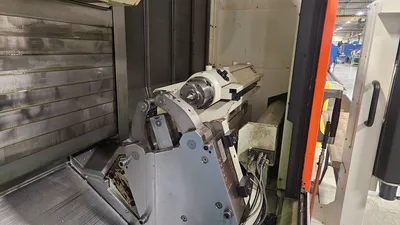

Programmable Tailstock
Tool Eye (Automatic)
SWING 33.8"
SWING OVER CROSS SLIDE 27.6"
MAX CUTTING DAMETER 32.9"
MACHINING LENGTH 80"
# AXIS 3
X-AXIS TRAVEL 21.3"
Z-AXIS TRAVEL 83.3"
CHUCK SIZE 24"
BAR CAPACITY 10.8"
POWER 50 hp
MAX RPM 1,000 RPM
TAILSTOCK Yes
LIVE TOOLING Yes
SPINDLE BORE 10.8"
SUB SPINDLE No
RAPID TRAVERSE RATE X-AXIS 945 ipm
RAPID TRAVERSE RATE Z-AXIS 1181 ipm
LIVE MILLING SPEED 3000 rpm
LIVE MILLING MOTOR 15 hp
# TURRET STATIONS 12 station
C-AXIS INDEXING 0.001
CONTROL CNC (Mazatrol Nexus 2 Control)
DIMENSIONS 92" x 264" x 110.3" H
WEIGHT 41,000 lbs
Mazak Cyber Turn 4500M 80"

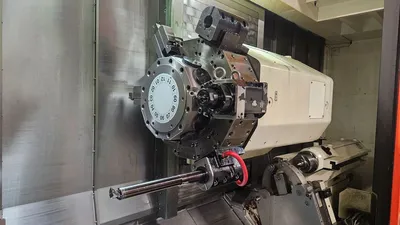

12 Position Turret for Turning or Rotary Tools
C-Axis 0.0001 Degree Imcrements
Programmable Tailstock
Spindle Bore Diameter 10.8" with A2-20 Nose
Spindle Speeed 1000 RPM
Pratt Burnered 24" 4-Jaw Manual Chuck (10.8" Bore) Front and Rear
Rotary Milling:
- Spindle Speed 3,000 RPM
- Spindle Power 15 HP
MAZAK CYBERTECH TURN 4500M CNC TURNING CENTER W/ 10.8" SPINDLE BORE. Features 33.8" swing, 80" machining length, 10.8" Spindle Bore, 50 HP, 12 turret stations, 1,000 RPM max, and Mazak Matrix Nexus 2 control. Equipped with 24" 4-Jaw Chucks, Front and Rear, 10.8" bore, Live Milling, Steadyrest, tool eye, chip conveyor, and more. Great for precision machining! Low hours and very clean.
Mazak Matrix Nexus 2 CNC Control
Milling- Spindle Synchronous Tapping
Chip Conveyor 2000U
Tool Eye (Automatic)
SMW Steady Rest SLU5 (1.77" to 12.2" Cap)
Thread Start Point Compensation
Extendable Tailstock Option 19"
Re-Threading Function
Thread Cutting Function (G33)
Pratt Burnered 24" 4Jaw Manual Chucks front and rear with 10.8" Bore
High-Power Coolant 213 PSI
Multitap Transformer 230-460V
Programmable Tailstock
Tool Eye (Automatic)
Imperial
| Swing | 33.8" |
| Machining Length | 80" |
| # Axis | 3 |
| Bar Capacity | 10.8" |
| Chuck Size | 24" |
| Power | 50 hp |
| Max RPM | 1,000 RPM |
| Tailstock | Yes |
| Live Tooling | Yes |
| Sub Spindle | No |
| Control | CNC (CNC MAZATROL MATRIX NEXUS 2) |
| Dimensions | 92" x 264" x 110.3" H |
| Weight | 41000 |
SWING 33.8"
SWING OVER CROSS SLIDE 27.6"
MAX CUTTING DAMETER 32.9"
MACHINING LENGTH 80"
# AXIS 3
X-AXIS TRAVEL 21.3"
Z-AXIS TRAVEL 83.3"
CHUCK SIZE 24"
BAR CAPACITY 10.8"
POWER 50 hp
MAX RPM 1,000 RPM
TAILSTOCK Yes
LIVE TOOLING Yes
SPINDLE BORE 10.8"
SUB SPINDLE No
RAPID TRAVERSE RATE X-AXIS 945 ipm
RAPID TRAVERSE RATE Z-AXIS 1181 ipm
LIVE MILLING SPEED 3000 rpm
LIVE MILLING MOTOR 15 hp
# TURRET STATIONS 12 station
C-AXIS INDEXING 0.001
CONTROL CNC (Mazatrol Nexus 2 Control)
DIMENSIONS 92" x 264" x 110.3" H
WEIGHT 41,000 lbs
Mazak Cyber Turn 4500M 80"
12 Position Turret for Turning or Rotary Tools
C-Axis 0.0001 Degree Imcrements
Programmable Tailstock
Spindle Bore Diameter 10.8" with A2-20 Nose
Spindle Speeed 1000 RPM
Pratt Burnered 24" 4-Jaw Manual Chuck (10.8" Bore) Front and Rear
Rotary Milling:
- Spindle Speed 3,000 RPM
- Spindle Power 15 HP
