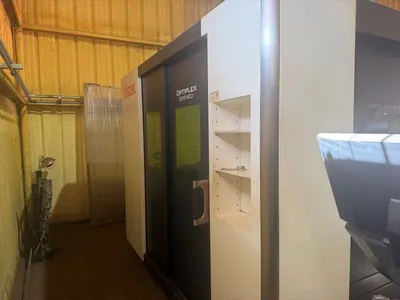

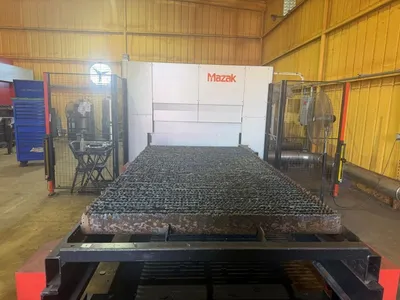

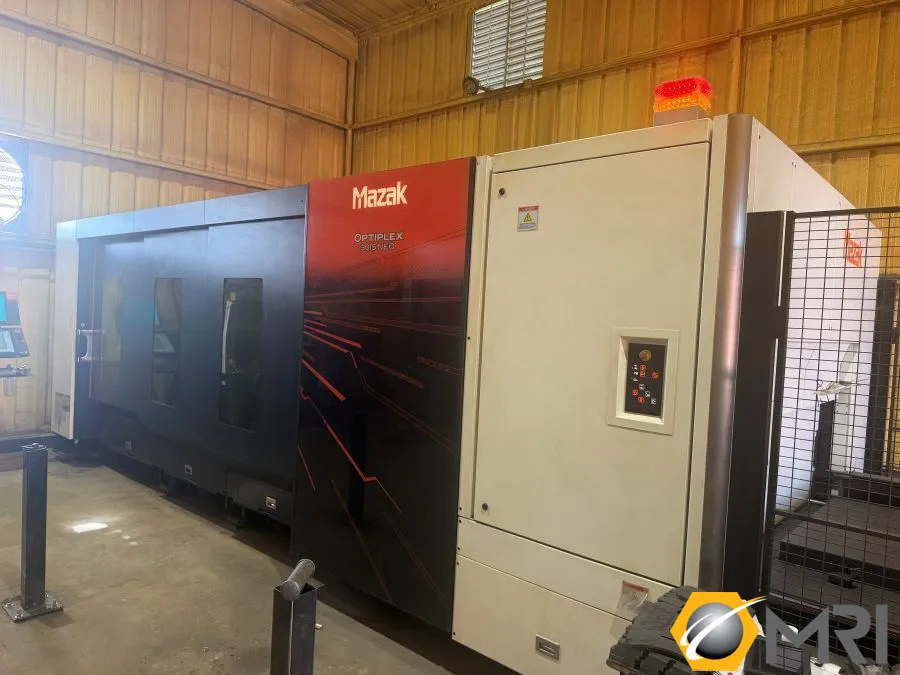

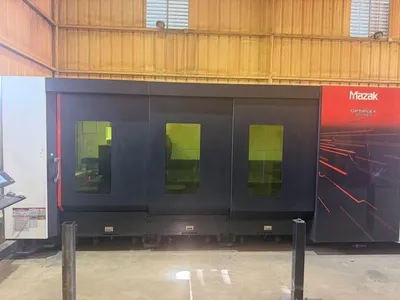

MAZAK OPTIPLEX 3015 NEO, 10KW FIBER LASER, NEW: 2023

LASER TYPE: FIBER
MAX. LASER OUTPUT: 10,000 WATTS
MOTION SYSTEM DESIGN: FLYING OPTIC
AXIS DRIVE SYSTEM X1/X2-Y: RACK & PINION DRIVE
AXIS DRIVE SYSTEM Z: BALL SCREW DRIVE
MAXIMUM WORKPIECE DIMENSIONS: 120” X 60”
MAXIMUM LOAD CAPACITY: 3307 LBS
MACHINE TRAVELS:
- X-AXIS: 122.4"
- Y-AXIS: 62.8"
- Z-AXIS: 5.3"
POSITION ACCURACY:
- X-AXIS: ± 0.002”
- Y-AXIS: ± 0.002”
- Z-AXIS: ± 0.0004”
REPEATABILITY ALL AXES: ± 0.0012”
ACCELERATION:
- X/Y-AXES: 1.8G
- Z-AXIS: 3.0G
RAPID TRAVERSE RATE:
- X/Y-AXES: 4,724 IPM
- Z-AXIS: 2,362 IPM
MAXIMUM MATERIAL THICKNES:
- MILD STEEL: 1.00"
- STAINLESS STEEL: 1.25"
- ALUMINUM: 1.25"

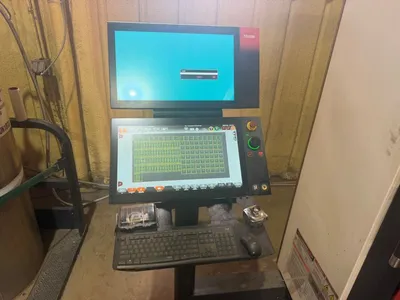

CNC CONTROL SPECIFICATIONS:
- CONTROL: MAZATROL SMOOTHLX
- CPU: 64 BIT
- DATA INPUT: TOUCH SCREEN
- MONITOR: 21.5” WIDE FULL MONITOR
- GRAPHIC PREVIEW DISPLAY: 2D TOOL PATH
- MEMORY STORAGE: 64G
- PROGRAM EXECUTION MEMORY: 8MB
- CONTROLLED AXIS FUNCTION: SIMULTANEOUS 3-AXIS CONTROL
- MINIMUM INPUT COMMAND: 0.0001”
- DATA INPUT: MDI INPUT/PROGRAM EDITING
- PROGRAMMABLE WORK SETUP: WORKPIECE EDGE DETECTION
