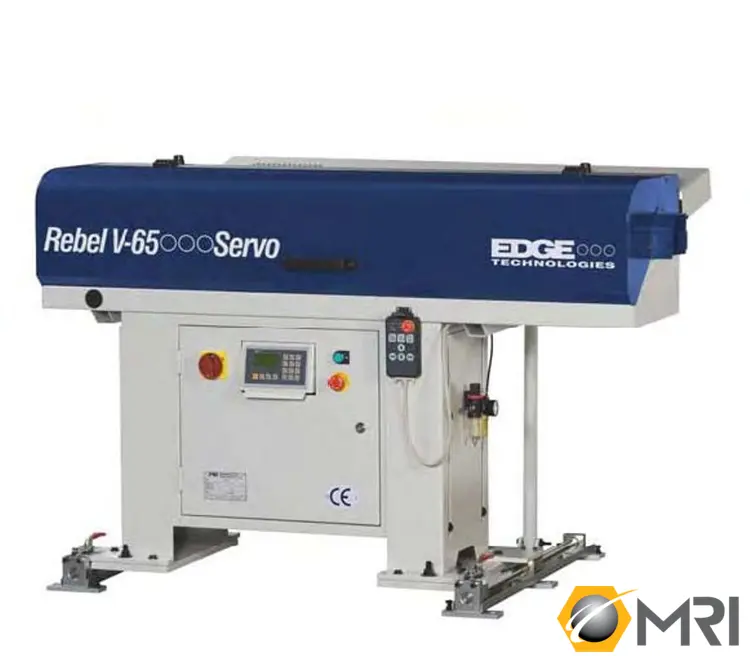

Edge Rebel 65 V3 Servo Magazine Bar Loader
ConditionNew
New
Edge Rebel 65 V3 Servo Magazine Bar Loader
Included:
(3) pushers: 6mm, 10mm, 19mm
(1)Custom lathe cable and male interface plug
Optional (prices subject to change without notice):
Installation USA: $ 3150.00
Spindle liners
up to 51mm: $ 620.00
greater than 51mm: $ 780.00
Dual channel safety kit $ 500.00
High Voltage Kit: $ 750.00
req'd for some lathes
V-Tray Kit: $ 700.00
required for lathes that have a
gap between the sheet metal & spindle
Tall Stands: $ 1,500.00
for lathes with spindle center
greater than 1250mm
Photo Eye $ 1,000.00
Front flag conversion to light beam
Used for small diam bars
Coolant Collector Extension $ 750.00
Reqd with extended liner
Serial Interface Ethernet Connection......$1,800
Square Bar 90-Degree Rollers...... $700
General Specifications per Brochure:
Technical Specifications
Bar diameter: 5mm to 67mm (0.196” to 2.630”)
Bar Length: 1.5m model – 1524mm (60”)
Magazine Capacity: 710mm (28”)
Bar Loading Cycle Time: 20 sec
Power Consumption: 1 kW/1.5 kVA
Operating Voltage : 230 V/60 Hz -3 phase
Control Voltage: 24V DC
Bar Pushers: Ø 6mm Hardened steel
Ø 10mm Hardened steel
Ø 19mm Hardened steel
Machine Footprint: 75” x 48”
Machine Weight: 500 kg (1100 lbs)
Spindle Center Height: 850mm - 1500mm (33.50” - 59”)
Face Off Accuracy: +/- 1.5mm
Part Position Accuracy: +/- 0.1mm
Axial Shift Distance: 740mm (29”)
Control: Mitsubishi PLC
Features & Standard Accessories:
• Bar diameter capacity: 5mm to 67mm (0.196” to 2.630”)
• Magazine Capacity – 28 linear inches
• Easy centerline adjustment using sliding scale
• Standard x-axis axial shift device (z-optional)
• Soft load material presentation
• Remote control pendant
• Fixed piece feedout and sub-spindle mode
• Lathe spindle speed can be maximized
• Material length can be uniform or random
• Material can be round, hexagonal, or shaped
• Rear load (front load optional)
Interfacing Bar Loader to CNC Lathe
The Rebel 65 Servo V3 requires the lathe OEM or dealer to install their lathe
with an authentic magazine bar feeder interface. Among other safety features,
the lathe must be capable of opening and closing the chuck in automatic
mode via m-codes upon request. Edge Technologies will forward an interface
diagram and signal timing chart. Interface connection and the supply of the
appropriate interface is the responsibility of the CNC lathe supplier.
Easy centerline adjustment using sliding scale
Standard X-axis axial shift device
Soft load presentation
Remote control pendant
Fixed feed-out and sub-spindle mode
Lathe Spindle Speed can be maximized
Material length can be uniform or random
Material can be round, hexagonal or shaped

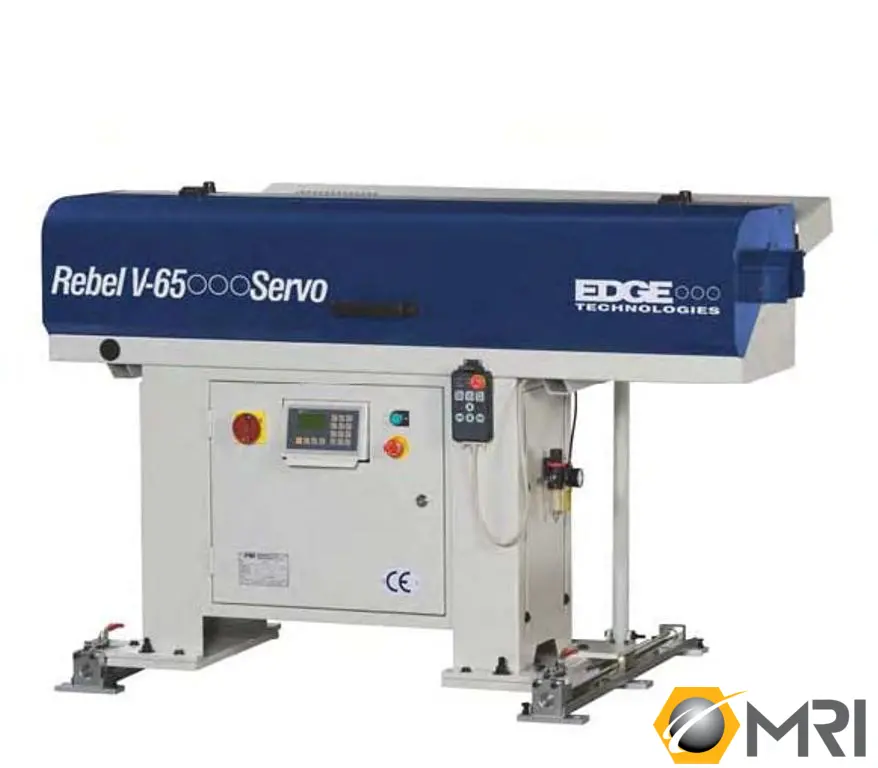

Edge Rebel 65 V3 Servo Magazine Bar Loader
Included:
(3) pushers: 6mm, 10mm, 19mm
(1)Custom lathe cable and male interface plug
Optional (prices subject to change without notice):
Installation USA: $ 3150.00
Spindle liners
up to 51mm: $ 620.00
greater than 51mm: $ 780.00
Dual channel safety kit $ 500.00
High Voltage Kit: $ 750.00
req'd for some lathes
V-Tray Kit: $ 700.00
required for lathes that have a
gap between the sheet metal & spindle
Tall Stands: $ 1,500.00
for lathes with spindle center
greater than 1250mm
Photo Eye $ 1,000.00
Front flag conversion to light beam
Used for small diam bars
Coolant Collector Extension $ 750.00
Reqd with extended liner
Serial Interface Ethernet Connection......$1,800
Square Bar 90-Degree Rollers...... $700
Imperial
| Capacity | 2.625" |
| Bar Length | 5' |
General Specifications per Brochure:
Technical Specifications
Bar diameter: 5mm to 67mm (0.196” to 2.630”)
Bar Length: 1.5m model – 1524mm (60”)
Magazine Capacity: 710mm (28”)
Bar Loading Cycle Time: 20 sec
Power Consumption: 1 kW/1.5 kVA
Operating Voltage : 230 V/60 Hz -3 phase
Control Voltage: 24V DC
Bar Pushers: Ø 6mm Hardened steel
Ø 10mm Hardened steel
Ø 19mm Hardened steel
Machine Footprint: 75” x 48”
Machine Weight: 500 kg (1100 lbs)
Spindle Center Height: 850mm - 1500mm (33.50” - 59”)
Face Off Accuracy: +/- 1.5mm
Part Position Accuracy: +/- 0.1mm
Axial Shift Distance: 740mm (29”)
Control: Mitsubishi PLC
Features & Standard Accessories:
• Bar diameter capacity: 5mm to 67mm (0.196” to 2.630”)
• Magazine Capacity – 28 linear inches
• Easy centerline adjustment using sliding scale
• Standard x-axis axial shift device (z-optional)
• Soft load material presentation
• Remote control pendant
• Fixed piece feedout and sub-spindle mode
• Lathe spindle speed can be maximized
• Material length can be uniform or random
• Material can be round, hexagonal, or shaped
• Rear load (front load optional)
Interfacing Bar Loader to CNC Lathe
The Rebel 65 Servo V3 requires the lathe OEM or dealer to install their lathe
with an authentic magazine bar feeder interface. Among other safety features,
the lathe must be capable of opening and closing the chuck in automatic
mode via m-codes upon request. Edge Technologies will forward an interface
diagram and signal timing chart. Interface connection and the supply of the
appropriate interface is the responsibility of the CNC lathe supplier.
Easy centerline adjustment using sliding scale
Standard X-axis axial shift device
Soft load presentation
Remote control pendant
Fixed feed-out and sub-spindle mode
Lathe Spindle Speed can be maximized
Material length can be uniform or random
Material can be round, hexagonal or shaped
