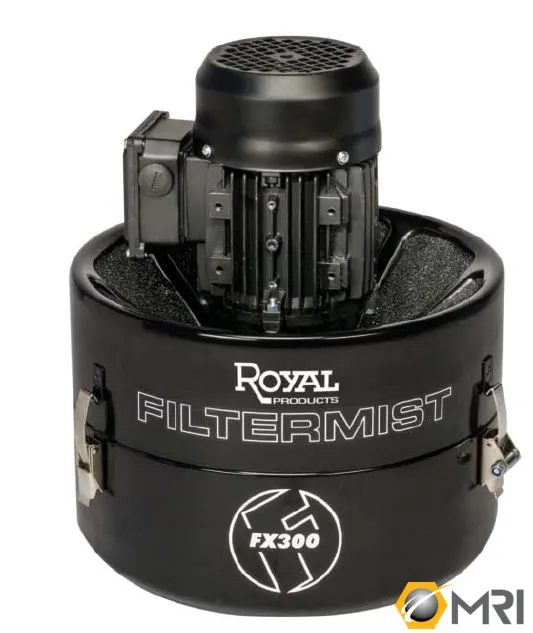

Royal FX-300 Filtermist Collector

General Specifications per Brochure:

Used primarily on small, enclosed CNC machines with an internal volume up to
80 cu. ft.

Large 6" dia. intake results in a very low intake velocity, reducing the
likelihood that chips and large droplets will be drawn into the unit.

The model FX-300 comes complete with a collar seal, mounting hardware, and 5
ft. of coolant return hose.

Designed to be mounted directly to the top of a machine, but can be modified
to mount on a stand or be suspended.

Stainless steel model available for special applications.

A great option for Swiss machines when used in conjunction with our high-performance
after filter.

Airflow: 295 cfm
Motor: 3/4 HP, 3-Phase, Dual Cycle
Voltage & Current @ 60Hz:
208V - 2.7A
230V - 2.5A
460V - 1.3A
Weight: 31 lbs.
Noise Level: 65 dBA
Inlet Diameter: 6"
Machine Enclosure Volume: Up to 80 cu. ft.

ACCESSORIES (Prices subject to Change without notice, MUST BE VERIFIED AT TIME OF PURHCASE FOR AVAILABILITY AND PRICING)

FX-300 Stainless Steel Unit
$6,495.00

30165HP FILTERMIST MODEL FX300 STAINLESS+PADS+ HP FILTER
$POR

All Accessories:

30105HP FILTERMIST FX-300+DRUM PAD SET+HP AFTER-FILTER $ 3,640.00
30105PROMO FILTERMIST FX-300+DRUM PAD SET+STD AFTER FILTER $3,040.00
30136 FX-300 PLENUM KIT W/ LOW VOLTAGE STARTER $ 5,130.00
30137 FX-300 PLENUM KIT W/ HIGH VOLTAGE STARTER $5,130.00
30200 Standard After Filter “A” — FX-275, FX-300, FX-550, FX-575, F-275 $355.00
30203 High-Performance After Filter “A” — FX-275, FX-300, FX-550, FX-575 $943.00
30222 FILTERMIST CHIP DEFLECTOR "A", FX-300 & FX-575, $105.00
30311 FILTERMIST SHORT MACHINE TOP STAND "A", FX-300 & FX-575 $350.00
30316 FIXED FLOOR STAND "A" = FX-300, FX-575 $782.00
30319 FILTERMIST MACHINE TOP STAND "A", FX-300 & FX-575 $494.00
30321 UNIVERSAL PLENUM $978.00
30328 FILTERMIST WALL BRACKET "A", FX-300 & FX-575 $271.00
30330 FILTERMIST SIDE MOUNTING BRACKET "A" FOR FX-300 & FX-575 $494.00
30342 DUCTING (6") $21.00
30352 DUCTING CLAMP (6") $10.00
30372 FLANGE ADAPTER (6") $97.00
30440 FILTERMIST MOTOR MOUNT KIT F/FX-275, FX-300,FX-550/575 $92.00
30470 STARTER BOX KIT, FX-300 & FX-575, LOW-VOLTAGE, 208/230V $717.00
30471 STARTER BOX KIT, FX-300 & FX-575, HIGH-VOLTAGE, 460V $717.00
30500 FILTERMIST MAINT KIT FOR FX-300 $199.00
30520 FILTERMIST SILENCER FX300 & FX575 $103.00
30560 FILTERMIST DRUM FOR FX-300 $614.00
30561 FILTERMIST DRUM FOR FX300 STAINLESs $1,010.00
30572 FILTERMIST DRUM BUSHING FX300 & FX575, NOT FOR STAINLESS UNITS $211.00
