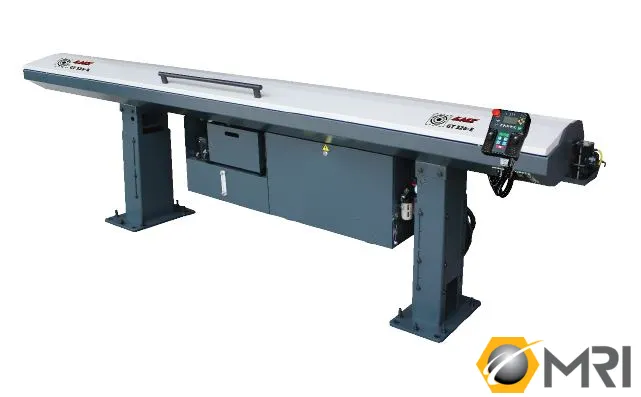

LNS GT-326-E Magazine Bar Feed

General Specifications per brochure:

Technical Specifications
Bar Diameter: 1/8" to .787" (3 mm - 20 mm)
1.02" (26 mm) max. with bar preparation
Magazine Capacity: 10.6" (270 mm)
Model: 12'
Air pressure: 5-7 kg/cm (90-100 PSI)
Oil: ISO 100/ 28 liters
Power supply: 220V / 3 phase / 5 amps
(other voltages available)

Weight: 1,210 lbs
Dimensions: 4495mm x 513mm x 3790mm
177" x 21" x 149"

Features:
-Hydrodynamic support of the revolving bar
-2 minute setup for partial changeover
-8 minute or less complete changeover
-Quick change guiding channels and pushers
-Ultra-light Remote Control Pendant (HMI) for easy setup
-10.6” (270 mm) wide magazine tray capacity, holds up to 17
x 5/8” diameter bars, self-contained
-AC servo motor for pusher control
-Automatic Torque and Speed Adjustment by easy programming
-Automatic hydrostatic two-position front stabilizer, quick and easy manual
adjustment to bar diameter
-Remnant Retraction System - bar end is extracted from the lathe and deposited
into a storage drawer
-Easy manual diameter adjustment for magazine bar selection fingers (no tool
required)
-High speed electronic headstock synchronization monitored by servo drive
-Swiss safety connection for sliding headstock machines
-Accommodates left or right spindle machine configuration
-Optional Z-axis retraction and adjustable 2-position for non-guide bushing
applications

Base Unit $20,700.00

1/8" to .787" (3 mm to 20 mm) 1.02" max.
(26 mm) with bar preparation diameter x 12' 3" bar length
(Right or Left load available)
- 1 Guiding Channel Set with Pusher
- 1 Reduction Tube or Spindle Liner
- 1 Remnant Retract Collet (please specify stock size)
- High Speed Electronic Headstock Synchronization System
- Custom Electrical Cable Package with Plugs
- Manual Front Stabilizer Bar Support

PERFORMANCE PACKAGES

16, 20, or 25 mm bar capacity lathe
Including:
• 3 Guiding Channels with Pusher $24,660.00
Including: 3 Guiding channels
16 mm package – 17, 14, & 11 mm I.D.
20 mm package – 23, 17, & 11 mm I.D.
25 mm package – 27, 21, & 14 mm I.D.
3 collets, 2 reduction tubes or spindle liners
• High Speed Electronic Headstock
Synchronization System
• 2 Reduction Tubes or Spindle Liners
• Manual Front Stabilizer Bar Support
• Custom Electrical Cable Package with Plugs
• 3 Remnant Retract Collet/Cone and Collet Adapters

GUIDING CHANNEL SET SELECTION CHART
Spindle Bore Dia: 27 23 21 19 17 14 11 8
Guide Channel Dia: 27 23 21 19 17 14 11 8
Bar Stock Range: 14-23 13-20 11-18 8-16 7-14 4-10 3-8 3-5
without Bar Preparation
Bar Stock Range: 23-26 20-22 18-20 16-18 14-16 10-12 8-10 5-7
with Bar Preparation

OPTIONAL ACCESSORIES

Guiding Channel Set, Including One Pusher: $2,035.00
Remnant Retract Collet:
-.078" - .437": $ 115.00
-.438" - .868": $ 140.00
-.869" - 1.249": $ 170.00
-Cone For Pusher .250" - 2.050": $ 190.00

T-Tube Liner (one required per channel set size): $ 160.00
Bar feeder retraction system: $ 1,015.00
(for easy access for machine maintenance) with
safety switch
Adjustable 2-position bar feeder retraction system: $ 1,340.00
with safety switches (Non-guide bushing applications)
Dual Channel Safety Circuit Protection (DCS) $ 535.00

INSTALLATION

USA Installation (Net): $3,450
Canada & Mexico Installation Price: $4,150
