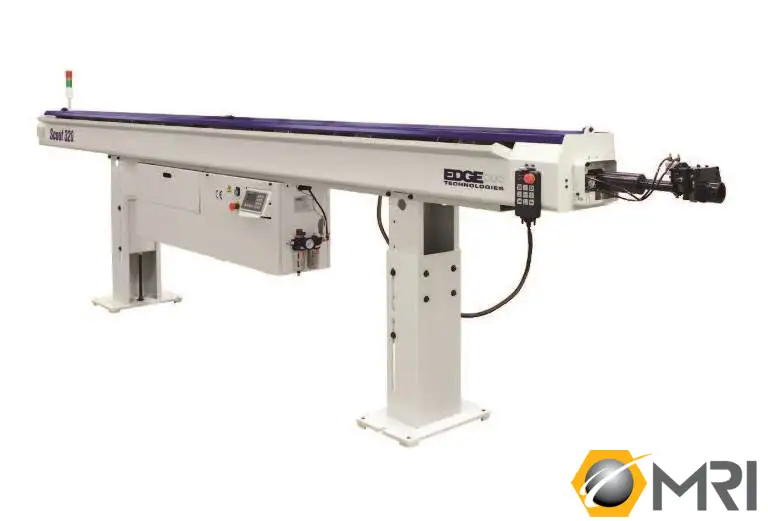

Edge Technologies Scout 320 Magazine Bar Feed
ConditionNew
New
Edge Technologies Scout 320 Magazine Bar Feed
Sliding or Fixed Headstock
Standard Accessories
(1) Guide channel set to be chosen by customer. Several
sizes to choose from, each handling a specific stock range.
See chart on next page (spindle liner required if channel set
is not lathe’s max capacity)
(1) Standard telescoping front nose matched to the guide
channel set
(1) O.D. bar stock collet to be chosen by customer.
(Specific collet needed for each stock diameter.)
Swiss headstock synchronization device
Custom lathe cable and interface plugs
General Specifications per Manufacturer's Brochure
(all details must be confirmed by buyer)
Bar Diameter Range: 3 - 26mm (28mm channel)
Control: Mitsubishi
Magazine: 7.8" of storage
Maximum Bar Length: 3785mm (12' 5")
Maximum Remnant Length: 420mm (16.5 inches)
Collet Insert: Gripper used for collet insert
Sync: Mechanical for small bars
Steady: (2) anti vibration roller steady supports
Roller support mounted on lathe spindle
Drive type: Belt - maintenance free
Servo: Servo driven for fine push adjustment
Channel: One piece channel closure that stays closed
Heavy gauge steel for channel support
Design: Uni-body Rigid construction for support
Reversible to load from front or rear
Power Consumption: 1.5 kW
Feed force: adjustable max 450 N
Forward feed rate: 1000 mm/sec
Loading time: 30 sec (for 12' bars)
Oil Capacity: ISO 100 cST
Operating Voltage: 230V / 60 Hz
Compressed air Supply: 6 bar (90 psi)
Compressed Air Consumption: approx 8 liters/ loading action
Dimensions (approx): 4380mm x 400mm x 1400mm
181" x 16" x 55"
Weight (approx): 1020 lbs
Includes one channel
All prices subject to change without notice.
Price for 2 channel package
2 Channels, 2 pshers, 2 telescopic noses,
2 pusher collets, 1 spindle liner ....................$ 24,800
Installation USA .........................................$ 3,600.00
Optional Accessories
Additional Guide Channel Set .............................$ 2,750.00
Spindle liner ............................................$ 480.00
Bar Stock Pusher Collets .................................$ 150.00 ea
Moveable Anti Vibration Blocks (2 sets req's) ............$ 250.00 ea
available in 8mm, 10mm, 12mm, 14mm,16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm
Dual Channel Safety Kit ..................................$ 500.00
High Voltage Kit (reqd for some models) ..................$ 750.00
Axial Shift Device with Safety Switches ..................$ 1,950.00
Master liner - ..........................................$ 650.00
required when under sizing bar feeder to lathe spindle (still requires spindle liner)
