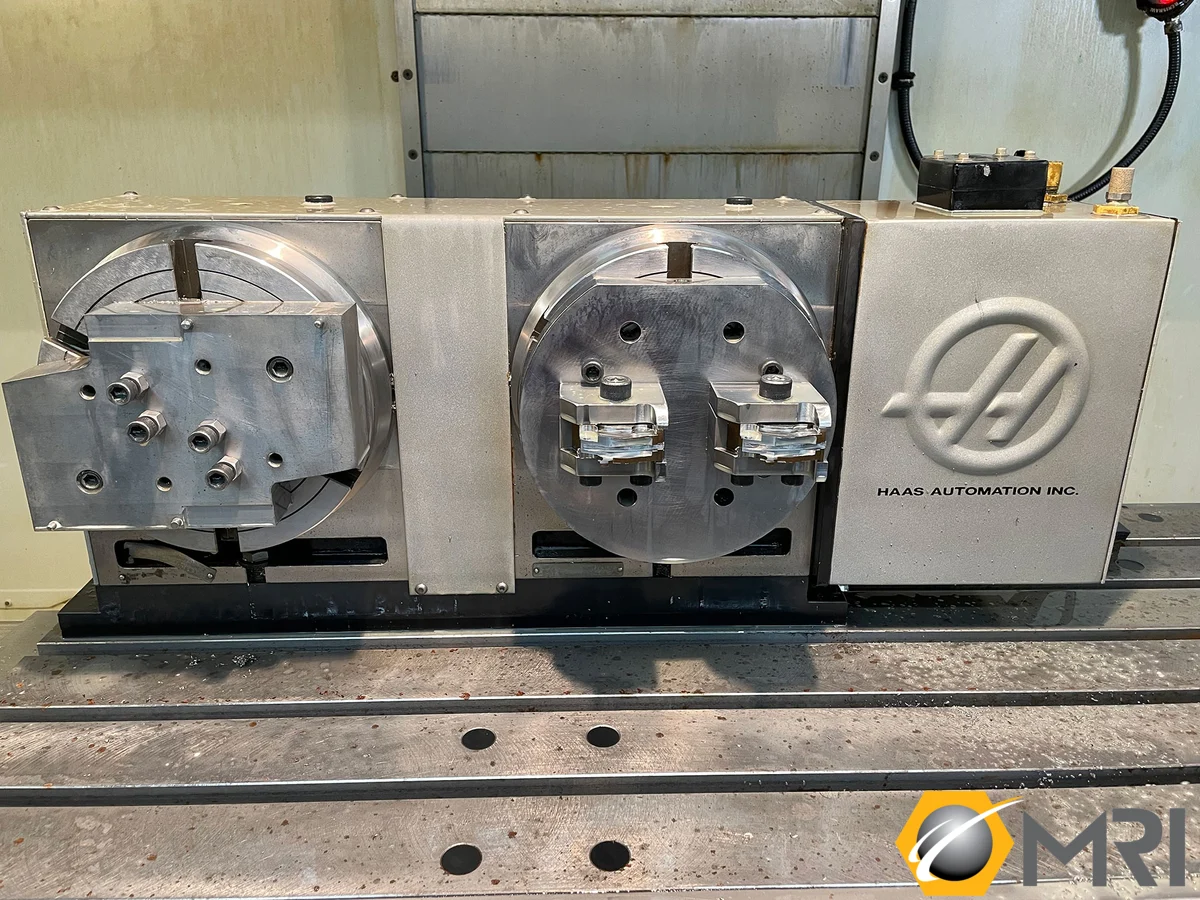

Sigma 1 motor and will work in all machines even the newer NextGen control.
| Table Size-X | 8.27" | 210.06 mm |
| Table Size-Y | 8.27" | 210.06 mm |
| Dimensions | 46" x 24" x 24" | 46" x 24" x 24" |
| Weight | 440 lbs | 440 lbs |
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
Platter
Diameter: 8.30"
Weight on Platter (w/Support): 120 lbs
Weight on Platter (Unsupported): 60 lbs
Spindle
Speed: 60 Degrees/Second
Torque: 170 ft-lbf
Runout Max: 0.0005"
Center Height: 7.750"
Backlash: 30 Arc-Sec
Brake Torque @ 100 PSI/6.9 Bar: 200 Ft-lbf
Gear Ratio: 90:1
Timing: 2:1
Indexing
Accuracy (+): + 15 Arc-Sec
Repeatability: 10 Arc-Sec
Resolution: 0.001 Degree
Worm Gear Diameter: 6.3"
Machine Dimensions: 46" x 24" x 24"
Machine Weight: 440 lbs
This equipment has been sold. Similar equipment available now is shown below.
