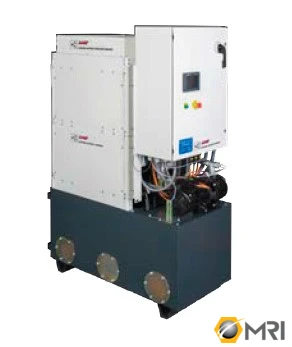

New ChipBLASTER V2-120 (was WV2-120) High-Pressure Coolant System

General Specifications As Per Brochure

V-Series High Pressure Coolant Systems
Variable volume, variable pressure, modular, premium with available options

Max. Pressure: 1000 PSI
Coolant Volume: Automatically Variable Volume
6 - 32 GPM
Tank: 126 Gallon
Filtration: Dual Parallel Bags
Outlets: 2

The Chipblaster V2-120 can operate as two completely independent 60 liter (16 gpm) modules
or combine to provide high pressure and very high volumes 120 liters at any time during the
same program. Ideal for machine tools up to 60kw (80hp), dual turret lathes and 50 taper
mills.
This user-friendly interface makes operating and managing the Chipblaster V2-120 system
faster and easier. The HMI is pre-programmed for multiple languages, provides easy-to-read,
plain text alarm screens, records critical alarm history data, allows the operator to view PLC
I/Os in real time, and much more.

See brochure for more details.

Diaphragm Pump Upgrade* N/A
Cyclone Filtration Upgrade $3,950.00
Wash Wand $2,875.00
Pressure or Flow Switch $3,390.00
Oil Skimmer $865.00

Other Accessories:
Mounted Chiller 34k BTU on HPC Unit: $16,580
CC-34k (Stand Alone): 34k BTU Premium Chiller Stand Alone: $18,090
Mounted CC to Hyfra Upgrade, Swap of Mounted CC to Mounted Hyfra, Must add Mandatory Installation by CB:
$18,090
CC-34k Heater, Upgrade for Adding 480L Tank and heater to CC 34k Chiller: $8,330

Installation of First High Pressure or Air Filtration System: $2,950
Installation of each Additional Accessory: $1,700
