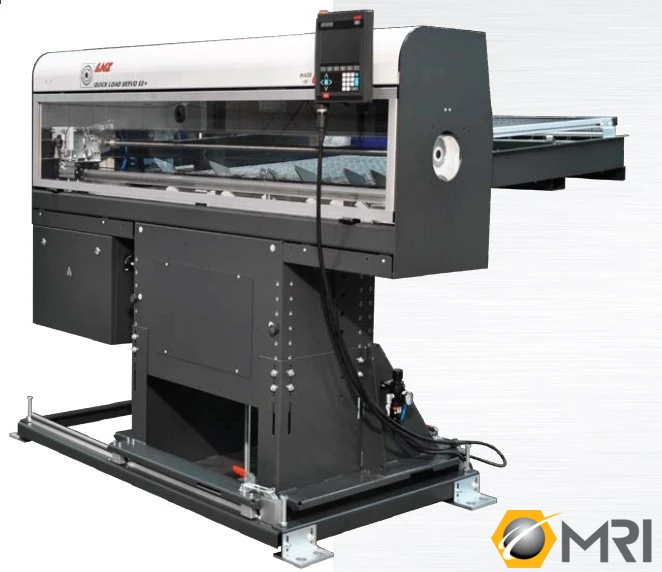

New LNS Quick Load Servo S3 + Magazine Bar Loader

General Specifications as per Brochure

Bar Diameter Capacity: 3/8" - 4.750 (6mm - 120mm)
weight limit 150 lbs/bar
Bar Length Capacity: up to 63" (1600mm) not to exceed
single length
Power Supply: 230/380/420/480 volts/60hz/
single phase/max. 1amp
Bar Reload Time: 15 seconds
Shaft Load Time: 4 seconds
Changeover Time: 15 seconds
Bar Reload Time: 15 seconds
Tray Capacity: 39" wide
Air Supply: 80 - 100 psi
Control Voltage: 24V DC
Shipping Weight (approx.): 1,750 lbs
Equipped With:
Servo drive w/absolute encoder
Automatic bar diameter adjustment
Automatic torque & speed adjustment
Feed to part length
Front or rear load
Prompting remote control
Program data stored on smart media card
23" x or Z-axis retraction system
Optional one-shot shaft loading
Sub-spindle & traveling spindle applications
See-through design
Hardened rollers
Linear ways

Base unit equipped with:
2 pushers with bushing
9/16 - 1 1/4" diameter bar stock (12mm pusher)
1 5/16 - 4 3/4" diameter barstock (25mm pusher)
23" x or z axis retraction
Custom electrical cable package and plug

*** prices subject to change without notice ***

Optional Accessories:
Optional pusher with bushing 1/4" through 1/2" (6mm pusher).. $ 430.00
V-channel extension for square bar stock, 6" or 12" long.......$ 480.00
V-channel extension for round or hex bar stock, 6" or 12" long.$ 480.00
Adapter kit to load square bar stock...........................$ 640.00
Adapter kit to load 5" through 10" long round or
hex bar stock................................................$ 660.00
Adapter kit to load parts shorter than 5"......................$ P.O.R.
Adjustable pusher for one shot shaft loading...................$ 855.00
Replaceable disk for 25mm pusher (for tubing- turn to fit).....$ 220.00
Special 8" or 12" pusher extension package for extended
Extended 50" Z-axis retrsct system.............................$ 1,605.00
Increased weight capacity to 176 lb./bar - 4" maximum diameter $ 1,125.00
e-Connect interface capability ................................$ P.O.R
Dual Channel Safety Circuit Protection (DCS) ..................$ 535.00

Installation (USA).............................................$ 2,950.00
Installation (Canada & Mexico) ................................$ 3,450.00

Steel spindle liners

Quick Load requires one spindle liner for each bar stock diameter

Round Hex/Square Quick Change Adapter
Up to 3 1/8" drawtube ID ........$ 530.00......$ 585.00 ............$ 580.00
3 1/4" - 4 1/8" .................$ 665.00......$ 725.00 ............$ 690.00
4 1/4" - 5 1/8" .................$ 770.00......$ 830.00 ............$ 690.00
Sizes larger than 6-1/8” ......... Consult Factory
surcharge for hardened liners....$ 350.00
Confirmation Ring ...............$ 270.00
coolant collection extention.....$ 700.00

Polyurethane liners
Round Hex/Square Custom
Up to 3 1/8" drawtube ID ........$ 375.00.......$510.00.........$960.00
3 1/4" - 4 3/4" .................$ 665.00.......$780.00........$1,065.00
