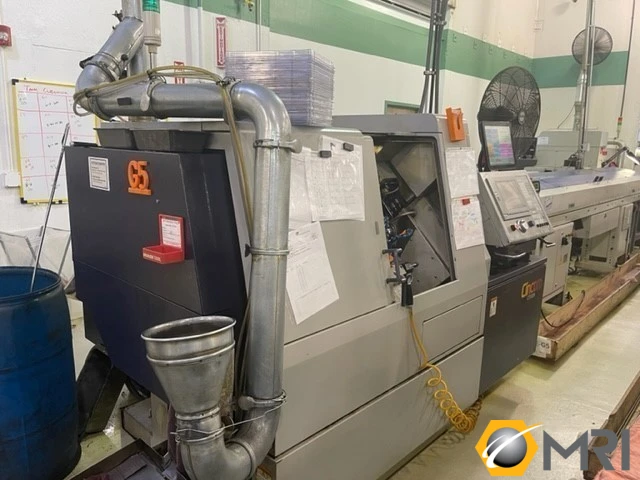

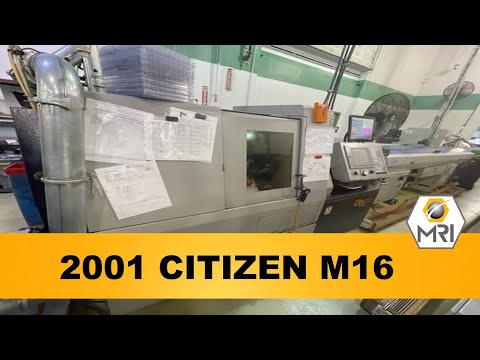

2001 Citizen M16 CNC Swiss Lathe | AB 603334

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:
CNC Control: Mitsubishi (M6M)
Axes: X1, Y1, Z1, C1, X2, Z2, A2, Z3, C2
Machining Diameter: 5/8"
Machining Length per Chucking: 7 3/4" (200mm)
Drilling Diameter: 6mm Maximum Threading
Diameter (tap & die): M6
Main Spindle Speed: 200 - 10000 rpm
Main Spindle Indexing: Full C-Axis
Rotary Spindle on Gang Tool Post:
Drilling Diameter: 5mm (Tapping M4)
Spindle Speed: 200 - 8000 rpm
Rotary Spindle on Tool Turret Head:
Drilling Diameter: 5mm
Threading Diameter: M5
Spindle Speed: 200 - 6500 rpm
Backwork:
Chucking Diameter of Backwork Spindle: 5/8"
Backwork Length: 125mm
Drilling Diameter: 5mm
Threading Diameter: M5
Backwork Spindle Speed: 250 - 6000 rpm
Spindle Indexing: Full C-Axis
Number of Installable Tools:
Gang Tooling: 5 Turning, 3 Rotary
Turret Tooling: 10 Tools
Number of Turret Indexes: 10 sets (20 sets avail.)
Back Work Tool Post: 3
Tool Sizes:
Gang Tooling: 10mm x 10mm x 120mm
Turret Tooling: 10mm x 10mm x 60mm
Sleeve Size: 19.05mm diameter
Motors:
Main Spindle Drive: 1.5/2.2kw
Power Supply: 6 kva

Machine: 100" x 50" x 84" 5,000 lbs
