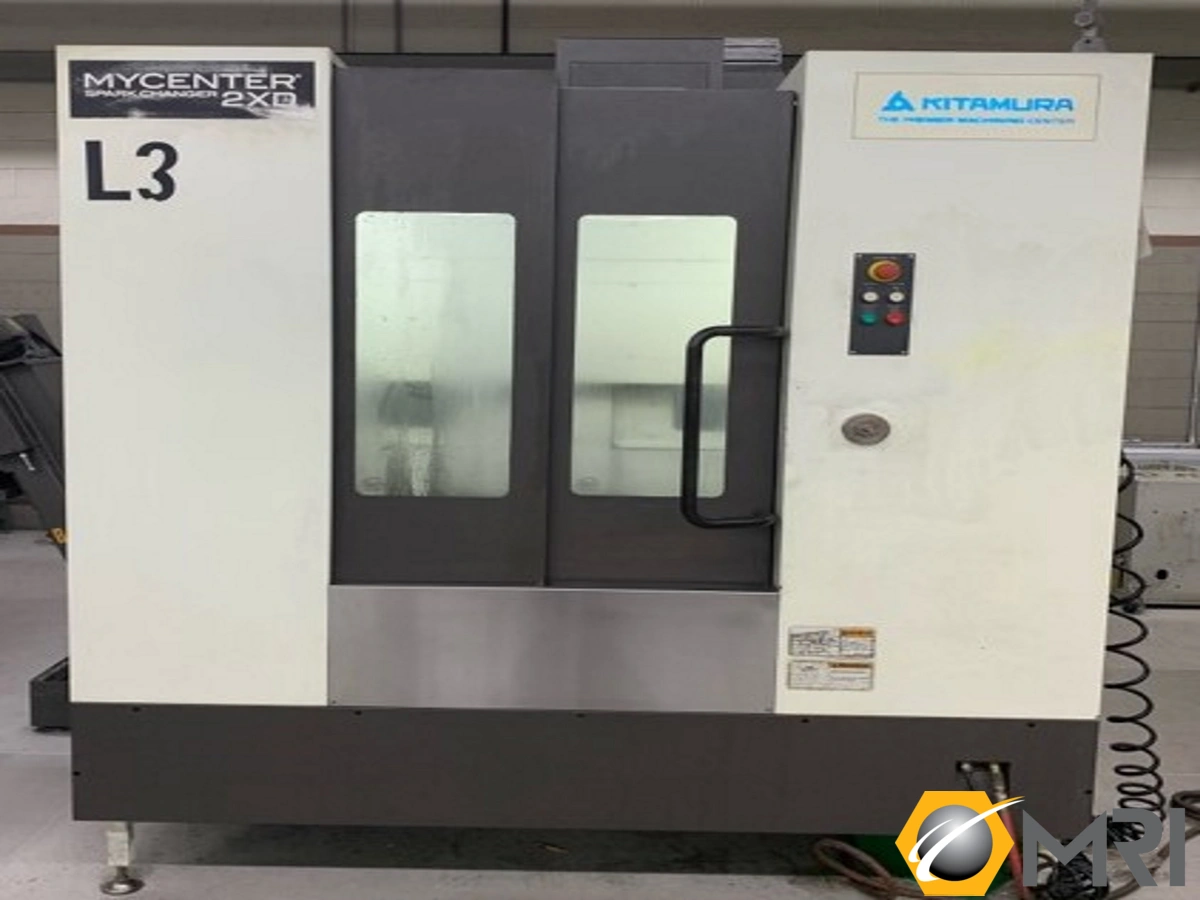

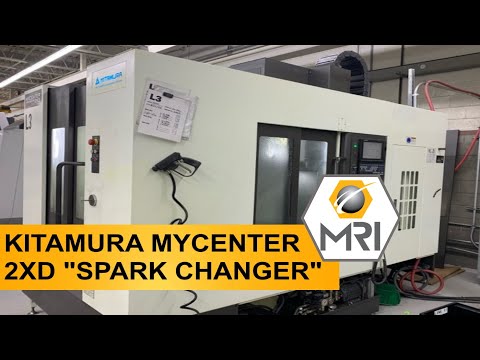

KITAMURA MY CENTER 2XD "SPARK CHANGER" CNC VERTICAL MACHINING CENTER NEW: 2017 | MM 848590

KITAMURA MY CENTER 2XD "SPARK CHANGER" CNC VERTICAL MACHINING CENTER NEW: 2017 | MM 848590

Sell Your KITAMURA MYCENTER 2XD "SPARK CHANGER"
877-568-2121
inquiries@machineryresources.com
$49,500.00 USD
ConditionUsed
1 available
Sell Your KITAMURA MYCENTER 2XD "SPARK CHANGER"

Overview

Type:
Vertical Machining Centers
Manufacturer:
KITAMURA
Model:
MYCENTER 2XD "SPARK CHANGER"
Year:
2017
Stock #:
848590
Status:
For Sale

AUTOMATIC PALLET CHANGER
BASE WASH COOLANT
COOLANT THRU SPINDLE "FIELD RETROFIT"
SCRAPER TYPE CHIP CONVEYOR
SCREW TYPE AUGER ON EACH SIDE OF BED CASTING
AUTO POWER OFF DEVICE
REMOTE JOG HANDLE
HIGH SPEED MACHINING
HIGH SPEED-HIGH ACCURACY CONTROL
USB DEVICE
KITAMURA COOLANT THRU SPINDLE OPTION

X-Axis23.6"599.44 mm
Y-Axis20.1"510.54 mm
Z-Axis20.1"510.54 mm
# Axis33
Power20 hp14.9 kW
RPM12,000 RPM12,000 RPM
TaperCat 40Cat 40
# ATC4040
Table-W15.7"398.78 mm
Table-L22"558.8 mm
Pallets?YesYes
4th AxisNoNo
ControlCNC (CNC FANUC)CNC (CNC FANUC)

TRAVELS:
-X: 23.6"
-Y: 20.1"
-Z: 20.1"
TABLE SIZE: 15.7" X 22.0"
SPINDLE TAPER: CAT. 40
SPINDLE SPEED: 12,000RPM,
TOOL STORAGE CAPACITY: 40 PCS.
TOOL CHANGE TIME (T-T/C-C): 2.2 SEC. /4.2 SEC.
RAPID FEED (X, Y X Z): 2,047IPM X/Y X 1,890IPM Z
POWER REQUIREMENT: 30KVA

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
