DOOSAN PUMA 2600SY 5-AXIS CNC LATHE, NEW: 2011 | AG 861910
Sold

DOOSAN PUMA 2600SY 5-AXIS CNC LATHE, NEW: 2011 | AG 861910

Sell Your DOOSAN PUMA 2600SY 5-AXIS
CNC LATHE WITH 5-AXIS OR MORE
Manufacturer:
DOOSAN
Model:
PUMA 2600SY 5-AXIS
Year:
2011
Stock #:
861910
FEATURING: FANUC 31I-MODEL A CONTROL, 5-AXIS WITH SUBSPINDLE, Y AXIS MILLING, CHIP CONVEYOR, PARTS CATCHER, PARTS CONVEYOR

CNC CONTROL: FANUC 31I-MODEL A
# AXIS: 5
SUBSPINDLE
Y AXIS MILLING
CHIP CONVEYOR
PARTS CATCHER
PARTS CONVEYOR

Pair this Machine with a full 12' barfeed: Machine #7611891
-LNS Sprint 565 S2, 2021. $$$ - Price Upon Request.

# Axis55
Swing30.7"779.78 mm
Chuck Size10"254 mm
Bar Capacity3"76.2 mm
Power30 hp22.4 kW
Max RPM4,000 RPM4,000 RPM
Turning Dia14.8"375.92 mm
Tailstock (Yes/No)NoNo
ControlCNC (FANUC 31i-MODEL A CNC CONTROL)CNC (FANUC 31i-MODEL A CNC CONTROL)

SWING: 30.7"
MAX TURNING LENGTH: 29.9"
TURNING DIAMETER: 14.8"
CENTER DISTANCE: 32.7"
BAR CAPACITY: 3"
X-AXIS TRAVEL: 10.2"
Z-AXIS TRAVEL: 32.7"
Y-AXIS TRAVEL: 4.1"
B-AXIS TRAVEL (SUB SPINDLE):32.7"
C1/C2-AXIS INDEX: 0.001°
RAPID TRAVERSE (X/Z): 1,181 IPM
SPINDLE NOSE: A2-8
SPINDLE SPEED: 4,000 RPM
MAIN MOTOR: 30 HP
LIVE TOOLING: YES
LIVE TOOLING SPEED: 5,000 RPM
LIVE TOOLING MOTOR: 7.5 HP
TAILSTOCK: NO
Y-AXIS: YES
SUB SPINDLE: YES
SUB SPINDLE NOSE: A2-5
SUB SPINDLE CHUCK: COLLET
SUB SPINDLE BAR CAPACITY: 2.4"
SUB SPINDLE SPEED: 4,500 RPM
SUB SPINDLE MOTOR (HP): 11 HP

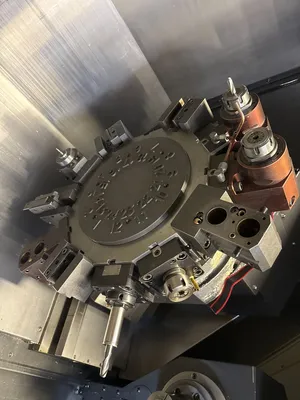

TURRET CAPACITY: 12

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
