OKUMA CAPTAIN L370 CNC LATHE NEW: 2001 | JS 7611468
$18,500.00 USD
ConditionUsed
1 available

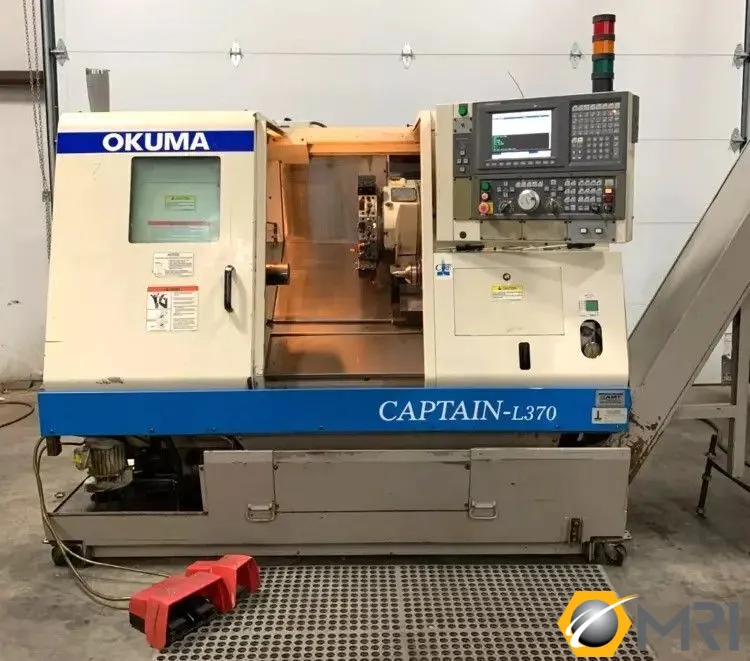

OKUMA CAPTAIN L370 CNC LATHE NEW: 2001
OSP-E100L CNC CONTROL
12-STATION TURRET
COLLET CHUCK
TOUCH SETTER
HYDRAULIC TAILSTOCK WITH POWER QUILL
CHIP PAN AND CHIP CONVEYOR
COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
FOOT OPERATED CONTROL FOR CHUCK AND TAILSTOCK
OVERALL DIMENSIONS: 110 X 68 X 80 HIGH
OVERALL DIMENSIONS: 140 X 68 X 80 HIGH WITH CHIP CONVEYOR
WEIGHT : 9,000 LBS APPROX.
CHUCK SIZE 8"
SWING 20.8"
MACHINING LENGTH 20.47"
# AXIS 2
CHUCK SIZE 8"
BAR CAPACITY 2"
POWER 20 HP
MAX RPM 4,500 RPM
TURNING DIA 14.5"
TAILSTOCK YES
LIVE TOOLING NO
SUB SPINDLE NO
CONTROL CNC OKUMA OSP E100L
MAX TURNING DIAMETER 14.56
MAX TURNING LENGTH 20.47
MAX BAR CAPACITY 2.05
SWING OVER SLIDE 15.78
SWING OVER BED 21.65
DISTANCE BETWEEN CENTERS 22.29
TRAVEL:
X AXIS TRAVEL 10.23
Z AXIS TRAVEL 20.47
RAPID TRAVERSE X AXIS 787 IPM
RAPID TRAVERSE Z AXIS 984 IPM
SPINDLE NOSE A2-6
SPINDLE BORE 2.44
SPINDLE SPEED 4,500 RPM
SPINDLE MOTOR 20 HP
