2006 Doosan Puma MX2500ST CNC Lathe | LR 7611505
$39,900.00 USD
ConditionUsed
1 available

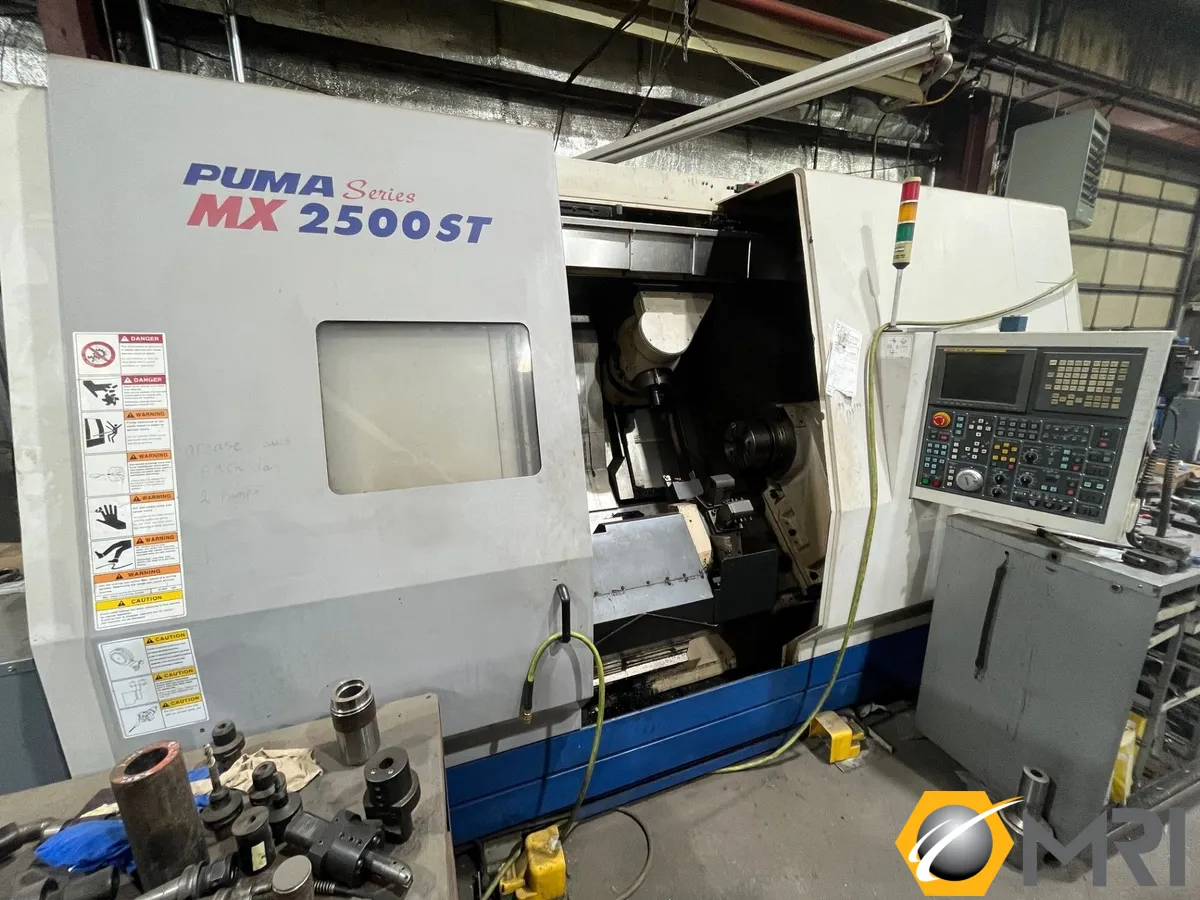

The Doosan Puma MX2500ST is a 9-axis CNC multi-tasking lathe that can perform both turning and milling operations. It features a sub-spindle, a Y-axis, a lower turret with live tooling, and a 40-station automatic tool changer (ATC), controlled by a Fanuc 18i-TB control system.
Fanuc 18i-tb cnc Control
10" Diameter Left & Right Chucks
B-axis Milling Spindle
12 Station Lower Turret With Live Milling
Sub-spindle
C-axis
Y-axis
40 Station Automatic Tool Changer
Chip Conveyor
Maximum Turning Diameter 21.25"
Maximum Turning Length 40.15"
Bar Working Diameter 2.99"
X-axis Travel 7.28"
Z-axis Travel 44.88"
Main Spindle Speed 3,500 Rpm
Spindle Nose A2-8
Spindle Bore Diameter 3.54"
Live Milling Speed 10,000 Rpm
B-axis Indexing 0.001 Deg
Tooling Shank Captco-c6
Main Spindle Motor 34 hp/29 Hp
Live Milling Motor 20 Hp
Approximate Dimensions 180" X 91"
Approximate Height 102.36"
Approximate Weight 27,500 Lbs
