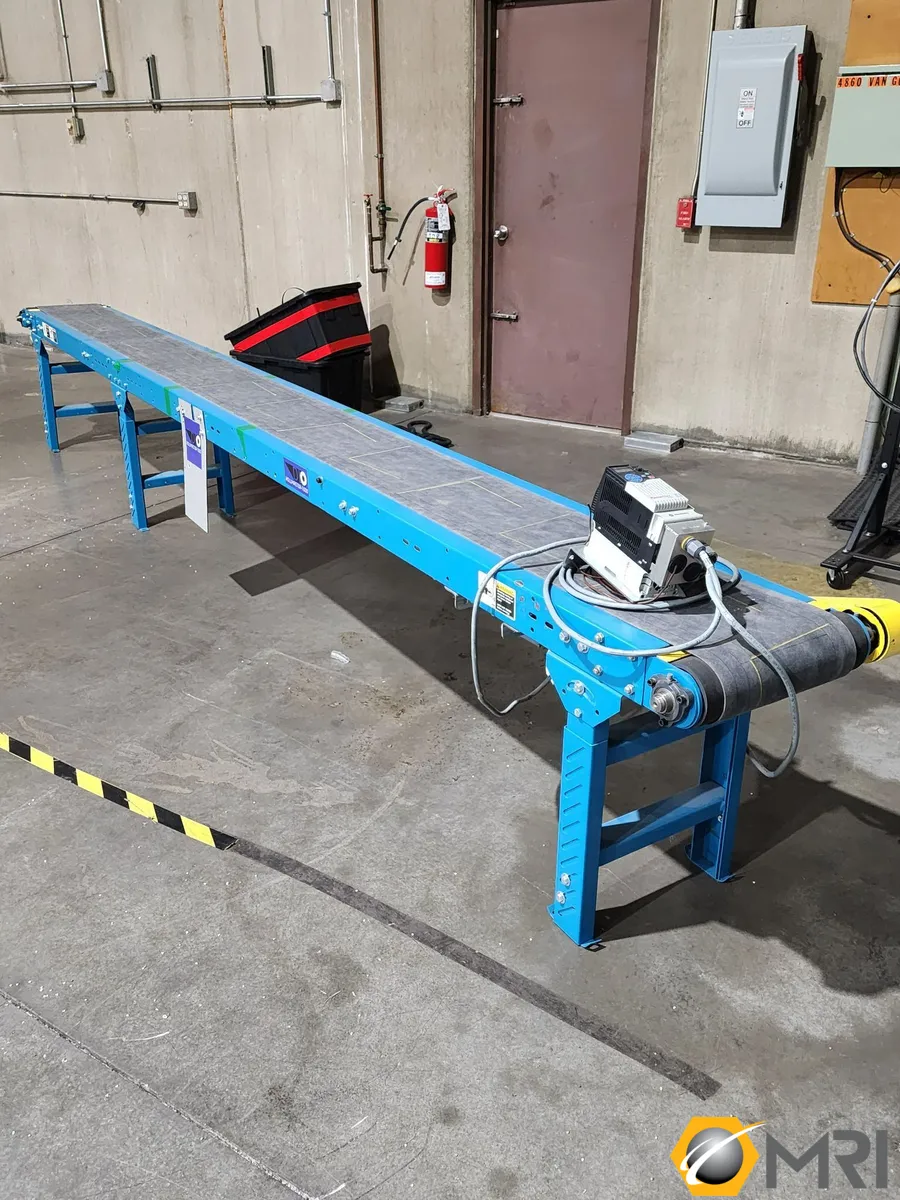

Ultimation horizontal belt conveyor, model USBS-12-16-VFD with Controller, New Nov 2022.
Like New condition. Ideal for efficient material handling. Experience reliable performance with this advanced belt conveyor system, enhancing operational workflow.. Like New Coniditon
Electrical controls – Variable speed drive for speed adjustment available
Unit is in near new condition
https://www.ultimationinc.com/replacement-parts/buy-belt-conveyors/belt-conveyor/
Features and dimensions of this particular belt conveyor Model # USBS100B-12-16:
16″ Overall width (from outside of frame to outside of frame)
12″ Moving conveyor belt width
16′ Overall length
Made in USA
Steel frame 4″ deep x 12 ga. powder coated steel
Paint color: Ultimation blue (other colors available with longer lead time)
End drive: located on discharge end of conveyor. Chain guard is on left hand side when standing at load end looking towards unload end
Motor: 1/2 HP 230/460V – 3 phase – 60 Hz totally enclosed fan cooled, energy efficient
Load capacity: Maximum load per linear foot is 75 pounds; do not exceed total load capacity shown in product load capacity chart
Belt: Black Trackmate 120 EMB (other styles available)
Drive pulley: 4″ diameter
Tail pulley: 4″ diameter with take up (4″ adjustment)
Belt speed: Constant Speed 65 FPM (Feet per Minute)
Legs/Floor supports included (27 3/4″ to 39 3/4″)
