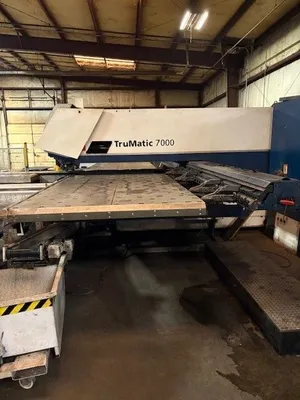

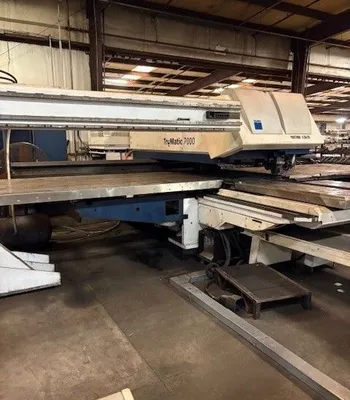

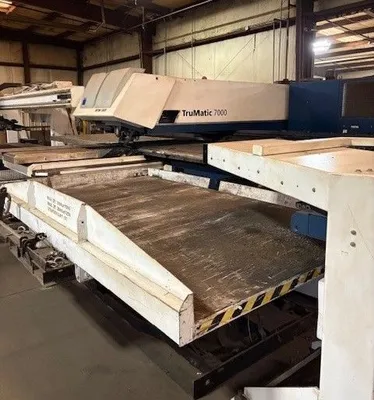

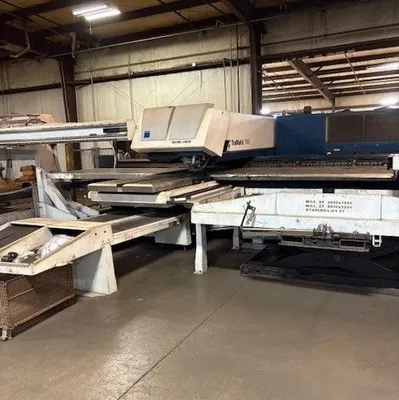

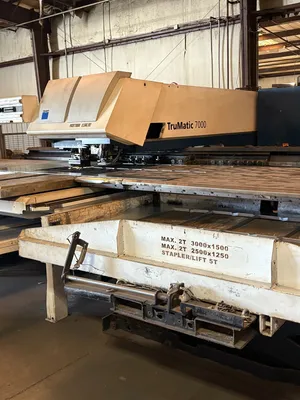

TRUMPF TRUMATIC 7000 LARGE FORMAT PUNCH/LASER COMBO WITH SHEETMASTER, NEW: 2012
ConditionUsed
1 available
TRUMPF TRUMATIC 7000 LARGE FORMAT PUNCH/LASER COMBO WITH SHEETMASTER, NEW: 2012
MAX. TONNAGE: 24
TABLE SIZE: 5' x 10'
WATTAGE: 4,000
BOSH CONTROL

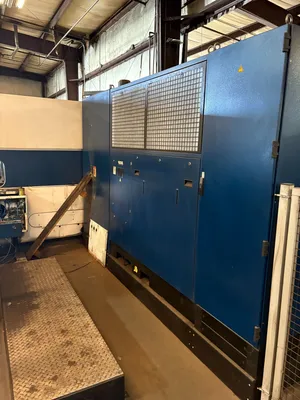

TRUMPF TRUFLOW 4000-WATT RESONATOR
BALL TRANSFER TABLE
MULTITOOL DRIVE
TAPPING DRIVE
REPOSITIONING CYLINDERS
AUTOMATIC SHUT DOWN
WARPED SHEET DETECTOR

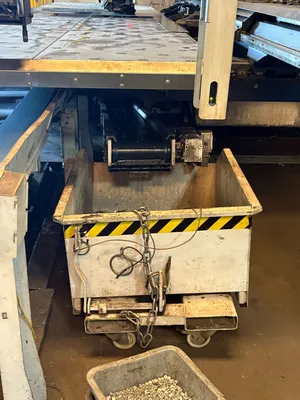

CHIP/SLUG CONVEYOR WITH BOX
MULTI-BEND FUNCTION
WHEEL TECHNOLOGY/DEBURRING
ACTIVE DIE
THIN SHEET PROCESS/PEELING DEVICE
PARALLEL TO PRODUCTION LIGHT CURTAINS

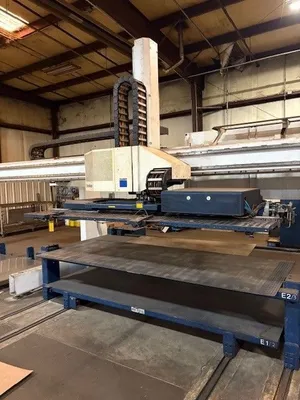

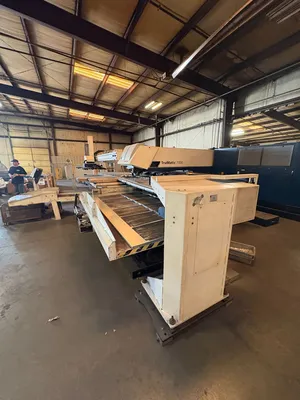

5' x 10' SHEETMASTER
1) LOAD CART
DUAL CARTS (2) UNLOADING W/LOAD
HOURS:
- MACHINE ON: 24,743
- BEAM ON: 3,818
PUNCH DATA:
- EFFECTIVE PUNCHING FORCE: 24 TONS
- WORKING RANGE:
-- X-AXIS: 120"
-- Y-AXIS: 61"
- MAX. SHEET THICKNESS: 0.315"
- MAX. WORKPIECE WEIGHT: 617 LBS.
- SPEEDS:
-- C-AXIS PUNCHING: 500 SPM
-- C-AXIS TAPPING: M2-M10
-- MAX. PUNCHING STROKE RATE (1 MM INCREMENTS): 1200 SPM
-- MAX. PUNCHING STROKE RATE (25 MM INCREMENTS): 540 SPM
-- MAX. MARKING STROKE RATE: 3,000 SPM
TOOLS:
- LINEAR MAGAZINE POSITIONS:
-- TOOLS: 22
-- CLAMPS: 3
- ROTATABILITY OF TOOLS: ALL TOOLS 360 DEG.
- TOOL SIZE FOR PUNCHING: ALL TOOLS 3"
- TOOL CHANGE TIME: 0.3 SECONDS
- POSITIONING ACCURACY: (+/-) 0.0012"
PART REMOVAL FLAP SIZE PUNCH AND LASER: 19.685" x 19.685"
LASER DATA:
- MAX. LASER OUTPUT: 4,000 WATTS
- LASER TYPE: CO2
- MAX. MATERIAL THICKNESS:
-- MILD STEEL: 0.315"
-- STAINLESS STEEL: 0.315"
-- ALUMINUM: 0.23"
SHEET MASTER:
