AMADA HG 1303 CNC PRESS BRAKE, NEW 2013

AMADA HG 1303 CNC PRESS BRAKE, NEW 2013

Sell Your AMADA HG 1303
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your AMADA HG 1303

Overview

Type:
BRAKES, PRESS, N/C & CNC
Manufacturer:
AMADA
Model:
HG 1303
Year:
2013
Stock #:
7611658
Status:
For Sale

Description

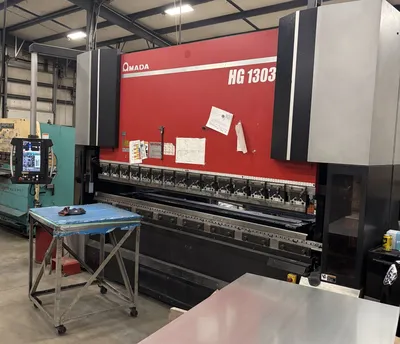

AMADA HG 1303 CNC PRESS BRAKE, NEW 2013
L-SHIFT

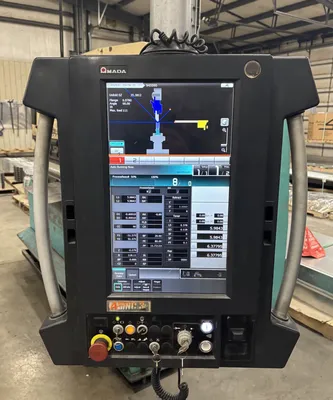

AMADA AMNC3i CONTROL
6-AXIS PROGRAMMABLE BACK-GAUGE
L-SHIFT
FOOT SWITCH

Tonnage146 T132.449 t
OA (Overall) Length122.4"3,109 mm
Between Housings106.3"2,700 mm
Stroke9.8"248.92 mm
Dimensions159"(L) x 95"(W) x 121"(H)159"(L) x 95"(W) x 121"(H)
Weight25,355 LBS25,355 LBS

TONNAGE: 146
MAX. BENDING LENGTH: 122.4"
DISTANCE BETWEEN FRAMES: 106.3"
STROKE LENGTH: 9.8"
OPEN HEIGHT: 20.5
THROAT DEPTH: 17.7"
TABLE HEIGHT: 37.4"
RAM REPEATABILITY: (+/-) 0.00004"
SPEEDS:
- APPROACH: 8.7 IPS
- BENDING: 0.79 IPS
- RETURN: 9.8 IPS
NUMBER OF CYLINDERS: 2
BACK-GAUGE RANGE: 27.5"
BACK-GAUGE SPEEDS:
- L-AXIS: 1,181 IPM
- Y-AXIS: 3,543 IPM
- Z-AXIS: 787 IPM
HYDRAULIC FLUID CAPACITY: 19 GALLONS
NOMINAL SUPPLY CURRENT: 44 A
PROVIDED POWER: 60 kVA
APPROX. WEIGHT: 25,355 LBS
APPROX. MACHINE DIMENSIONS: 159"(L) x 95"(W) x 121"(H)
