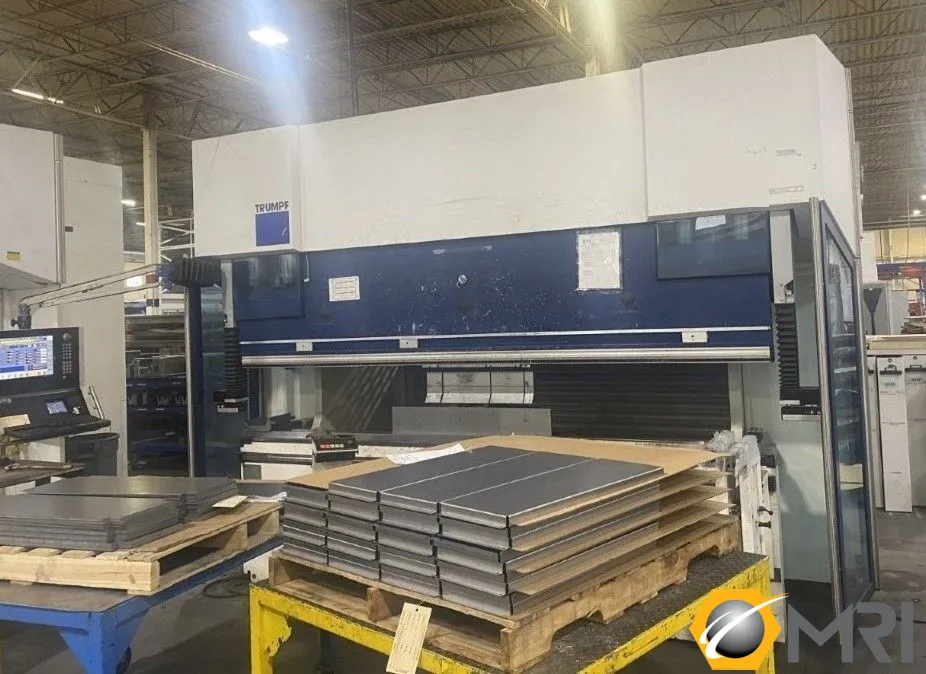

TRUMPF TRUBEND 5130X CNC PRESS BRAKE, NEW: 2007
ConditionUsed
1 available
TRUMPF TRUBEND 5130X CNC PRESS BRAKE, NEW: 2007
143 TONS
EXTENDED OPEN HEIGHT AND STROKE
105' OVERALL BEND LENGTH
6-AXIS PROGRAMMABLE BACK-GAUGE
TRUMPF TASC 6000 CNC CONTROL
3D GRAPHICS
6-AXIS BACK-GAUGE
EXTENDED STROKE
EXTENDED OPEN HEIGHT
CNC DIE SHIFT CROWNING
PNUEMATIC DIE SHIFT
PEDESTAL AND FOOT SWITCH
TONNAGE: 143 TONS
STROKE: 17.5"
OPEN HEIGHT: 24"
BENDING LENGTH: 120"
DISTANCE BETWEEN SIDE FRAMES: 106"
THROAT: 16"
TRAVEL IN X-AXIS: 23.6"
MAX DISTANCE IN X-AXIS: 33.5"
MAX SPEED OF X-AXIS: 1,200 IPM
TRAVEL R-AXIS: 9.8"
MAX SPEED OF R-AXIS: 710 IPM
MAX SPEED OF Z-AXIS: 1,900 IPM
Y RAPID SPEED: 472 IPM
Y OPERATING SPEED: 2TO 24 IPM
DRIVE MOTOR: 25 HP
DIMENSIONS: L: 144" x W: 87" x H: 94"
APPROX WEIGH: 24,800 LBS
