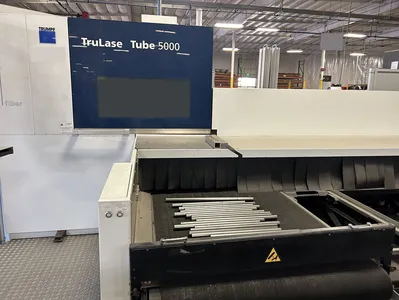

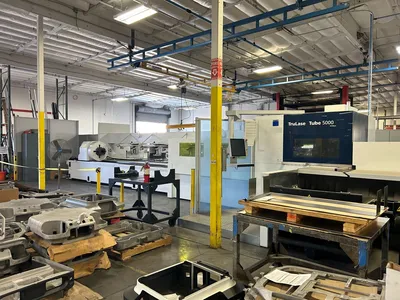

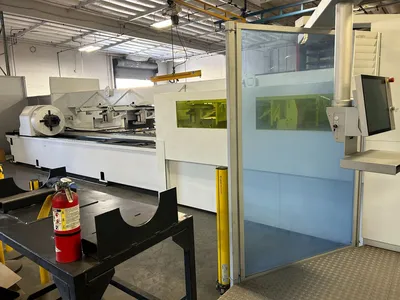

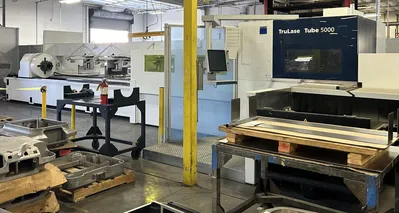

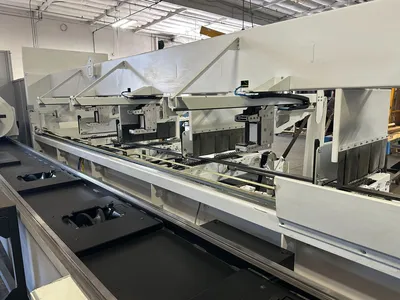

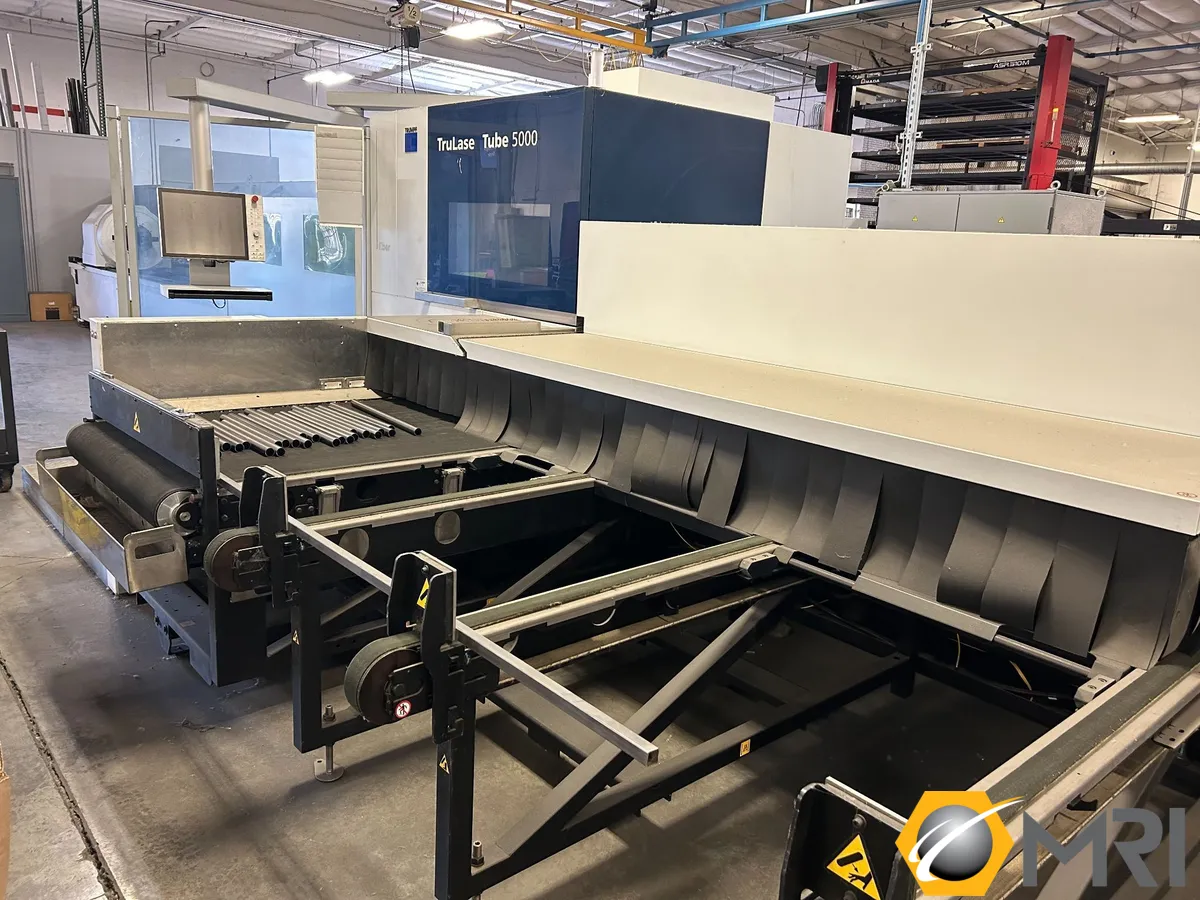

TRUMPF TUBE 5000 FIBER TUBE CUTTING LASER, NEW: 2021

MAX. LASER OUTPUT: 3,000 WATTS

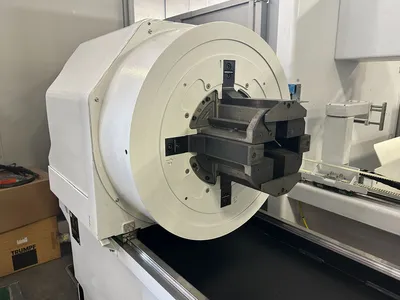

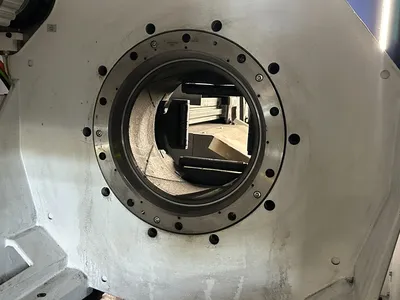

CHUCK SIZE: 6"
WORKING RANGE:
- X-AXIS: 312"
- ROTATION AXIS A1-(ROTATING CHUCK AND FEED UNIT): 360°
- ROTATION AXIS A2-(TUBE FEED GUIDE UNIT): 360°
MAXIMUM POSITIONING SPEEDS:
- X-AXIS(+): 6,693 IPM
- X-AXIS(-): 4,724 IPM
- Y-AXIS: 2,362 IPM
- Z-AXIS: 2,362 IPM
- A-AXIS (ROTATIONAL): 780°/SEC
ACCURACY:
- X, Y AND Z AXES:
-- SMALLEST PROGRAMMABLE INCREMENT: 0.0004”
-- POSITIONING ACCURACY (PA): (+/-) 0.008”
-- REPEATABILITY (PS): (+/-) 0.002”
- A-AXIS (ROTATIONAL):
-- SMALLEST PROGRAMMABLE INCREMENT: 0.001°
-- POSITIONING ACCURACY (PA): 0.015°
-- REPEATABILITY (PS): 0.005°
WORKPIECE PARAMETERS:
- MAX. TUBE CROSS SECTION: 6"
- MIN. ROUND, SQAURE AND RECTANGAL TUBE OD: 0.60" (0.46" ONLY WITH SEMI-AUTOMATIC LOADING FROM
THE CONVEYOR PATH)

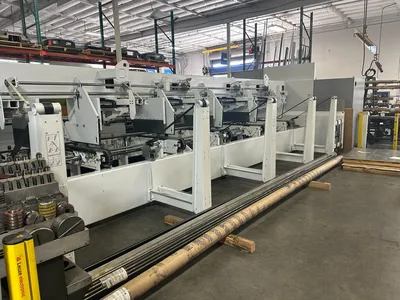

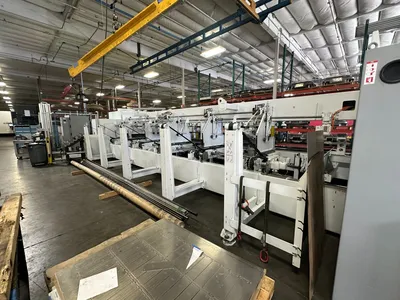

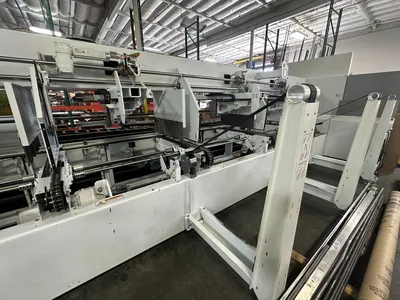

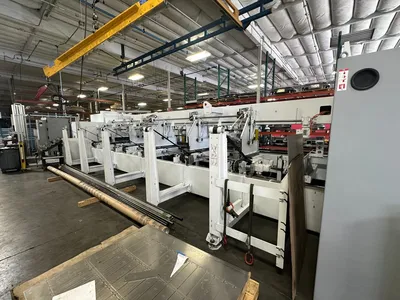

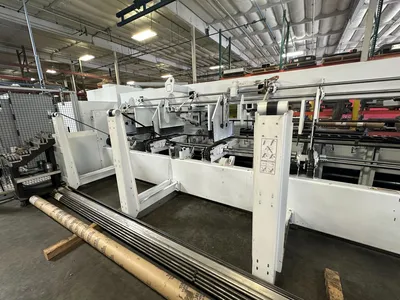

- MAX. RAW MATERIAL LENGTH FOR AUTOMATIC LOADING: 26.24'
- MAX. FINSISHED PART LENGTH FOR UNLOADING: 15'
- MAX. PATH WEIGHT (STANDARD/OPTIONAL): 55 LBS/3.3'
- MAX. RAW MATERIAL WEIGHT WITH AUTOMATIC LOADING: 440.9 LBS
- MIN. REMAINING TUBE LENGTH: 4.7"
MAX. MATERIAL THICKNESS:
- MILD STEEL (O2): 0.3"
- STAINLESS STEEL (N2): 0.2"
- ALUMINUM (N2): 0.16"
- COPPER (O2 OR N2): 0.16"
- BRASS (N2): 0.16"
