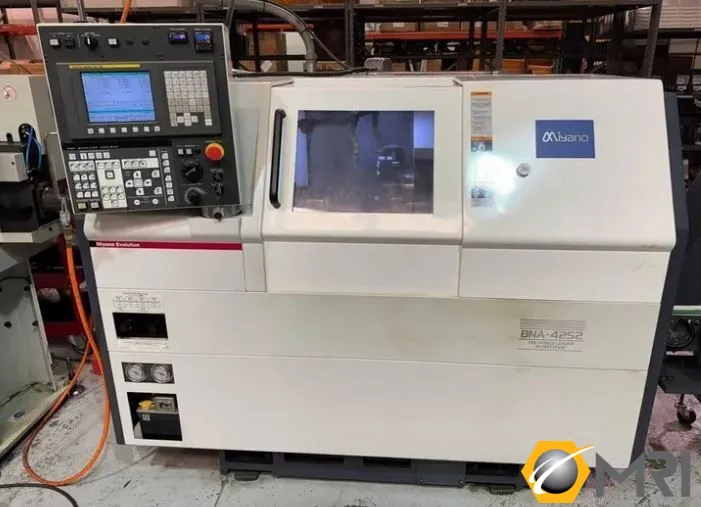

2016 MIYANO BNA42S 5 Axis CNC Lathe | IH 7611717

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an
inspection of the machine(s) and accessories prior to purchase.

General Specifications:

Machining capacity
Max. work length 100 mm
Max. machining diameter of bar work:
SP1 42 mm Dia.
P2 34 mm Dia.

Slide stroke
Turret slide stroke:
X1 axis 135 mm
Z1 axis 235 mm
Y1 axis ---

Spindle slide stroke
X2 axis -
Z2 axis ---
B axis 310 mm

Spindle
Number of spindle 2
Spindle speed range:
SP1 60- 6,000 min-1
SP2 50- 5,000 min-1

Inner diameter of draw tube
SP1 43 mm Dia.
SP2 30 mm Dia.

Collet chuck type
SP1 Hardinge S20, DIN173E, B&S#22D, JPN34, Hainbuch
SP2 DIN173E, B&S#22D, JPN

Power chuck type
SP1 5" thru-hole chuck
SP2 ---

Turret
Number of turret 1
Type of turret: HD1 8 ST.

Shank height of square turning tool: 20 mm Sq.
Diameter of drill shank: 25 mm Dia.

Revolving tools
Number of revolving tools: Max.8
Type of revolving tools: Single Clutch
Tool spindle speed range 50- 5,000 min-1
Feed rate
Rapid Feed rate X1 axis 20 m/ min
Z1 axis 20 m/ min
Y1 axis -
X2 axis -
Z2 axis --- 20 m/ min
-B_axis 20 m/ min

Motors
Spindle drive: SP1(Cs) 7.5/ 5.5 kw (15min./ cont)
SP2(Cs) 5.5/ 3.7 kw (15min./ cont)
Revolving tool drive: 2.8/ 1.0 kw
Coolant pump: 0.18 kw
High pressure coolant drive: 1.0/ 0.6 kw (60/ 50Hz)

Tank capacity
Hydraulic oil tank capacity :7L
Lubricating oil tank capacity: 2L
Coolant tank capacity: 165L

Power supply
Capacity 28 KVA 30KVA
Fuse 100 A
Air supply 0.5 MPa

Machine dimensions
Machine height 1,660 mm
Floor space W2,150 × D1,290 mm
Machine weight 2,800 (6100 lbs)
