2011 Citizen M20V CNC Swiss Lathe | AB 7611735

To the best of our knowledge all details listed below are deemed correct.
It is the buyers responsibility to confirm ALL details prior to purchase.

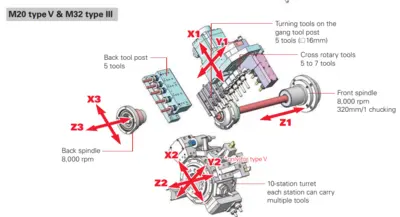

General Specifications from Citizen M(3)20 type V

CNC Control: Cincom M6B (Mitsubishi 635LCC)
Axes: X1,Y1,Z1,C1,X2,Z2,C2,X3,Z3 (misc Axes: TI, A1,A2,A3)
Max. Machining Diameter: 3/4" (20mm)
Max. Machining Length per chucking: 12.59" (320mm)
Main Spindle Speeds: 200 - 10,000 rpm
Rotary Tool Speeds: (turret & gang plate): 200 - 5000 rpm
Backworking: Max. Chucking Dia: 3/4" (20mm)
Max. Backwork Length: 5.70" (145mm)
Max. Drilling/Tapping: M8
Back Spindle Speeds: 200 - 8000 rpm
Tooling Set-up: Turret Tooling: 12 (24 in half index mode)
Gang-tool Tooling: 5 turning + 4 rotary
Back Working Tool Post: 3 (+ rear facing tools on turret)
Tool Sizes: Gang Tooling / Turret: 16 x 16 x 130mm / 16 x 16 x 90mm
Motors: Main Spindle Drive: 5 / 7.5 HP
Rotary Tool / Back Spindle Motors: 2 HP / 3HP
Weight & Dimensions (approx.): 6100 lbs / 110" x 50" x 72"h
