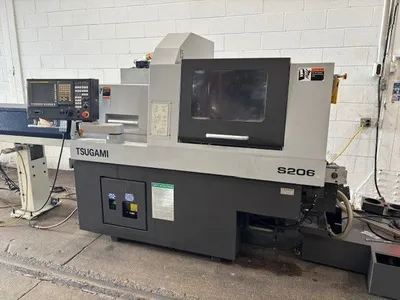

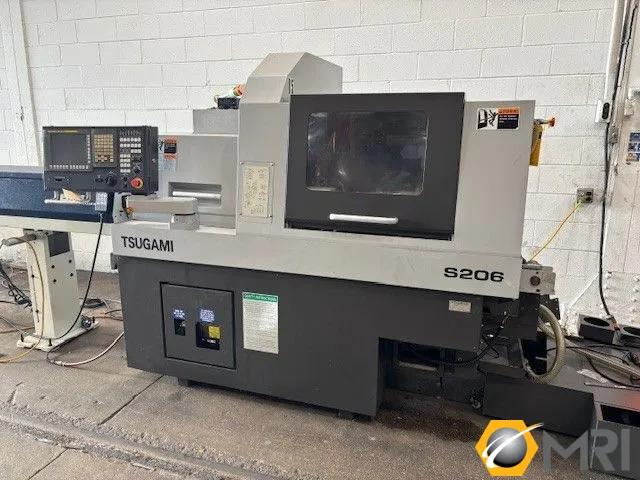

Tsugami S206 CNC Swiss Lathe New: 2011 | AB 7611754

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications from Brochure:

Control: Fanuc 31iTB
No. of Controllable Axes: 8
(X1, Z1, Y1, X2, Y2, Z2, C1, C2)
Max Bar Diameter: 20mm (3/4")
Max Machining Length: 210mm (Direct Drive Rotary GB)
250 (Static Guide Bushing)
80mm (Carrier Type Rotary GB)
45mm Bushingless
Max Drilling Diameter: 10mm
Max Tapping Diameter: M8
Deep Hole Drilling Diameter: 8mm
Max Back Spindle Chucking diameter: 20mm
Max Back Spindle Drilling Diameter: 8mm
Max Back Spindle Tapping Diameter: M6
Max Tool Spindle Drilling Diameter: 6mm (front tool post/back tool post)
8mm (rear tool post)
Max Tool Spindle Slotting Diam: 30mm (T1)
Main Spindle Speed: 200 - 12000 rpm
Back Spindle Speed: 200 - 12000 rpm
Rotary Guide Bushing: 200 - 8000 (carrier type)
200 - 12000 (direct drive type)
Tool Spindle Speed: 200 - 8000 rpm
Tool Storage Capacity (std/max): 24 pcs / 35 pcs
Tool Size: 12 x 12 x 100 mm
Rapid Traverse rate: 32 m/min
(X1, Y1: 24 m/min)
(Y2: 15 m/min)
Main Spindle: 2.2 / 3.7 kW
Back Spindle: 1.5 / 2.2 kW
Tool Spindle: 0.75 / 1.1 kW (Front tool post)
1.0 kw (rear tool post)
X1-X2-Z1-Z2-Y2 Axes 0.5 kw
Y1 axis: 0.75 kW
Lubricating Pump: 3 W
Power Source Requirements: 14.3 kVA
Compressed Air Requirement: 0.4 MPa or above
Air Discharge rate: 40 NL/min

Machine Weight (approx): 3200 kg (7055 lbs)
Machine Dimensions (approx): 2110 x 1200 x 1885 mm (83" x 47" x 74")
