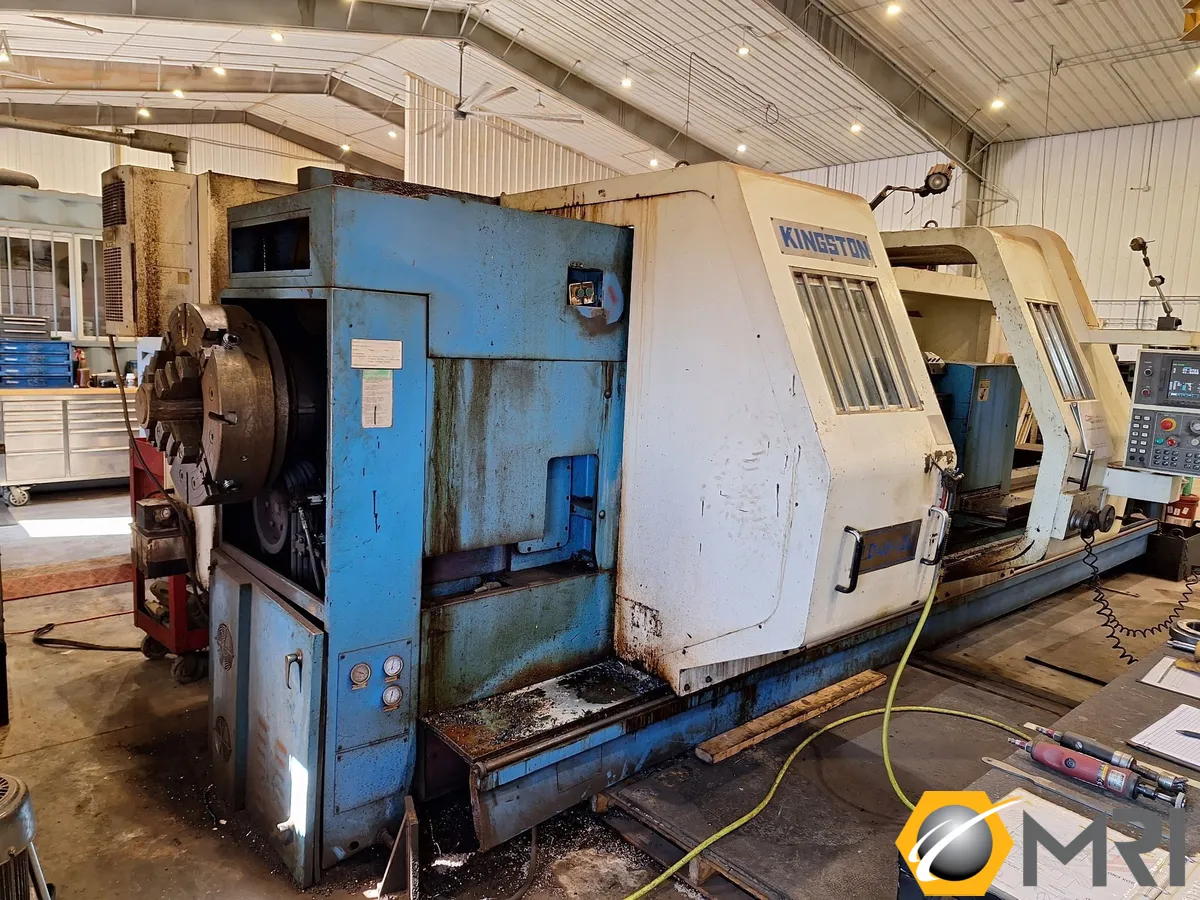

REAR 4 JAW CHUCK
CHIP AUGER
8 STATION TURRET
| Swing | 45" | 1,143 mm |
| Machining Length | 120" | 3,048 mm |
| # Axis | 2 | 2 |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 6" | 152.4 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 1,000 RPM | 1,000 RPM |
| Turning Dia | 27.5" | 698.5 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (CNC FANUC) | CNC (CNC FANUC) |
| Dimensions | 119" x 269" x 88.7" | 119" x 269" x 88.7" |
| Weight | 34000 | 34000 |
Swing Over Bed 45″|
Maximum Cutting Diameter 27.5″
Distance Between Centers 120″
Width of Bed 28.5″
Spindle Bore 6″
Spindle Motor 50 hp. / 60 hp. (30 min)
Type of Spindle Nose A2-15
Speed Ranges (2-Speed) 4 – 1,000 rpm
Turret (V8 Hydraulic) 8 Stations
Maximum Stroke (X-Axis) 22.0″
Maximum Stroke (Z-Axis) 120.0”
Rapid Traverse (X&Z Axis) 236 in/min
Servo Motors (X-Axis) 5.3 hp.
(Z-Axis) 8.0 hp.
Ball Screw Size (X-Axis) 1.41”, P6
