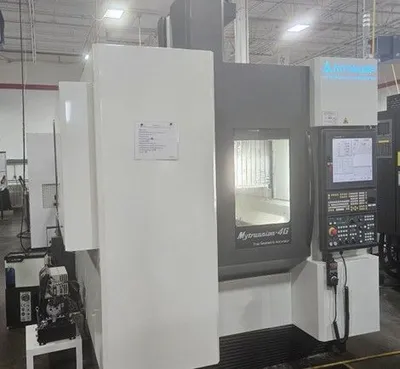

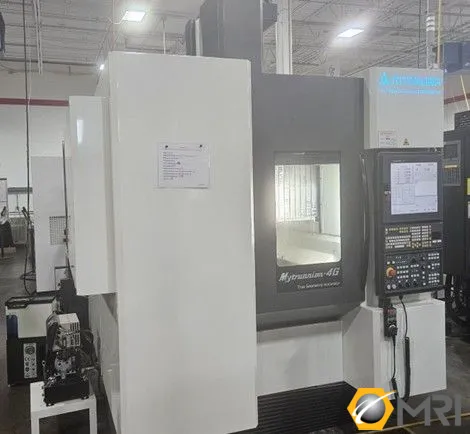

2018 KITAMURA MYTRUNNION-4G VERTICAL MACHINING CENTER | JS 7611781
ConditionUsed
1 available
KITAMAURA MYTRUNNION-4G, 2018 model, used 5-axis vertical machining center. Ideal for precision machining tasks. Increase your production capabilities with this efficient and versatile equipment.
STANDARD FEATURES:
CONTACT SURFACES ARE EXTENSIVELY HAND SCRAPED
67 MILLION PULSE ENCODER FEEDBACK SYSTEM
HIGHEST GRADE MEEHANITE CAST IRON CONSTRUCTION
MANUAL PULSE GENERATOR, SEPARATE
PLUMBED AND READY FOR COOLANT THRU SPINDLE - ADDED IN FIELD
ADVANCED 5-AXIS NC SIMULATION & VERIFICATION SOLUTIONS (1- YEAR SUBSCRIPTION)
COMPACT SIZE SAVES ON FLOOR SPACE
ANYWHERE-REMOTE (E-MAIL STATUS UPDATES)
15,000MIN- DIRECT DRIVE, DUAL CONTACT SPINDLE
SSS (SUPER SMOOTH SURFACE) CONTROL
FASTEST RAPID FEED RATES IN ITS CLASS - 50M/'MIN (1,969IPM)
*UP TO 8190 BLOCK LOOK-AHEAD
*UP TO 270M/MIN FEED WITH 1MM/BLOCK, 4,500 BLOCKS/SEC
60-TOOL STANDARD ATC
BALLSCREW COOLING SYSTEM IN X, Y AND Z AXIS
HIGH SPEED, HIGH ACCURACY CONTROL
BASE WASH COOLANT
1280 METERS MEMORY (0.5MB)
SCRAPER TYPE CHIP CONVEYOR WITH 100MICRON FILTRATION
DATA SERVER 16GB
4TH & 5TH AXES CLAMPING MECHANISM
USB MEMORY INTERFACE
5 AXES SIMULTANEOUS CONTROL

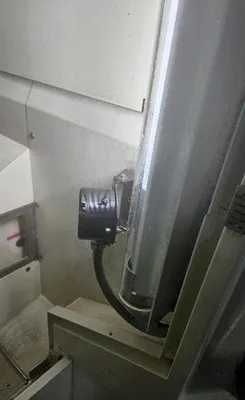

RENISHAW NC4 LASER
OMP40 PROBE
220 PSI MEDIUM PRESSURE COOLANT THROUGH SPINDLE
INTERNAL AND EXTERNAL AIR BLOW
TSUNAMI AIR FILTER
5TH AXIS WORK HOLDING
X-AXIS 24"
Y-AXIS 24"
Z-AXIS 19.7"
SPINDLE SPEED 15,000 RPM
TOOL CAPACITY (ATC) 100
MAIN SPINDLE MOTOR 15 HP
SPINDLE TAPER HSK 63
5 AXIS PROGRAMMABLE AXIS'S FULL 5 AXIS'S CONTOURING

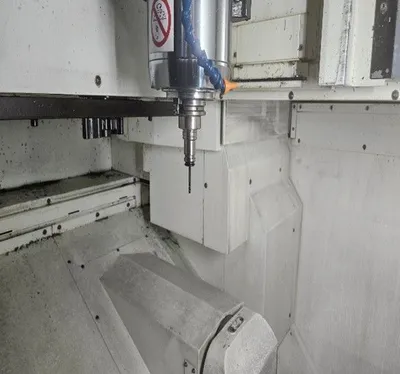

TABLE TYPE A-AXIS TRUNNION TILT RANGE -120° TO +30°
COOLANT THRU HIGH PRESSURE YES
HI PRESSURE COOLANT SYSTEM 1000 PSI
RAPID TRAVERSE RATES 1969 IPM
CHIP CONVEYOR YES

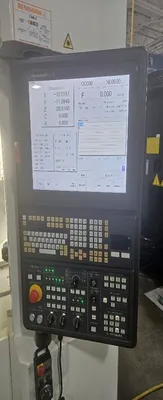

CONTROL CNC
C-AXIS (ROTATION) TRAVEL 0° TO 360° FULL 5TH AXIS
CUTTING FEED RATE 945 IPM

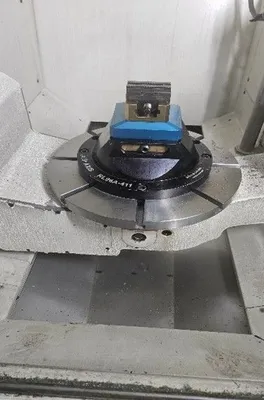

PLATTER DIAMETER 15.7"
TABLE LOAD CAPACITY 440 LB
