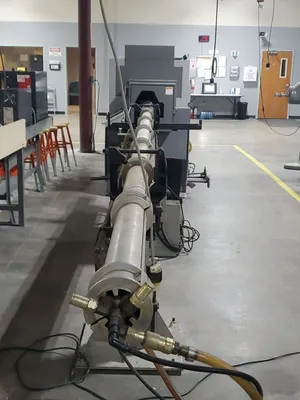

Citizen A20VI CNC Swiss Lathe, New in 2008 | IH

General Specifications for Citizen A20VI (1F6PL)
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

Control: Fanuc 32iA
Maximum machining diameter (D): 20 mm (8.12")
Maximum machining length (L): 165 mm (6 1/2")/1 chucking
Main spindle speed: 8,000 rpm
Spindle speed of gang rotary tool : max 8,000 rpm (rating: 6,000 rpm)
Back Spindle
- Max chuck diameter: 20mm
- Max length of product extractable: 80mm)
- Back spindle speed: 8,000 rpm

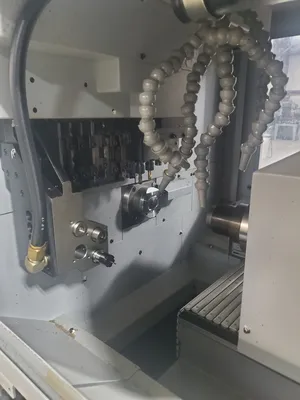

Number of tools to be mounted: 17
- Turning tools on gang tool post 7
- Rotary tools for cross machining: 3
- Tools for front drilling: 4
- Tools for back drilling: 4
Tool size
- Tool (gang tool post): 1/2"
- Sleeve: 1" (25.4mm)
Chuck and bushings
- Main back spindle collet chuck: TF25
- Rotary tool, drill sleeve collets ER16
- Guide bushing: TD25NS
Motors
- For main spindle: 2.2/3.7KW
- For back spindle: 1.1/1.5KW
Input power capacity: 6KVA
Dimensions (approx): 7'x 3.5'x 5.75'
Weight (approx): 5000 lbs
