Tsugami SS327-III-5AX CNC Swiss Lathe, new in 2020 | AB 7611785

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:
Axes: 9 (X1, Y1, Z1, C1, B, X2, Y2, Z2, C2)
Bar stock Diameter: 8 - 32mm
Max. Machining Length: 320 mm (Direct Drive Rot Guide Bushing)
70 mm (Guide Bushing-less Kit - OP)
Main Spindle Drilling Diameter: 12mm
Main Spindle Tapping Diameter: M10
Back Spindle Chucking Diameter: 32mm
Max Back Spindle Drilling Diameter: 8mm
Max Back Spindle Tapping Diameter: M6
Max Cross Drilling Diameter: 8mm
Max Cross tapping Diameter: M6
B Axis Tool Spindle
Max Drilling Diameter: 8mm
Max Tapping Diameter: M6
Max Spindle Speed: 5000 rpm
Machine
Main Spindle Speed: 200 - 8000 rpm
Back Spindle Speed: 200 - 8000 rpm
Tool Storage Capacity: 38
Live Tool Positions: 16/17 (std/max)
Tool Size: 16mm x 100 mm
Rapid Traverse Rate: 32 m/min (X1, Y1, Y2: 24 m/min)
Tooling:
Live Tools Gang Plate: 4
Turning Tools on Gang Plate: 8
ID/BW positions on Gang Plate: 5 Can accommodate 2 sided sleeves)
Live tools on B-Axis: 8 (4 front + 4 back)
Fixed BW Positions: 4
Live Back Working Positions: 4
Live Cross Back Working Positions: 2
Motors
Main Spindle: 3.7 / 5.5 kW
Back Spindle: 2.2/3.7 kW
Cross Drill of Front Tool: 1.0 kW
B-Axis: 1.0 kW
Power Source Requirement: 21 KVA
Weight: 3600 kg
8000 lbs
Dimensions: 2150 x 1280 x 2010mm
85" x 51" x 80"

Ultimate Swiss Turn for Complex-Shaped Parts

The Tsugami SS327-5AX Swiss Type Lathe is a high performance automatic lathe
with a servo-driven B-axis, which enables you to cut complex parts complete in
a single setup. The B-axis contains live tools (four front, four rear) which
can machine in coordination with the C-axis, delivering the ability to cut
precise angles and sculpted contours. The B-axis functionality transforms this
Swiss type lathe into a multitasking turning center that can drill, tap, and
end mill any angle.

The modular tool zone makes it easy to change cartridge-type live cross and
face tools in either the main or sub spindle, decreasing changeover time.
Multiple angle cuts by the same tool also decreases the total number of tools
required. For machining complex shapes, this is the ultimate Swiss type lathe.

Key Advantages include:
7-axis Machining, Simultaneous 4 & 5-axis Machining with CAD/CAM
Servo-driven B-axis Tool Spindle can machine virtually any angle -
drilling, tapping, end milling
B-axis Live Tools (four front, four rear) create sculpted shapes
B-axis Control enables thread whirling or hobbing without dedicated
attachments
Mutual Tool Use for Different Angles via B-Axis Control
Modular Tool Zone, cartridge type live cross and face tools, main and sub
spindle

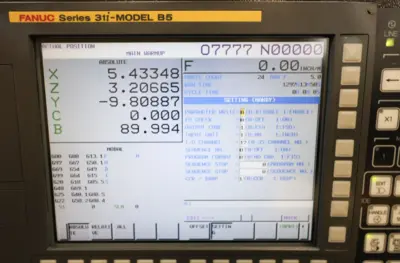

Fanuc 31i-B5

The Tsugami SS327-5AX CNC Lathe is CONVERTIBLE and may be run as a traditional
sliding headstock Swiss Type Lathe using the guide bushing or run without the
guide bushing with the addition of an optional chucker kit. When run as a
chucker, the lathe can use drawn bar stock instead of centerless ground stock,
dramatically reducing remnant size and increasing shop flexibility.

Machine: 83" x 60" x 83" 7,716 lbs
Bar Feed: 216" x 30" x 48" 2,500 lbs
High Pressure Coolant: 43" x 25" x 39" 510 lbs
