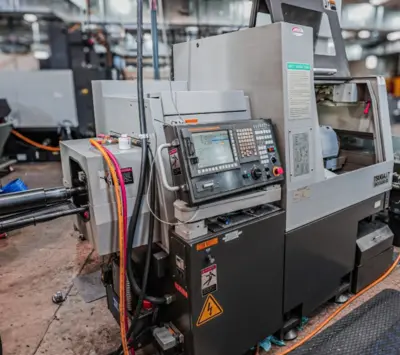

Tsugami B0326-II 8-axis CNC Swiss Lathe, New in 2013 | IH 7611786

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

Specifications:
Max. Chucking Barstock Diameter ø32 mm (1.26 in.)
Max. Machining Length: 320 mm (12.6 in.) (Direct-Drive Guide Bush)
70 mm (2.76 in.) (Guide Bushless)
Max. Drilling Diameter: ø10 mm (.39 in.)
Max. Tapping Diameter: M10
Max. Back Spindle Chucking Barstock Diameter: ø32 mm (1.26 in.)
Max. Back Spindle Drilling Diameter :ø10 mm (.39 in.)
Max. Back Spindle Tapping Diameter: M8
Max. Tool Spindle Drilling Diameter: ø10 mm (.39 in.)
Max. Tool Spindle Tapping Diameter; M8
Max. Tool Spindle Slotting Cutter Diameter: ø45 mm (1.77 in.)

Main Spindle Speed: 200 to 8,000 min-1
Back Spindle Speed: 200 to 10,000 min-1
Tool Spindle Speed: 200 to 6,000 min-1
Total Tool Number: (Standard Spec.) 34
Tool Size: .625 in. x 3.94 in. (square) / 25 mm (round)
Rapid Traverse Rate: 32 m/min (105 ft/min) [(X1, Y1, Y2: 24 m/min (78.74 ft/min)]
Spindle Index: C1 Axis and C2 Axis

Main Spindle: 3.7/5.5 kW (5HP / 7HP)
Back Spindle: 2.2/3.7 kW (3HP / 5HP)
Cross Drill of Front Tool Post: 1.0 kW
Cross Drill of Rear Tool Post Drive: 1.0 kW (Option)
Rotary Tool of Back Tool Post: 1.0 kW (B0325B-II Option)
Rotary Guide Bushing: 1.5/3.0 kW
Z1, Y1, X2, Z2: .75 kW
X1, Y2: .5 kW
Coolant Pump: .4 kW
Lubricating Pump: 3 W

Compressed air requirement .4 MPa or more
Air discharge rate 40 NL/min
Power Source Requirements: 21.4 KVA
Coolant Tank Capacity: 180 L

Machine Dimensions: 84.65 in. x 50.39 in. x 75.98 in.
Machine Weight: 7716 lbs.
