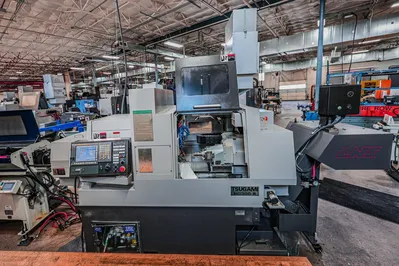

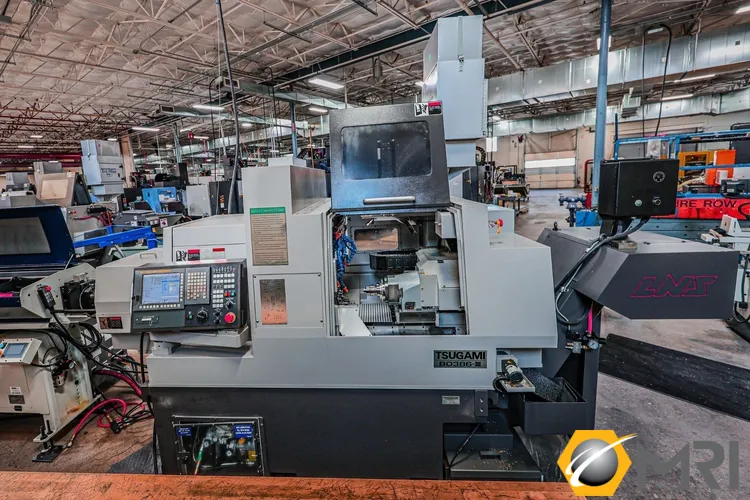

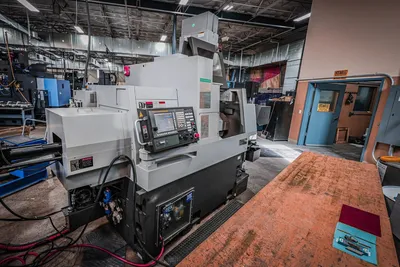

2021 TSUGAMI BO386-III CNC SWISS LATHE | IH 7611787

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

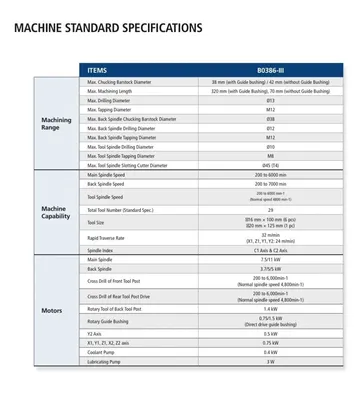

General Specifications:
Max. Chucking Barstock Diameter: 38 mm (1.5")
Max. Machining Length: 320 mm(12.5") (with Guide Bushing), 70 mm (2.7") (without Guide Bushing)
Max. Drilling Diameter: Ø13
Max. Tapping Diameter: M12
Max. Back Spindle Chucking Barstock Diameter: Ø38
Max. Back Spindle Drilling Diameter: Ø12
Max. Back Spindle Tapping Diameter: M12
Max. Tool Spindle Drilling Diameter: Ø10
Max. Tool Spindle Tapping Diameter: M8
Max. Tool Spindle Slotting Cutter Diameter: Ø45 (T4)

Machine Capability
Main Spindle Speed: 200 to 6000 min
Back Spindle Speed: 200 to 7000 min
Tool Spindle Speed: 200 to 6000 min-1
(Normal speed 4800 min-1)

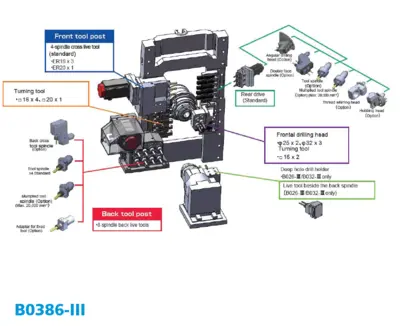

Total Tool Number (Standard Spec.): 29
Tool Size: 16 mm × 100 mm (6 pcs)
20 mm × 125 mm (1 pc)
Rapid Traverse Rate: 32 m/min
(X1, Z1, Y1, Y2: 24 m/min)
Spindle Index: C1 Axis & C2 Axis

Motors
Main Spindle: 7.5/11 kW (10HP/14hp)
Back Spindle: 3.7/5/5 kW (5hp / 7hp)
Cross Drill of Front Tool Post: 200 to 6,000min-1
(Normal spindle speed 4,800min-1)
Cross Drill of Rear Tool Post Drive: 200 to 6,000min-1
(Normal spindle speed 4,800min-1)
Rotary Tool of Back Tool Post: 1.4 kW
Rotary Guide Bushing: 0.75/1.5 kW
(Direct drive guide bushing)
Y2 Axis: 0.5 kW
X1, Y1, Z1, X2, Z2 axis: 0.75 kW
Coolant Pump: 0.4 kW
Lubricating Pump: 3 W

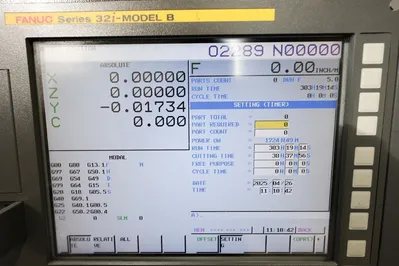

**ONLY 303 HOURS!**
