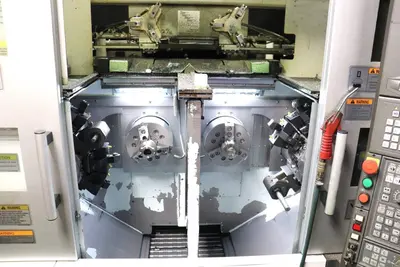

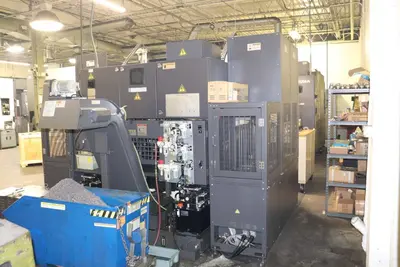

OKUMA 2SP-150HM CNC LATHES(TURNING CENTERS) FULL C-AXIS MILLING NEW:2018 | AG 7611795

2-AXIS, TWIN PARALLEL SPINDLE LATHE WITH STD. BORE SPINDLE
MAX RECOMMENDED TURNING DIAMETER: 5.91” [8.66” IN MANUAL HANDLING]
MAX TURNING LENGTH: 3.15” [5.91” IN MANUAL HANDLING]
X-AXIS TRAVEL: 5.91”
Z-AXIS TRAVEL: 6.10”
RAPID TRAVELS IPM: X (945); Z (945)
TURNING SPINDLES (LEFT AND RIGHT)
STANDARD BORE CONFIGURATION INCLUDED
SPINDLE NOSE 140MM FLAT
50-4500 RPM RANGE
14.75/10 HP, 67.9/46.4 FT-LBS TORQUE, 30 MIN/CONTINUOUS
SPINDLE BEARING ID 3.15”, SPINDLE BORE 1.65”
FLOOR SPACE (W X D X H): 96.5” X 85” X 102” (WITHOUT REAR DISCHARGE CHIP CONVEYOR, OPTIONAL)
WEIGHT: 11,023 LBS. (INCLUDES LOADER)

TURRET:
(2) 12 STATION TURRET, RADIAL TYPEINCLUDED
NON-LIFT HYDRAULIC TURRET CLAMPING, 562 LBF CLAMPING FORCE
6.26” CURVIC COUPLING
0.19 SECONDS PER INDEX
THROUGH THE TURRET COOLANT
MILL / DRILL / TAP WITH M SPINDLE TURRET INCLUDED
MILLING SPEED RANGE IS 100 – 6,000 RPM
DRILLING / BORING / MILLING
TIMING GREARS PERMIT RE-TAPPING
FLEX CYCLES FOR END FACE AND OD CUTTING
MAX POWER: 2.7 KW (3.60 HP)
MAX TORQUE: 12 N-M (8.8 LBF-FT)
OGL-3 LOADER SPECIFICATIONS
PREP FOR OGL-3 LOADERINCLUDED
AUTO MOON ROOF
WORK PIECE TURN OVER DEVICE
ENCLOSURE FOR LOADER

OGL-3 LOADER SPECIFICATIONS:
MAX WORKPIECE SIZE: 5.91” DIA X 3.15 LONG
MAX LOAD: 6.6 LBS.
3-AXIS SERVO DRIVE FEEDRATES:X (5,904 IPM), Y (4,728 IPM), Z (2,160 IPM)
GRIPPER JAW STROKE: 1.16” DIAMETER FOR 3-JAW CHUCK, (2) HANDS
OGL-3 GANTRY LOADER KIT AINCLUDED
GANTRY RAIL, SINGLE CARRIER AND DOUBLE HANDED GRIPPER
(1) WORK TABLE WITH 16 STATIONS, DOUBLE LIFT AND (3) POLE GUIDES (TABLE USED FOR ROUGH AND FINISHED WORK PIECES)
TABLE LOCATED ON RIGHT SIDE OF MACHINE
GANTRY ENCLOSURE
OGL-3 GANTRY LOADER KIT C (16 STATION, 2-LIFT)17,700
ADDS A SECOND WORK TABLE TO KIT F. (ONE TABLE FOR ROUGH MATERIAL, THE SECOND TABLE USED FOR FINISHED WORK PIECES)
TABLES LOCATED ON LEFT AND RIGHT SIDES OF MACHINE
ONE CARRIER, ONE TURN-OVER STATION AND 2 STACKERS
