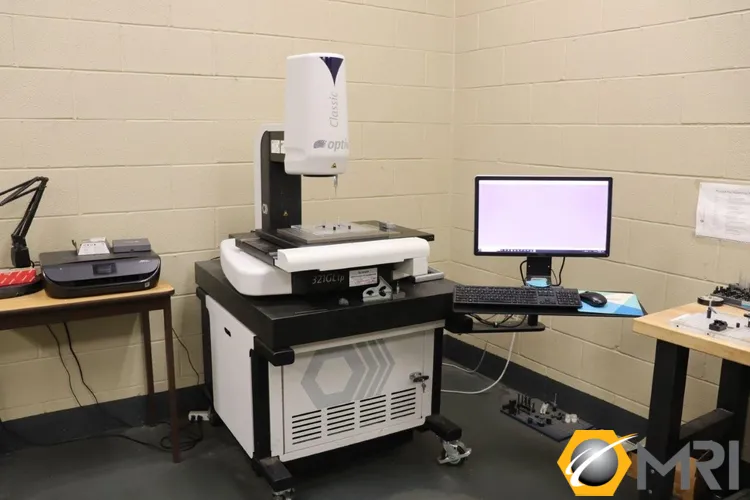

HEXAGON OPTIV CLASSIC 321 GL TP COORDINATE MEASURING MACHINE NEW: 2009 | AG 7611797
ConditionUsed
1 available
HEXAGON OPTIV CLASSIC 321 GL TP Coordinate Measuring Machine, 2009 model, used condition. Ideal for precision measurement tasks, this machine offers advanced capabilities from a trusted manufacturer.
EQUIPMENT OF THE HEXAGON MEASURING MACHINE:
- 3 AXES MICROPROCESSOR CNC WITH VECTOR PATH CONTROL
- METROLOGY SOFTWARE: PC-DMIS VISION
- VISION SENSOR FOR NON-CONTACT MEASUREMENT OF THE SMALLEST AND MOST PRECISE
COMPONENTS
- MODULAR PROBE CHANGER: TESASTAR-PR TP 20
- LINEAR GUIDES IN ALL AXES
- COAXIAL LED TOP LIGHT (WHITE LED)
FEED RATE IN THE X/Y/Z AXIS: 230/200/150 MM
MAXIMUM FEED SPEED IN THE X,Y,Z AXIS: 160 MM/S
MAXIMUM WORKPIECE WEIGHT: 20 KG
MEASURING SYSTEM: INCREMENTAL, OPTOELECTRONIC LENGTH MEASURING SYSTEM
MEASUREMENT RESOLUTION: 0.05 µM
MEASUREMENT ACCURACY IN X,Y AXIS (OPTICAL SENSOR): EX, EY = (1.6 + L/250) µM
MEASUREMENT ACCURACY IN XY AXIS (OPTICAL SENSOR): EXY = (2.0 + L/250) µM
MEASUREMENT ACCURACY IN X,Y AXIS (TOUCH-TRIGGER PROBE): EX, EY = (2.0 + L/250) µM
MEASUREMENT ACCURACY IN XY AXIS (TOUCH-TRIGGER PROBE): EXY = (2.5 + L/250) µM
MEASUREMENT ACCURACY IN Z AXIS (TOUCH-TRIGGER PROBE): EZ = (2.9 + L/200) µM
FIELD OF VIEW WITH STANDARD LENS: FROM 1.13 X 0.85 MM TO 6.4 X 4.8 MM
MAXIMUM M5551405 POWER CONSUMPTION: 120 M5551405 W
PERMISSIBLE AMBIENT TEMPERATURE GRADIENT: 0.8 °C/H, 1.0 °C/D, 0.6 °C/M
AMBIENT TEMPERATURE: 20 °C ± 1 °C
POWER SUPPLY: 110-240 ± 10 % V; 50/60 HZ
DIMENSIONS (L X W X H): 705 X 986 X 890 MM
WEIGHT OF MACHINE: 170 KG
