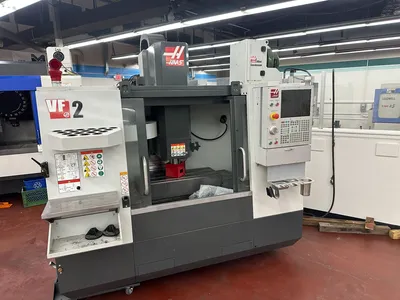

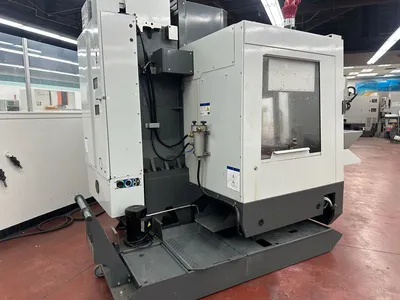

2022 Haas VF-2 Vertical Machining Center | LR 7611800
ConditionUsed
1 available
2022 HAAS VF-2 Vertical Machining Center: 30" x 16" x 20" travel, 30 hp, 8,100 RPM, CT/BT 40 taper, 20-tool ATC, 14" x 36" table. Available now for enhanced precision and productivity tasks.
WIPS-R- Intuitive Probing, Renishaw
Haas Window Blast
WiFi Connection for Haas Control
Low Voltage Transformer
Chip Auger
X-Axis: 30"
Y-Axis: 16"
Z-Axis: 20"
Spindle Nose to Table (Min.- Max.): 4" 24"
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Table:
Length: 36.0"
Width: 14.0"
Number of Std T-Slots: 3
T-Slot Width: 5/8"
Max Weight on Table: 3000 lbs

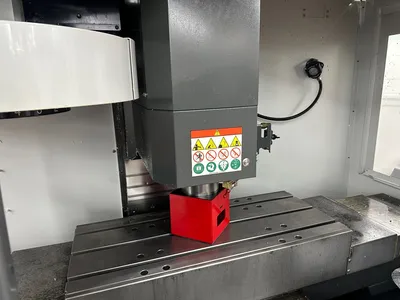

Spindle:
Taper Size: CAT-40
Speed Range: 10,000 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90 ft-lb @ 2000 RPM
Automatic Tool Changer:
Capacity: 20 Station Carousel Type
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5"
Tool Changing Time: 4.2 Seconds
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 101" x 99" x 101" High
Machine Weight: 7800 lbs
