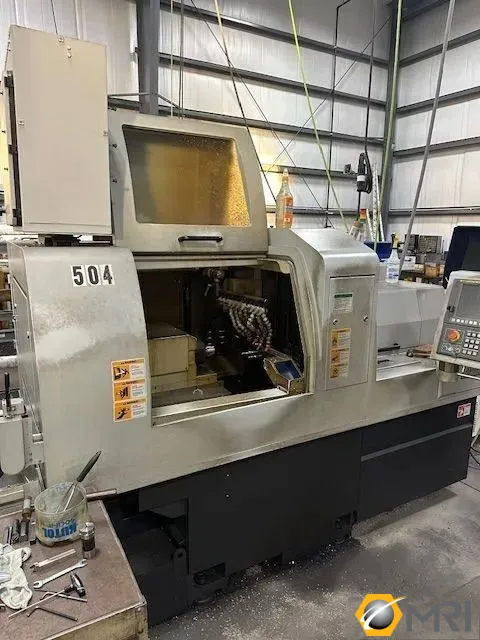

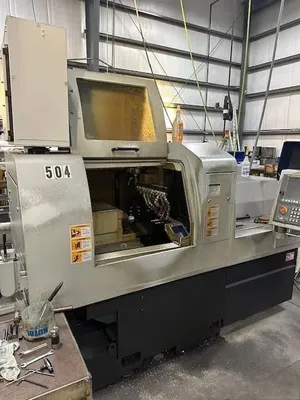

2018 HANWHA XD32II SWISS LATHE | IH 7611834

CAPACITY 38 mm (1.5")
POWER 5.5 kW
RPM 6,500 RPM
# AXIS 5
Max. machining diameter (mm) Ø32/38 (1.3"/1.5")
Z1 Stroke (mm) 320/80 (13"/3.1")
Main spindle Speed (RPM) 6,500
Motor (kW) 5.5/7.5

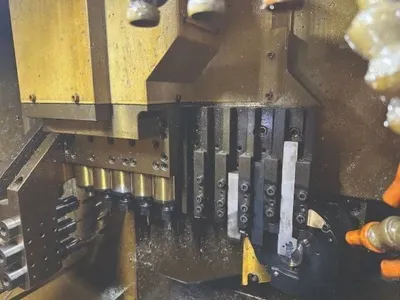

OD tool No. of tools 5 (□16mm)

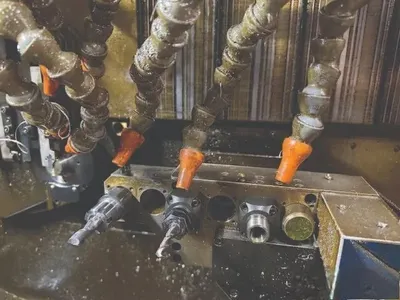

Front tool No. of tools 5 (ER20M, Ø32)
Cross drill No. of tools 5 (ER16)
Speed (rpm) 6,000
Motor (kW) 2.2
Off Center Drill 2 Modular (ER16)
(Built-in motor) 6,500
(Spindle motor)
Motor (kW) 2.2/5.5 1.1/3.7
Back tool No. of tools 6 (ER16)
(4 Fixed + 2 Driven)
Speed (rpm) 6,000
Motor (kW) 1.0
Machine size (L x W x H) (mm) 2,570 x 1,440 x 1,740
SWISS, CHUCKER OR CONVERTIBLE? Swiss
WEIGHT(KG) 3600
