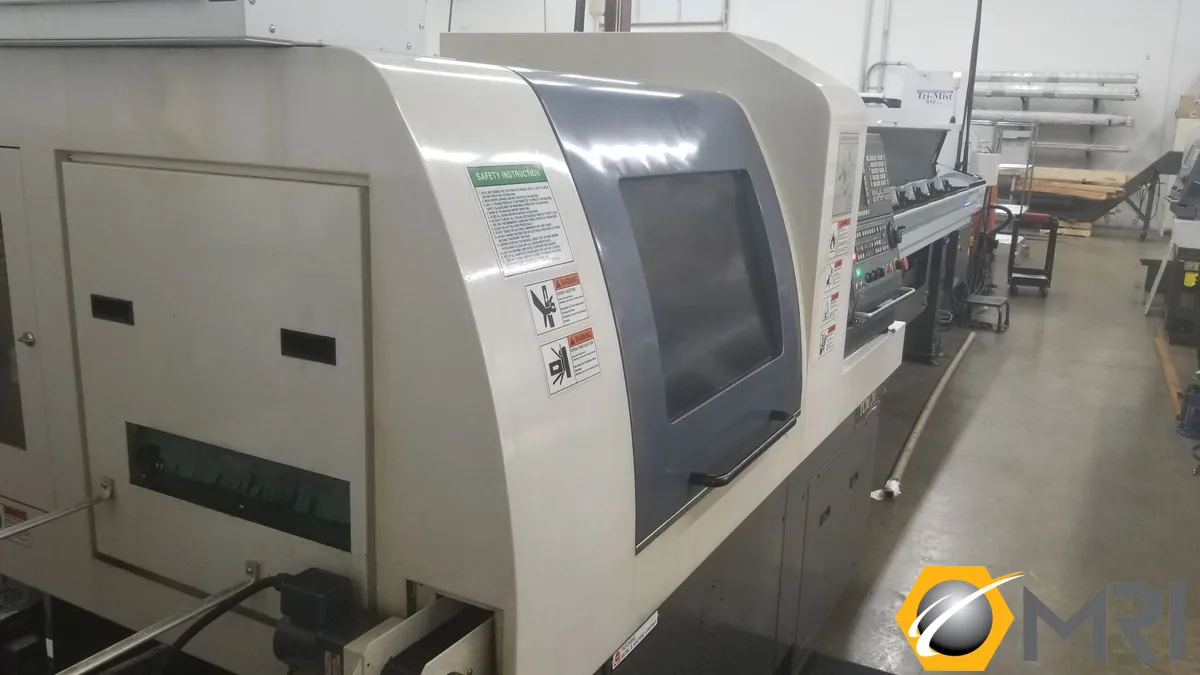

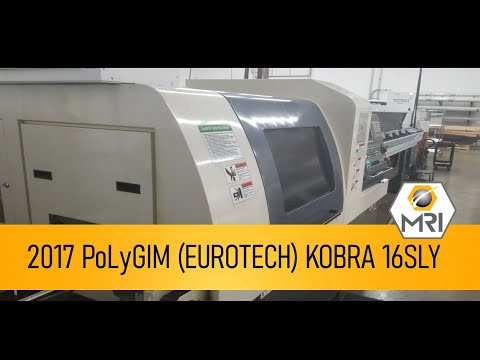

2017 PoLyGIM (EUROTECH) KOBRA 16SLY CNC SWISS LATHE | IH 7611845
ConditionUsed
1 available
2017 PoLyGim Kobra 16SLY CNC Swiss Lathe in used condition. Ideal for precision machining, this model offers reliability and efficiency. Perfect for enhancing your production capabilities.
From OEM Brochure
The SwissTurn Y-axis slides dual-spindle Swiss type CNC auto lathe
- the ultimate for bar machining. The main performance benefits off
ered:
■ Reduction of cycle times
■ Great rigidity to allow machining of tough materials
■ Load up to 32 cutting tools for machining of complex parts and reduce
set-up times
■ Ergonomics for quick and easy access for retooling operations
■ Quick change-over from guide bushing to non-guide bushing
Short Remnant Material - With the optional Rough Material Bushing, the
remnant material
can be 50mm (depending on parts length).
Replaceable Fixed/Driven Tool Holder Set - The 4-station back
stationary/driven tool
holder can utilize either fixed or driven tool holders. This enables
increased tooling
flexibility.
Optional flexible tool layout to offer thread whirling, hobbing and other
special tools
The superior design delivers extremely efficient and fast production of
complex
parts using live tools, and Y- and C-axes.
■ Up to 16 live tools for milling ops.
■ Programmable parts catcher and conveyor system.
■ Optional deep hole drilling, up to “2 tools”.
■ Disc brakes and hydraulic clamping on main spindle and sub-spindle
for rigid milling and cutting
Raw Materials Machining: The Rough Material Option allows the customer to
utilize
bushing
standard bar stock without using a guide bushing. Converting from guide
to non-guide bushing can be done in 10 minutes
Shipping dimensions:
Machine: 121" x 58" x 81" 4,600 lbs
Barfeed: 187" x 19" x 49" 1,210 lbs
Coolant Pan: 45" x 44" x 28" 167 lbs
Chip Cart: 39" x 25" x 33" 125 lbs
CAPACITY 0.685
POWER 3 HP
RPM 8,000 RPM
# AXIS 7
SWISS, CHUCKER OR CONVERTIBLE? Convertible
MAIN SPINDLE INDEXING Full C
SUB SPINDLE INDEXING Full C
LIVE BACK WORKING TOOLS? Yes
CONTROL CNC Mitsubishi M70
DIMENSIONS 121" x 58" x 81"
WEIGHT 4,600 LBS
CNC CONTROL MITSUBISHI M70
MAIN SPINDLE DIAMETER: 0.67" (17MM)
MAIN SPINDLE SPEED: 200-8,000 RPM
MAIN SPINDLE INDEXING ANGLE: 0.001 DEG.
Main SPINDLE MOTOR: 3 HP/220v/3/15 AMP
SUB/BACK SPINDLE DIAMETER: .67 (17MM)
SUB/BACK SPINDLE SPEED: 200-5,000 RPM
SUB SPINDLE INDEXING: 0.001 DEG.
MAX. LENGTH FOR FRONT EJECTION: 8.86” (225mm)
SUB/BACK SPINDLE MOTOR: 3 HP
MAX. MACHINING LENGTH per chucking: 200mm (7.87") or 80mm
with rotary/live Bushing
MAX. DRILLING DIAMETER MAIN SPINDLE: 12mm (0.393")
MAX. DRILLING DIAMETER SUB SPINDLE: 0.275"
MAX. TAPPING DIAMETER MAIN SPINDLE: M10
MAX. TAPPING DIAMETER SUB SPINDLE: M6
Tooling-
O.D. TOOLS: 6 (12 x 12 x 120 mm)
I.D. TOOLS: 4 (ER16)
CROSS WORKING DRIVEN TOOLING: 6 (ER16)
CROSS WORKING DRIVEN TOOLING SPEED: 200-6,000 RPM
FRONT WORKING DRIVEN TOOLING: 3 (ER-16)
FRONT WORKING DRIVEN TOOLING SPEED: 200-6,000 RPM
BACK WORKING ID TOOLING: 4 Live or 4 Static
BACK WORKING DRIVEN TOOLING-
No. of tools (slide 1): 3 (ER11)
No. of tools (post 1): 4 (ER16)
BACK WORKING DRIVEN TOOLING: 200-6,000 RPM
