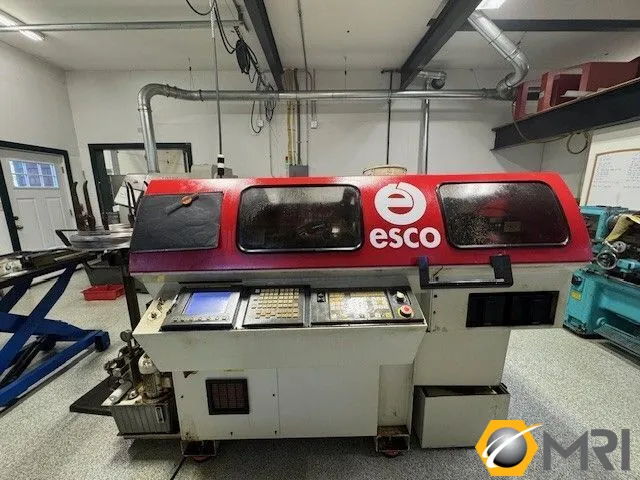

ESCOMATIC NM-643 CNC SWISS MACHINE | IH 7611856

SPECS-
NUMBER OF AXES =5
NUMBER OF SPINDLES = 2
MAIN SPINDLE-
MAX BAR DIAMETER 6.35MM
MAX MACHINING LENGTH 65MM
SPINDLE SPEEDS 12,000 RPM
SPINDLE POWER 2.2KW
C AXIS INDEXING PRECISION 0.001
COUNTER-SPINDLE-
MAX BAR DIAMETER 6.35MM
Z STROKE 45MM
SPINDLE SPEEDS 4000 RPM
C AXIS INDEXING PRECISION 0.001
GUIDE BUSH HOLDER-
NUMBER OF POSITIONS 4
SECONDARY OPERATION-
NUMBER OF POSITIONS 3
NUMBER OF MOTORIZED POSITIONS 3
LIVE TOOLS SPEED 18,000 RPM
POWER SUPPLY-
SUPPLY VOLTAGE 400V
TOTAL INSTALLED POWER 8KW
WEIGHT & DIMENSIONS-
MACHINE FLOOR SPACE 2656 X 1335MM
MACHINE HEIGHT 1600MM
MACHINE WEIGHT 1400KG
MACHINE HOURS-
NUMBER OF WORKING HOURS 21,053
NUMBER OF SPINDLE HOURS 5686
