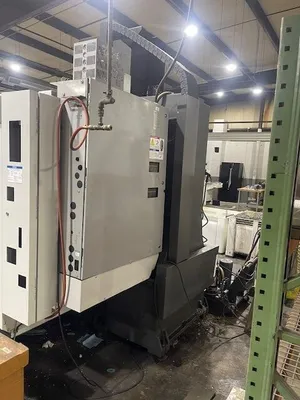

2010 HAAS VF-3YT VERTICAL MACHINING CENTER | JS 7611860
ConditionUsed
1 available
Features:
• HAAS CNC Control
• 12" Color LCD
• USB Port
• Through Spindle Coolant (300 psi)
• 24 Position Side Mount Tool Changer
• Two Speed Gearbox
• HAAS HRT-210 Fourth Axis Rotary Table
• High Speed Machining
• Chip Auger
• Intuitive Programming System
• Rigid Tapping
• Remote Jog Handle
• Automatic Air Gun
• High Intensity Lighting
• Manufacture Date December 2010
• 5432 Motion Time
• 5480 Spindle Time
X-Axis 40"
Y-Axis 26"
Z-Axis 25"
Table Size 52" x 23"
Spindle Speed 0 - 7500 RPM
Spindle Taper CAT 40
Spindle Motor 20 HP
Tools 24
Table Load Capacity 4000 lbs.
Rapid Traverse Rates 710 IPM
Max Tool Diameter 4.7"
Max Tool Length 16"
Max Tool Weight 30 lbs.
Machine Weight 15,432 lbs.
Spindle Nose to Table Top 7.9" - 32.9"
Spindle Torque 450 ft. lbs.
Tool Change Time (T - T / C - C) 4.2 / 6.3 Seconds
