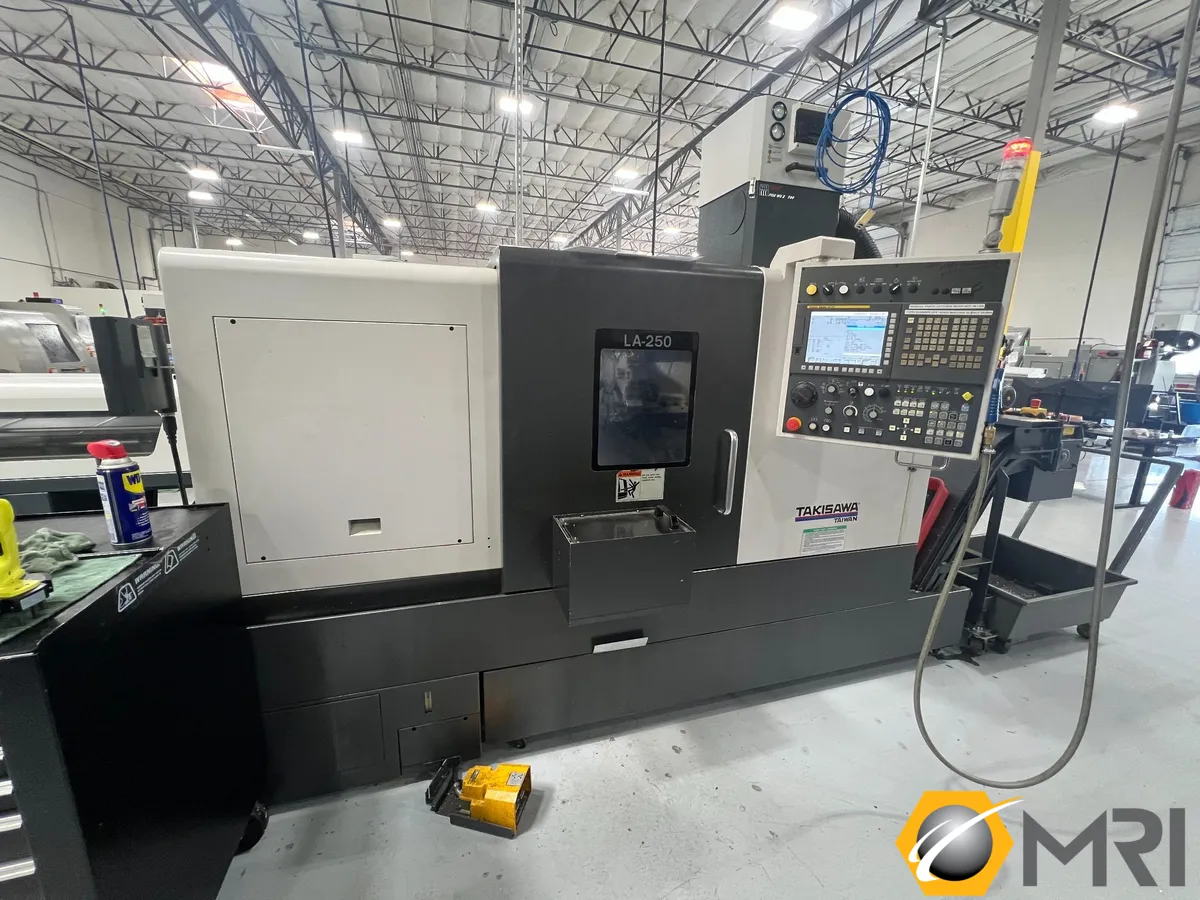

2018 Takisawa LA-250 CNC Lathe | AB 7611869

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s)
and accessories prior to purchase.

General Specifications Direct from OEM:
Max swing (mm): 580mm (22.8")
Max turning diameter (mm): 254mm (17.7")
Max tuning length (mm): 450mm (30.1")
Bar capacity (mm): 75mm (2.9")
Spindle speed (rpm): 3500
Spindle Nose : A2-8
Through Hole Diameter: 86mm (3.3")
Bearing Inside Diameter: 120mm (4.7")
Chuck size (inch): 10"
Number of head stock: 1
Number of tools: T10(T12)

Machine Dimensions: 115"x71"x71.5"
Machine Weight: 10,000 lbs
