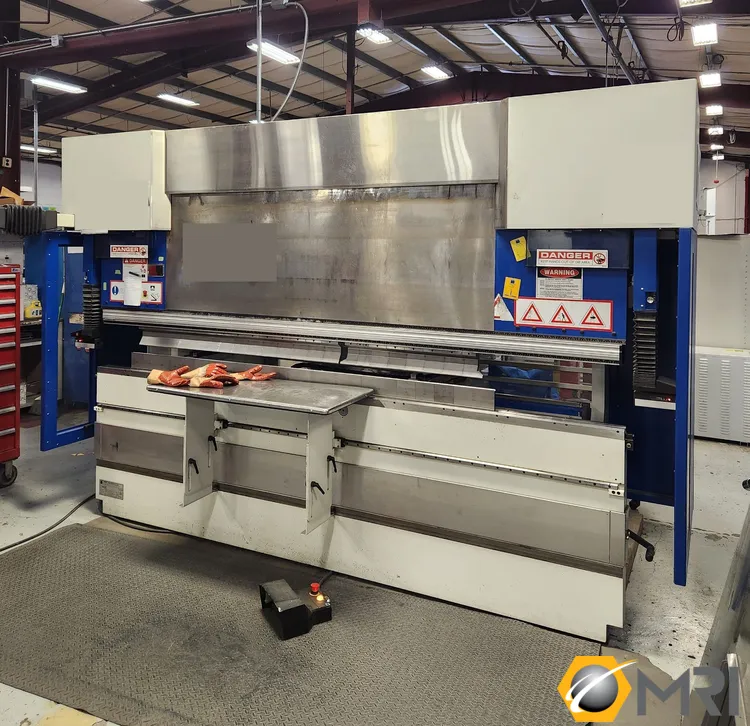

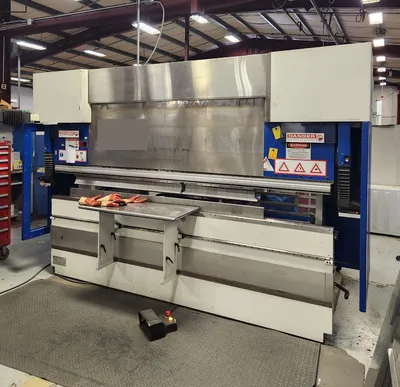

TRUMPF TRUBEND 3120 CNC PRESS BRAKE, NEW: 2008
ConditionUsed
1 available
TRUMPF TRUBEND 3120 CNC PRESS BRAKE, NEW: 2008

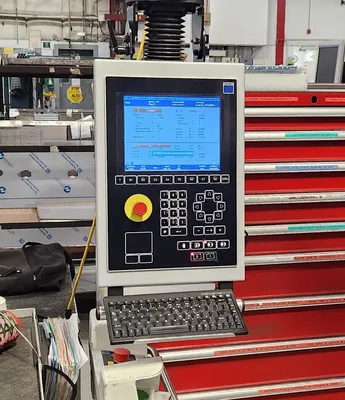

DELEM DA65-TW 6-AXIS CNC CONTROL
4-AXIS BACKGUAGE (X, R, Z1, Z2)
INDEPENDENT RAM ENCODERS (Y1, Y2)
UPPER HYDRAULIC CLAMPING
(2) FRONT SHEET SUPPORTS
FOOT SWITCH
LAZER SAFE
MAX. TONNAGE: 132
OVERALL BENDING LENGTH: 122"
DISTANCE BETWEEN HOUSINGS: 106"
STROKE: 7.87"
SPEEDS:
- RAPID APPROACH: 0.39 IPS
- BENDING: 7.87 IPS
BED TO FLOOR DISTANCE: 38"
MAX. STROKE BEAM: 13.6"
MAX. DAYLIGHT: 18.5"
DIMENSIONS: 142"(L) x 69"(W) x 92"(H)
WEIGHT: 18,298 LBS
