Crest COC3B-1818 5-station Ultrasonic Cleaning System with Transfer System
ConditionUsed
1 available
5-Station, 3-Tank Fully Automated Robot Transfer System
New 2014; Never used - only tested.
If you would like this unit as-is, please review ID # 604018
We are offering this unit with buyer's choice of Crest immersible and generator units in tanks 1 & 2 (choices: 40, 68 or 132 kHz. ETA: 10-12 weeks from date of order. Installation is relatively straight forward. Buyer must do their own installation or hire a local technician to install. Seller will only order and make available these items or have them delivered direct to buyer's facility)
Note: This type of unit sells new for well over $200,000; especially if you include the new new tarrif regulations!
Immediately available
Rigibot CTS-2000-AB Transfer unit

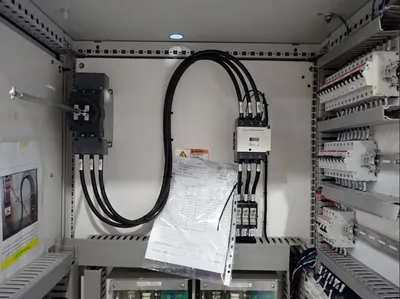

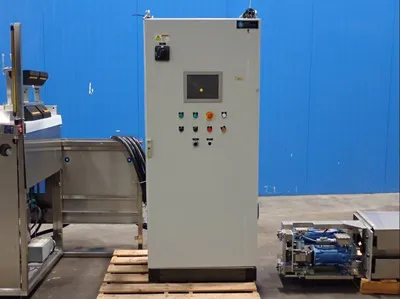

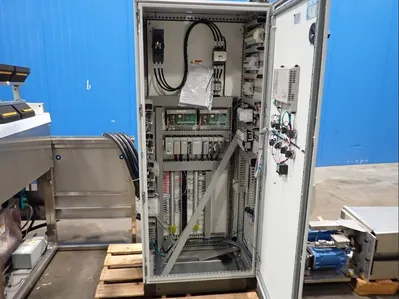

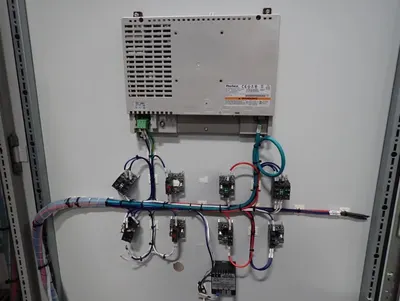

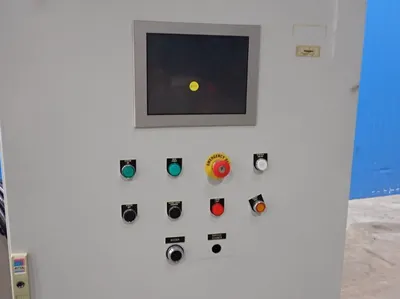

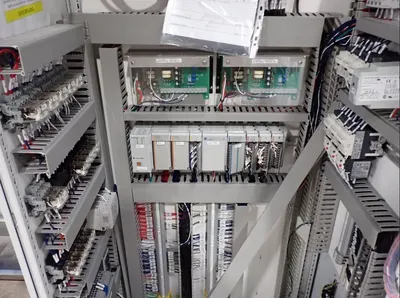

PLC Control: Allen-Bradley; can utilize multiple recipes for your specific process
Hot air blow dryer and Vacuum Dryer
This unit, originally manufactured in 2014, has never been used, only tested.
It is sold "as-new" and configured with 3 tanks (wash - rinse - dry) plus load & off-load stations

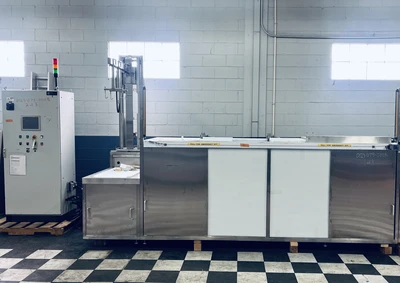

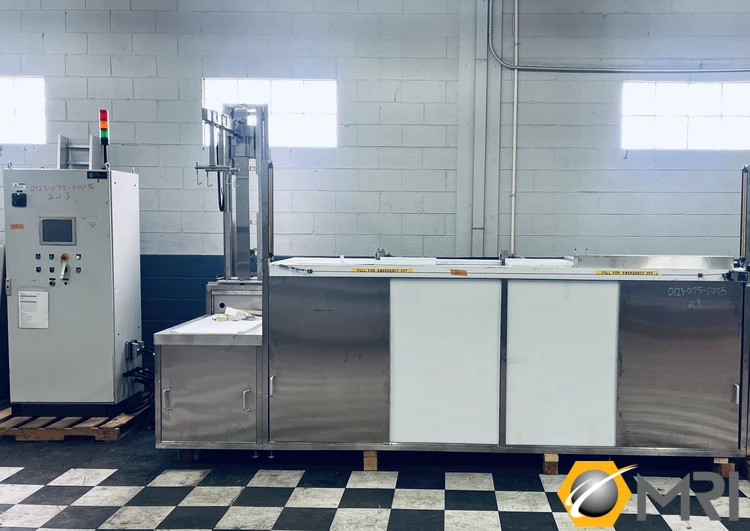

Crest Ultrasonic Automated Wash, Rinse and Dry Console with robotic transfer. This system is set up with

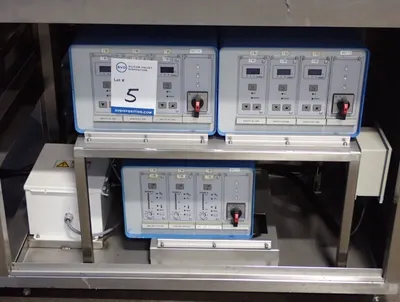

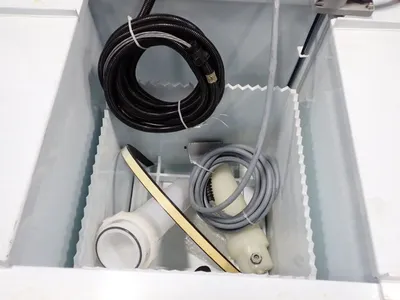

4-sided overflow and pump with filter package for the Wash and Rinse stations. Also, the 4-Sided overflow constructed tanks are 18”x18”x18”H (15" H when using the immersibles). Immersibles can be ordered from Crest for ultrasonic clean in 40 kHz, 68 kHz or 132 kHz. Currently, tank 1 is set up with 470 kHz (transducers / generators) and tank 2 is set up with 132 kHz (transducers/generators)
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an
inspection of the machine(s) and accessories prior to purchase.
Tanks are origina and are Polypropylene, perfectly set up for acids and immersibles*.
Stations:
1: Load Station
2: Set up for ultrasonic wash (immersible & generators can be ordered direct
from Crest Ultrasonics)
3: Set up for ultrasonic rinse (immersible & generator can be ordered direct
from Crest Ultrasonics)
4: Recirculating Hot Air Dry
5: Unload Station
General Specifications:
This unit is set up with a inner and outer polypropylen tank:
Inner polypropylene work tank
Dimensions: 18"l-r X 18"f-b X 18"liquid depth
Outer polypropylene tank
Dimensions: 20" r-l X 20" f-b X 21" D (19" liquid depth)
Can be used as a straight risnse - dry systems
Process: DI water, DI water, Hot air dry
or with cleaning chemistry in tank 1 & rinse in tank 2 (station 2 & 3) - with
Deionized Water
Fully Automated: Crest Model CTS-2000 Rigibot Transfer
Current plumbing:
2-3 GPM DIW @1-2 Mohm, 30-35 psi and process
temperature, 30-35 CFM CDA @ 30 psi, 1-2 CFM shop air @
60 psi, unrestricted floor drain.

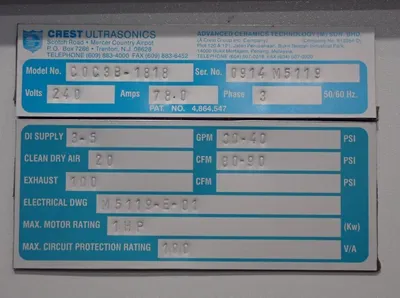

Power Requirement: 240Volts /3 phase /60Hz /78Amps
Work Flow: Left to Right

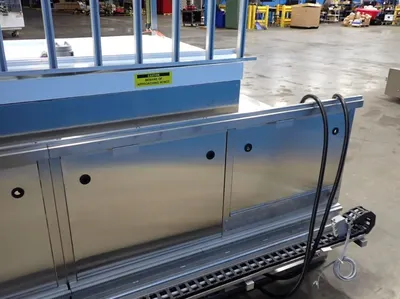

Frame Material: Type 304 stainless steel support frame with leveling legs
Access Panels
• lift-out access panels on front
Countertop
Polypropylene removable countertop.
• The countertop is fitted with removable polypropylene drainbacks
(between the process stations).
Base plate & frame: type 304 stainless steel
Rigibot CTS-2000-AB
Control: Allen-Bradley
Capacity: 200 lbs
Travel Speed (Horizontal/Vertical): 100 / 17 FPM
Positioning Accuracy (Horizontal/Vertical): +/- 0.36" / +/- 0.2"
Machine Dimensions: 113" x 40" x 48"
Machine Weight: 3,100 lbs
