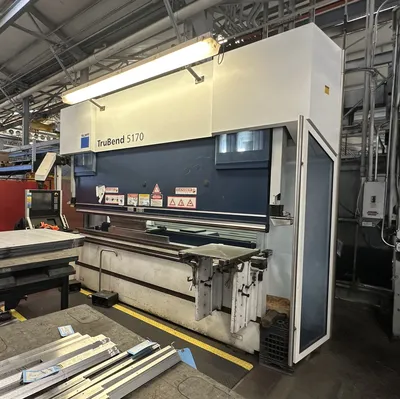

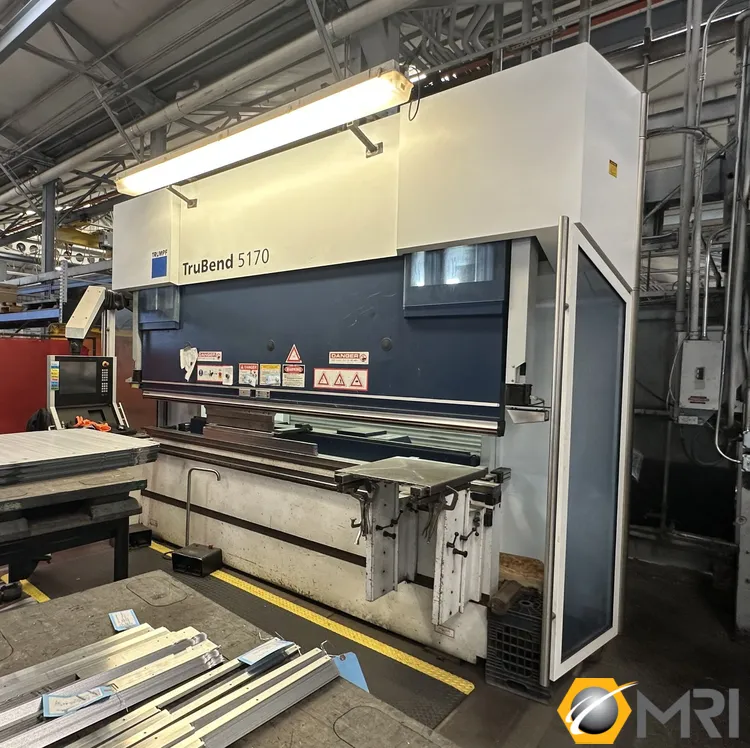

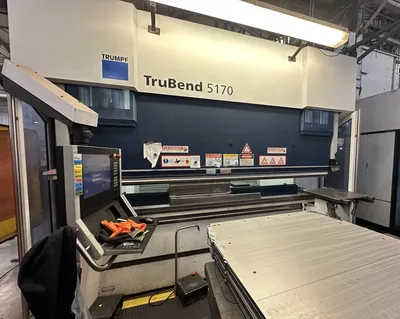

TRUMPF TRUBEND 5170, NEW: 2009
ConditionUsed
1 available
TRUMPF TRUBEND 5170, NEW: 2009

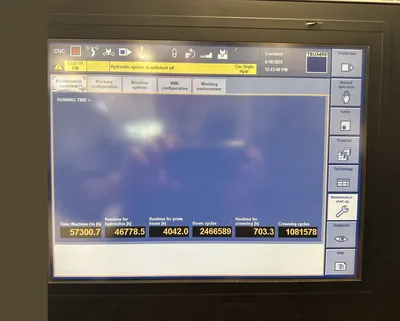

TRUMPF TASC 6000 CONTROL
UPPER HYDRAULIC CLAMPING

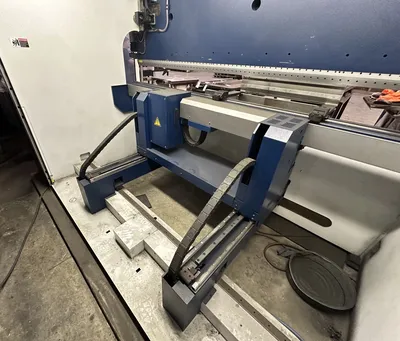

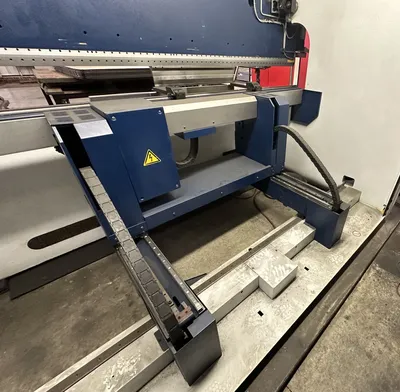

4-AXIS CNC BACK-GAUGE (X, R, Z1-Z2)

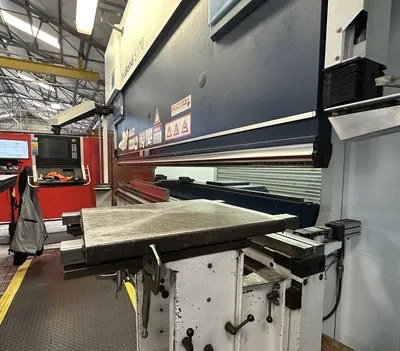

2) FRONT SHEET SUPPORTS
PEDESTAL FOOT SWITCH
CNC CROWNING
PNEUMATIC DIE SHIFT
LAZER SAFE
MAXIMUM TONNAGE: 187
MAXIMUM BENDING LENGTH: 127"
WIDTH BETWEEN COLUMNS: 106"
STROKE: 17.51"
OPEN HEIGHT:
THROAT DEPTH: 16.5"
APPROX. DIMENSIONS: 156.7"(L) x 74.8"(W) x 120"(H)
WEIGHT: 26,901 LBS.
