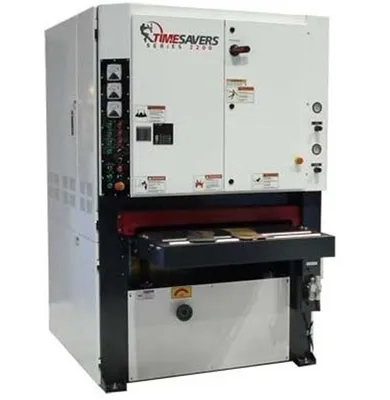

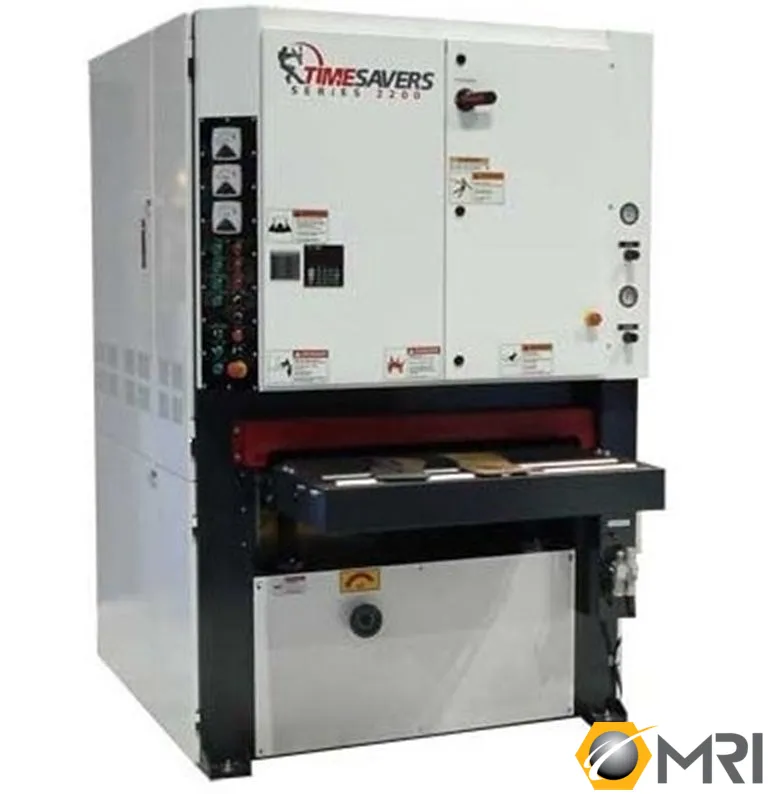

TIMESAVERS 22 SERIES, MODEL 2231-45-000, DEBURRING MACHINE, NEW: 2022

3) TOP HEAD, 8” DIAMETER CONTACT DRUMS
MAIN DRIVE MOTORS
INFEED STOP BAR
DUAL INFEED & DUAL OUT FEED HOLDDOWN ROLLS
AIR OPERATED DISC BRAKE
CENTRALIZED CONTROL PANEL
DIAL INDICATORS ON ADJUSTABLE DRUM HEAD
QUICK RELEASE OUTBOARD SUPPORT
MAIN MOTOR PERCENTAGE LOAD METER
HOUR METER
MOTORIZED THICKNESS ADJUSTMENT
ELECTRIC GO-TO DEVICE
VARIABLE SPEED CONVEYOR DRIVE
THROUGH-BEAM ABRASIVE BELT TRACKING
U.L. LISTED COMPONENTS

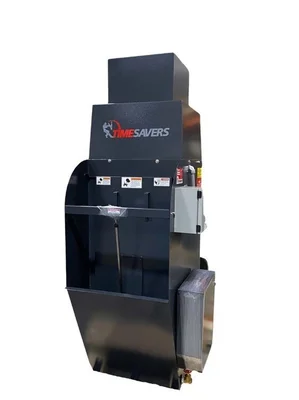

TIMESAVERS NIAGARA-15 WET DUST COLLECTOR

MODEL 2231-45-000 KEY FEATURES:
- 8” DIAMETER CONTACT DRUMS: DYNAMICALLY BALANCED 8” DIAMETER CONTACT ROLLS WITH PRECISION BEARINGS. HARDNESS (DUROMETER) AND SERRATION ARE CHOSEN FOR GENERAL DEBURRING AND FINISHING APPLICATIONS.
- MAIN DRIVE MOTORS: ABRASIVE HEAD AND FEED DRIVE MOTORS ARE PRECISION BALANCED FOR POWER AND LONG LIFE. TOTALLY ENCLOSED, FAN-COOLED MOTORS ADD DURABILITY.
- INFEED STOP BAR: A SHEET METAL GATE WHICH ACTS AS AN EMERGENCY STOP FOR THE OPERATOR WHEN LOADING THE MACHINE. THE GATE ACTUATES A LIMIT SWITCH WHICH SHUTS DOWN THE ABRASIVE BELT HEAD AND CONVEYOR FEED IN EMERGENCY SITUATIONS.
- DUAL INFEED AND DUAL OUTFEED HOLDDOWN ROLLS: RUBBER-COVERED, SPRING-LOADED ROLLS AID IN HOLDING SHEET METAL PARTS ONTO CONVEYOR BELT AS THEY PASS THROUGH THE MACHINE.
- AIR OPERATED DISC BRAKE: USED TO STOP THE CONTACT ROLL TO ASSURE CONSISTENT ABRASIVE BELT STOPPAGE IN APPROXIMATELY FOUR SECONDS. THIS BRAKING SYSTEM WILL NOT FADE UNDER CONTINUOUS BRAKING AND HAS NON-SPARKING, EASILY REPLACEABLE LININGS. THE BRAKE DISC IS LOCATED ON THE MAIN MOTOR SHAFT FOR EASY MAINTENANCE.
- CENTRALIZED CONTROL PANEL: SIMPLE OPERATOR CONTROLS FOR MACHINE OPERATION. CONVEYOR FEED, SPEED AND ABRASIVE BELT ARE CONTROLLED AT THIS CENTRALIZED STATION.
- DIAL INDICATORS ON ADJUSTABLE DRUM HEADS: ALLOWS FINE-TUNING OF ABRASIVE BELT PRESSURE ON PARTS WITHOUT THE NEED TO ADJUST HOLDDOWN ROLLS. ALSO ALLOWS THE POSSIBILITY OF RUNNING ABRASIVE BELTS OF DIFFERENT THICKNESS WITHOUT HAVING TO ADJUST HOLDDOWN.
- DIAL INDICATORS ON ADJUSTABLE DRUM HEADS: ALLOWS FINE-TUNING OF ABRASIVE BELT PRESSURE ON PARTS WITHOUT THE NEED TO ADJUST HOLDDOWN ROLLS. ALSO ALLOWS THE POSSIBILITY OF RUNNING ABRASIVE. BELTS OF DIFFERENT THICKNESS WITHOUT HAVING TO ADJUST HOLDDOWN ROLLS.
- QUICK RELEASE OUTBOARD SUPPORT: ALLOWS FAST REMOVAL OF OUTBOARD SUPPORT TO EXPEDITE
ABRASIVE BELT CHANGE. ABRASIVE BELTS CAN BE CHANGED IN AS LITTLE AS 60 SECONDS.
- MAIN MOTOR PERCENTAGE LOAD METER: PROVIDED ON EACH HEAD TO SHOW THE EXACT PERCENTAGE OF MAIN MOTOR HORSEPOWER BEING USED DURING OPERATION.
- HOUR METER: RECORDS THE ACTUAL RUNNING TIME OF THE MACHINE. THIS UNIT IS USED BY
MAINTENANCE FOR SCHEDULED LUBRICATION OF KEY COMPONENTS.
- MOTORIZED THICKNESS ADJUSTMENT: THE CONVEYOR BED SYSTEM HAS A 0-5” PART THICKNESS
OPENING. THE MOVEMENT IS CONTROLLED BY FOUR MOTOR DRIVEN 4,000 POUND PRECISION WORM GEAR JACKS, ONE IN EACH CORNER. THE MACHINE MAY ALSO BE MANUALLY ADJUSTED BY TURNING THE HANDWHEEL ON THE BELT LOADING SIDE OF THE MACHINE.
- ELECTRONIC GO-TO DEVICE: ALLOWS USER TO DIGITALLY ENTER DESIRED MACHINE OPENING POSITION. INDICATES CONVEYOR SPEED AND CONVEYOR BED POSITION IN RELATION TO GRINDING BELT FOR ACCURATE SETUP TO .001”. THE DEVICE CAN STORE UP TO TEN PROGRAMS.
- VARIABLE SPEED CONVEYOR DRIVE: 15-45 FPM A/C VARIABLE FREQUENCY CONVEYOR DRIVE.
- THROUGH-BEAM ABRASIVE BELT TRACKING: ELECTRONIC PHOTO-EYE TRACKING WHICH MONITORS AND CONTROLS ABRASIVE BELT MOVEMENT ON THE GRINDING HEAD. OVER-TRAVEL LIMIT SWITCHES PREVENT ABRASIVE BELT DAMAGE IN CASE OF MISTRACK.
