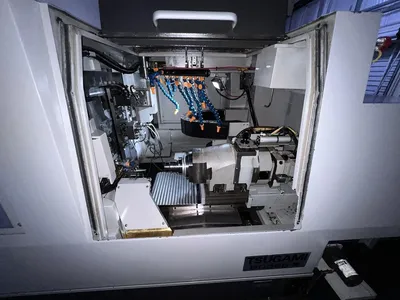

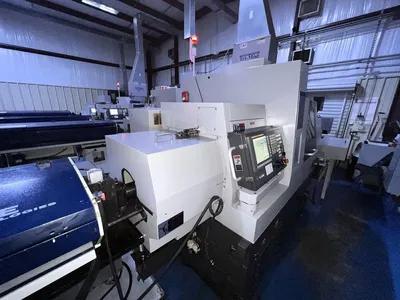

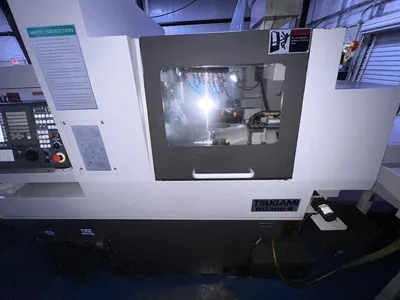

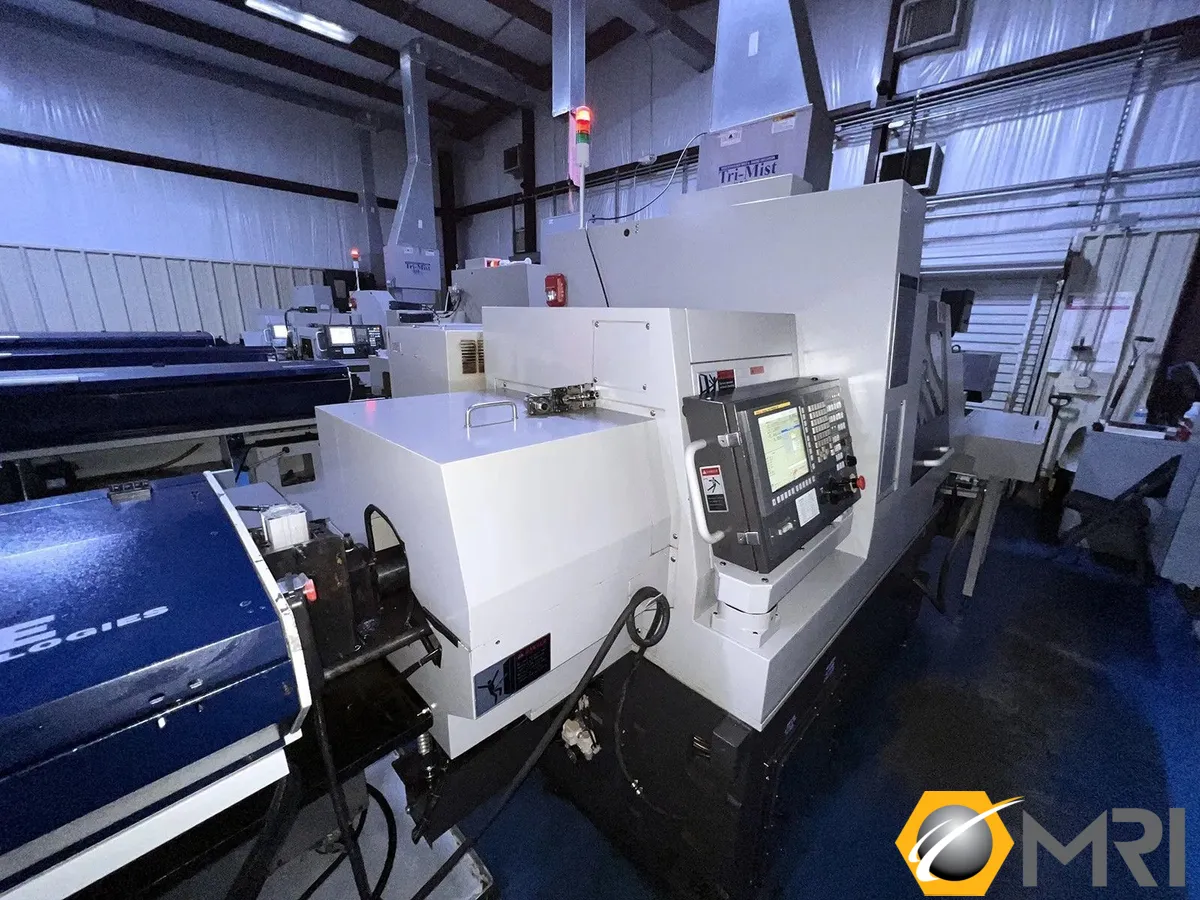

2018 TSUGAMI BO386-III CNC SWISS LATHE | AB 7611906

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and
accessories prior to purchase.

Specifications:
HIGH SPEED RAPID TRAVERSE: 1260 IPM
MAX BAR CAPACITY : 1.5″ (38 MM)
MAX TOOL POSITIONS: 29
MAX. DRILLING DIAMETER: 0.511″ (13 MM)
MAX. TAPPING DIAMETER; M12
MAIN SPINDLE INDEXING: 360° (FULL C-AXIS)
MAIN SPINDLE SPEED: 200 – 6.000 RPM
MAIN SPINDLE MOTOR: 11 KW
BACK SPINDLE INDEXING: 360° (FULL C-AXIS)
BACK SPINDLE SPEED: 200 – 7,000 RPM
BACK SPINDLE MOTOR : 5.5 KW
FRONT TURNING STATIONS : 5
BACK TURNING STATIONS: 5
FRONT DRILLING HEAD STATIONS: 5
TURNING STATIONS: 2
LIVE CROSS MILL STATIONS: 4
LIVE SUB MILLING STATIONS: 8
DRIVEN TOOL SPEED: 200 – 6,000 RPM
DRIVEN TOOL MOTOR: 1.4 KW
POWER SOURCE: AC 220V / 3-PHASE /60 HZ
POWER REQUIREMENT: 22.4 KVA
HIGH WITHOUT BAR FEEDER: 88″ X 60″ X 81″
WEIGHT : 10,694 LBS. APPROX.
