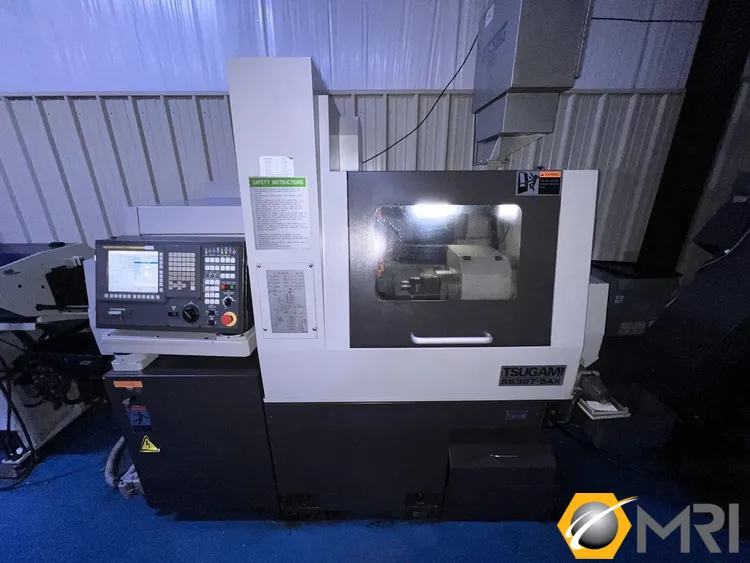

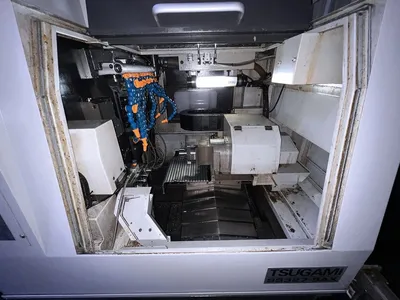

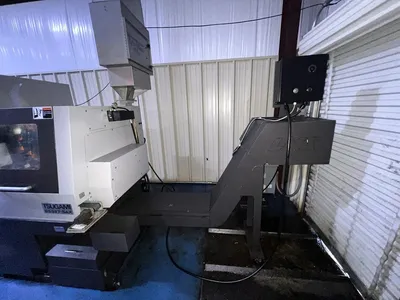

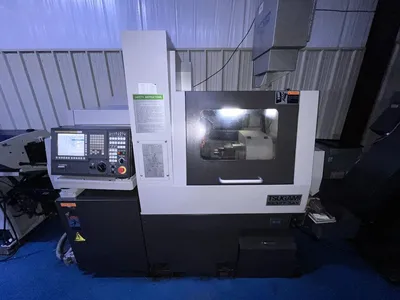

2017 TSUGAMI SS327-5AX CNC SWISS LATHE | AB

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and
accessories prior to purchase.

Working Barstock Diameter: ø32 mm (1.26 in.)
Max. Machining Length: 330 mm (12.99 in.) (Direct-Drive Guide Bushing)
70 mm (2.76 in.) (Chucker Mode)
Max. Main Spindle Drilling Diameter: ø12 mm (.47 in.)
Max. Main Spindle Tapping Diameter: M10
Max. Back Spindle Chucking Diameter: ø32 mm (1.26 in.)
Max. Back Spindle Drilling Diameter: ø10 mm (.393 in.)
Max. Back Spindle Tapping Diameter: M8
Max. Tool Spindle Slotting Cutter Diameter: ø45 mm (1.77 in.)
Max. Back Drilling Diameter: ø8 mm (.31 in.)
Max. Back Live Tapping Diameter: M6
Main Spindle Speed: 8,000 RPM
Back Spindle Speed: 8,000 RPM
Tool Spindle Speed: 6,000 RPM
Total Tool Number (Standard Spec.): 38

B-Axis Tool Spindle Speed: 7,000 RPM
Spindle Index: C1 Axis and C2 Axis
Main Spindle: 5/7.5 Hp (3.7/5.5 kW)
Back Spindle: 5/7.5 Hp (3.7/5.5 kW)
Cross Drill of Front Tool Post: 1.5 Hp (1.0 kW)
B-Axis Tool Spindle: 1.5 Hp (1.0 kW)
Rotary Tool of Back Tool Post: 1.9 Hp (1.4 kW)
Rotary Guide Bushing: 2 Hp (1.5 kW)
Z1, Y1, X2, Z2 1 Hp (0.75 kW)
X1, Y2 0.7 Hp (0.5 kW)

Coolant Pump: 0.5 Hp (.4 kW)
Lubricating Pump: 4 Hp 3.7(3kW)
Compressed air requirement: .4 MPa or more
Air discharge rate: 100 NL/min
Power Source Requirements: 16.8 KVA
Coolant Tank Capacity: 260 L
Dimensions: 103.5” x 50.4” x 79”
Weight: 8,818 lbs.
