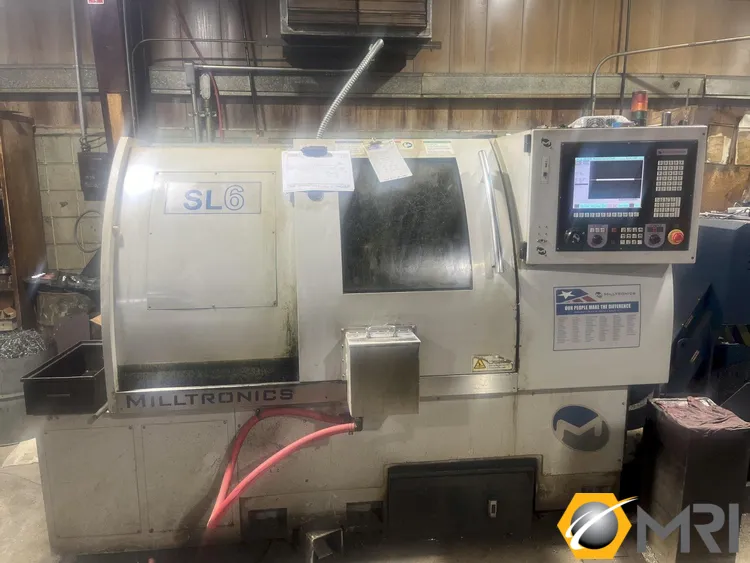

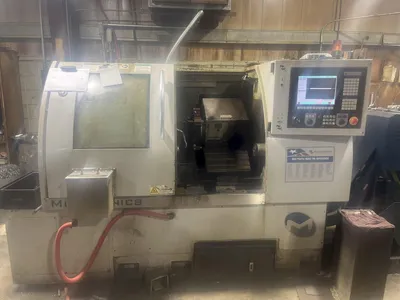

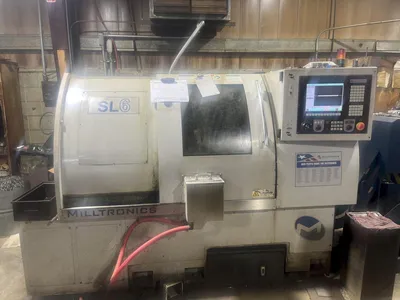

2012 MILLTRONICS SL6 CNC LATHE | JS 7611910

Swing Over Way Cover - 20"
Swing Over Carriage - 9"
Travel (X Axis) Cross Slide - 8"
Travel (Z-Axis) Long Slide - 21"
Bar Capacity, Diameter - 1.65"
Chuck Size - 6" (currently equipped with collet chuck)
Spindle Load Capacity (Work Holding & Part) - 300 Lbs.
Turning Diameter - 12.25"
Spindle Motor - 12/10 HP
Spindle Nose - A2-5
Spindle Speeds - 50 to 6000 RPM
Tail Stock Quill Stroke - 2"
Tail Stock Quill Diameter - 2.55"
Tail Stock Quill Taper - No. 4MT
Turret Tool Size - 3/4"
Turret Index Time, 1 Station - 0.7 Sec.
Rapid Traverse X & Z - 1,000 IPM
Maximum Feedrate - 500 IPM
Bed Inclination - 30 Degrees
Machine Dimensions Without Accessories - 91" L x 68" D x 63" H
Machine Weight, Approx. - 7000 Lbs.
