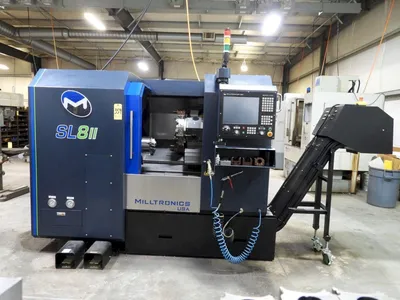

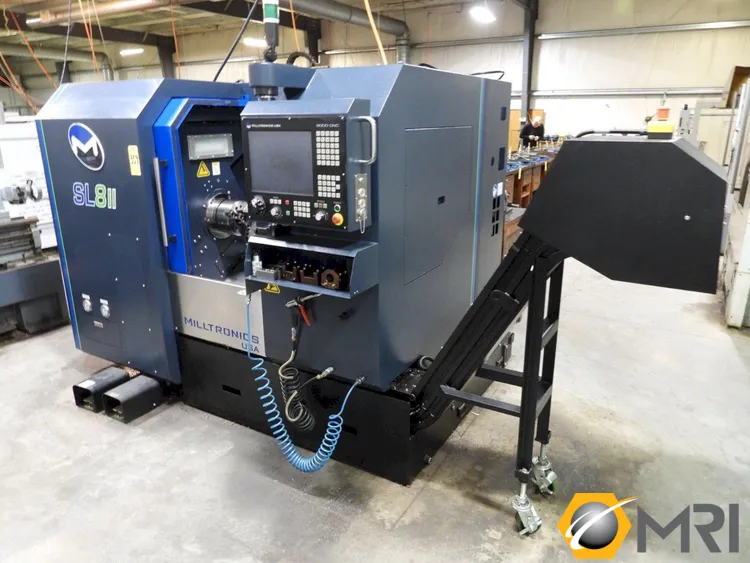

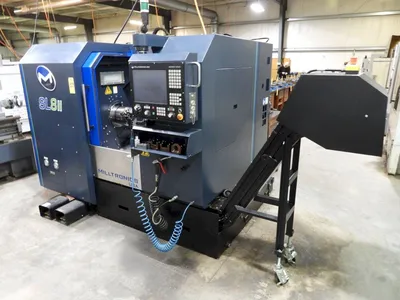

2023 MILLTRONICS SL8-II CNC LATHE | JS 7611913

X-AXIS TRAVEL - 8"
Z-AXIS TRAVEL - 21"
SWING OVER BED - 21.7"
SWING OVER CROSS SLIDE - 11.8"
MAX TURNING DIAMETER - 14"
MAX TURNING LENGTH - 21"
SPINDLE NOSE - A26
DRAW TUBE DIAMETER SPINDLE - 2.54"
BORE DIAMETER - 3.07"

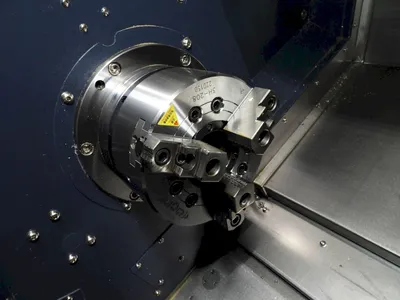

CHUCK SIZE - 8"
SPINDLE RANGE - 0 TO 4000 RPM
AC SPINDLE MOTOR MAX - 22/15 HP

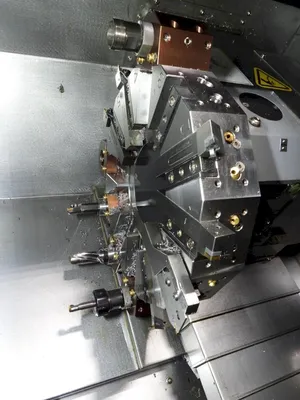

TURRET - 12 POSITION
TOOL SIZE - 1" X 1"
BORING BAR CAPACITY - 1.5"
TURRET INDEX TIME - 0.6" SEC
TAILSTOCK QUILL TRAVEL - 3.46"
TAILSTOCK QUILL DIAMETER - 2.28"
TAILSTOCK QUILL TAPER - 4MT
RAPIDS XYZ - 1,181 IPM
MAX CUTTING FEED RATE - 400 IPM
X AXIS BALLSCREW DIAMETER - 1.25"
Z AXIS BALLSCREW DIAMETER - 1.25"
MACHINE HEIGHT - 83.7"
FLOOR SPACE REQUIRED - 169.1" X 104.4"
MACHINE WEIGHT - 8,885 LBS
POWER REQUIRED - 26 KVA
VOLTAGE REQUIRED - 208-240 / 3 PH
