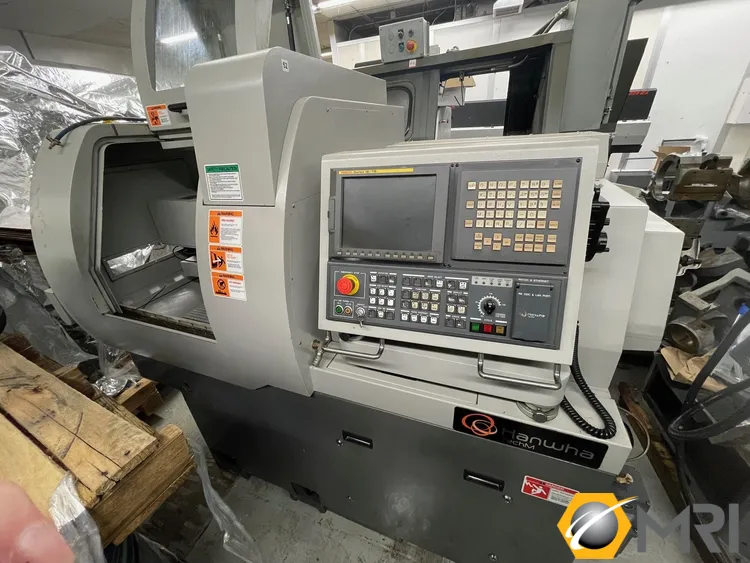

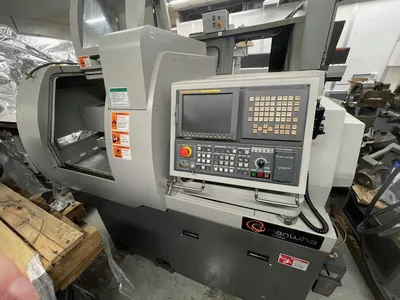

Hanwha XD26H CNC Swiss Lathe, New in 2009 | IH 7611922

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:
Capacity: 1.00"
Main Spindle Speed: 8,000 RPM
Sub Spindle Speed: 8,000 RPM
Sub Spindle Indexing: 1 degree
Cross Drill Speed: 8,000 RPM
Back working Live Tool Speed: 6,000 RPM
Rapid Traverse Rate: 1259 IPM
Feed Rate: 236 IPM
Main Spindle Motor: 2.99/7.5HP
Sub Spindle Motor: 2.04/2.99 HP
Cross Drill Motor: 3/4 / 1.49 HP
Max Drill/ Tap Main: 0.39" / M8
Max Turning Length: 8.26"

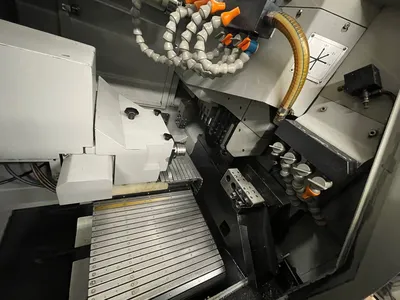

Tooling: 21 total
-OD Turning Tools: 5
-Live Cross Tools: 4
-Y Axis ID Tool Block: 5
-Front ID Tools: 2 Live (off center drills by sub)
-Back working Tools: 4 Total, 2 fixed, 2 live

Machine Dimensions: 92.9 L" x 49" x 69"
Machine Weight: 7,500 Lbs
