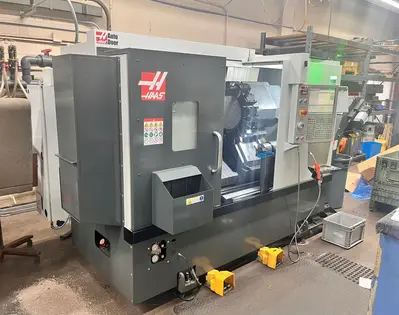

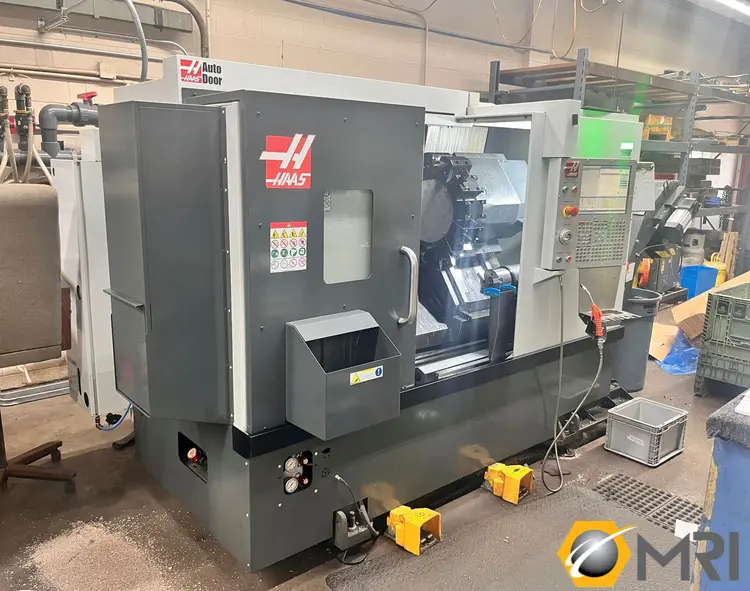

2019 HAAS ST-20Y CNC LATHE | MM 7611925
ConditionUsed
1 available
Y-AXIS
LIVE MILLING
SUB SPINDLE
8”, 3-JAW HYDRAULIC CHUCK (MAIN)

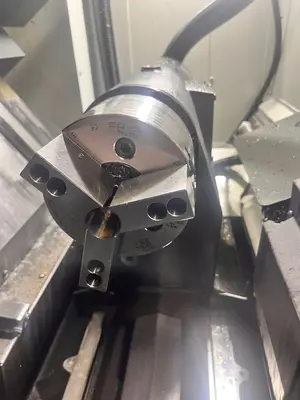

5”, 3-JAW SAMCHULLY (HS-05) HYDRAULIC CHUCK (SUB)

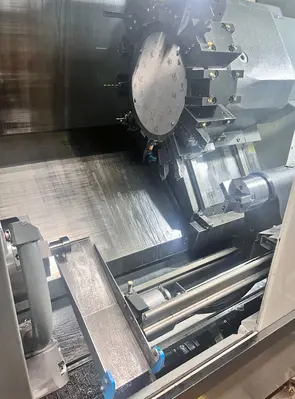

24-POSITION BMT65 TURRET
CHUCK AIR BLAST (MAIN SPINDLE)
AUTO DOOR
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
CHIP TRAY FILTER KIT

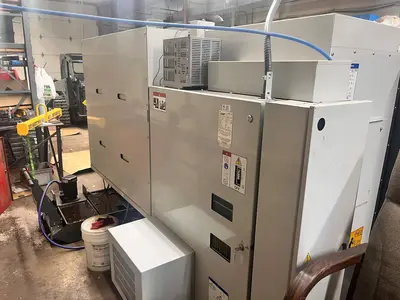

CNC CONTROL CABINET COOLER
EARLY POWER-FAILURE DETECTION MODULE
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
1GB MEMORY
HAASCONNECT: REMOTE MONITORING
WIFI CONNECT FOR THE HAAS CONTROL
(1) RADIAL LIVE TOOL HOLDER
(1) AXIAL LIVE TOOL HOLDER

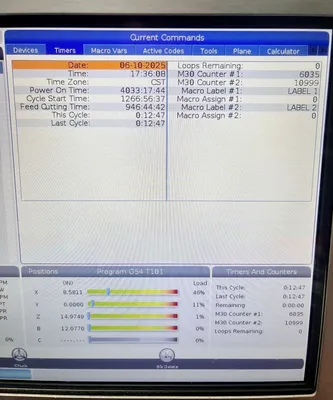

** AS OF JUNE 2025, FEED CUTTING TIME - 946 HOURS
CHUCK SIZE: 8.3"
MAX PART SWING: 21"
MAX CUTTING DIAMETER: 11.75"
MAX CUTTING LENGTH (VARIES WITH WORKHOLDING): 22.5"
BAR CAPACITY: 2.50"
X AXIS TRAVEL: 8.4"
Y AXIS TRAVEL: 2"Z AXIS TRAVEL: 22.5"
RAPID FEEDRATE ON X & Y: 472 IPM
RAPID FEEDRATE ON Z: 945 IPM
SPINDLE NOSE: A2-6
SPINDLE BORE: 3.50"
MAX RATING: 20 HP
SPINDLE SPEED: 4,000 RPM
C AXIS LIVE TOOLING SPEED: 6,000 RPM
SPINDLE C AXIS RATING: 5 HP
TURRET: 12 STATIONS
SUS SPINDLE NOSE A2-5
SUB SPINDLE CHUCK 5.3"
COOLANT CAPACITY: 55 GALLONS
DOMESTIC PALLET: 143 IN X 90 IN X 92 IN
WEIGHT: 10,480 LBS
