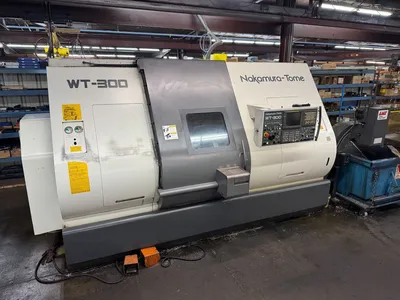

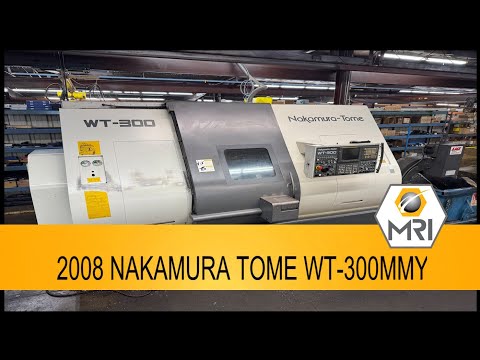

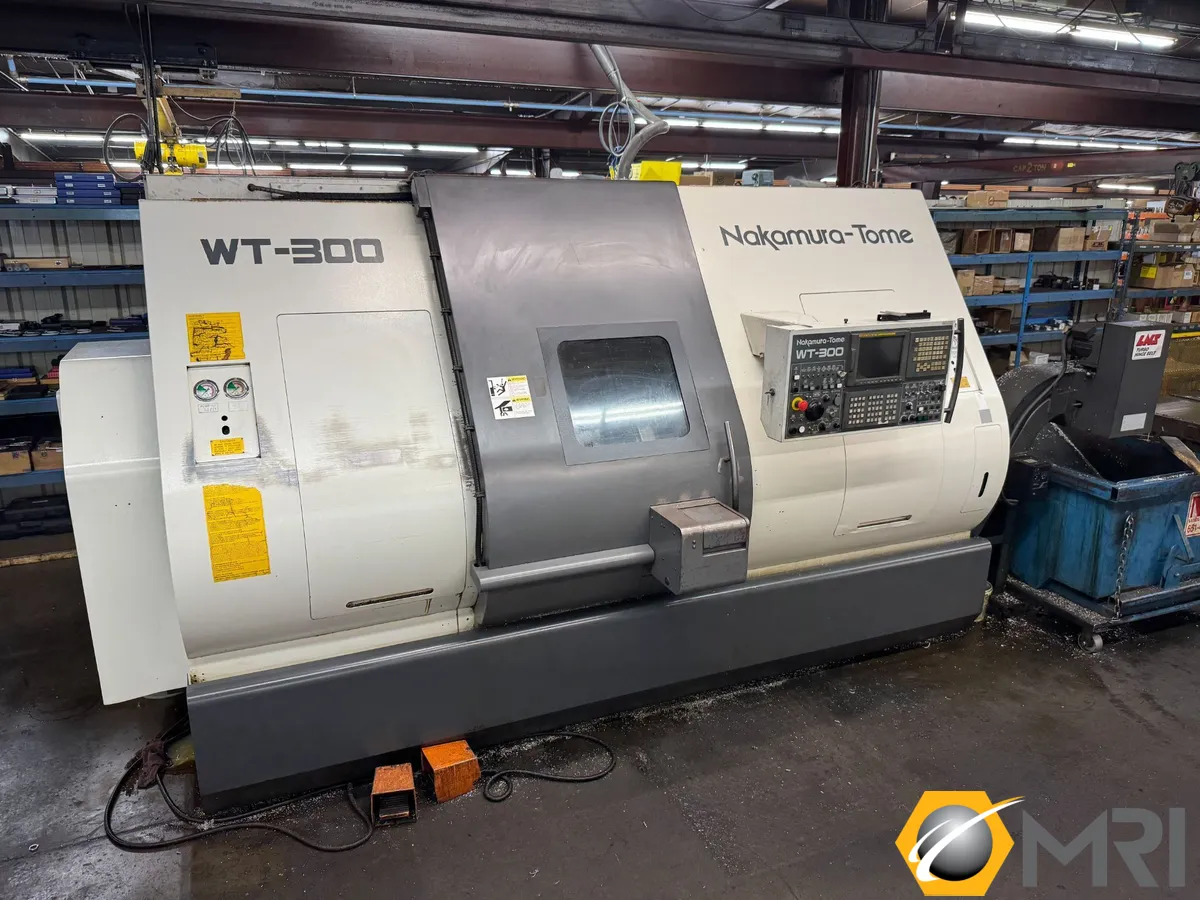

2008 NAKAMURA TOME WT-300MMY CNC LATHE | MM 7611935
ConditionUsed
1 available
Nakamura-Tome WT-300 MMY is a high-performance, multi-tasking CNC machine known for its precision milling and turning capabilities. It's a robust and reliable machine, box ways and very stout.

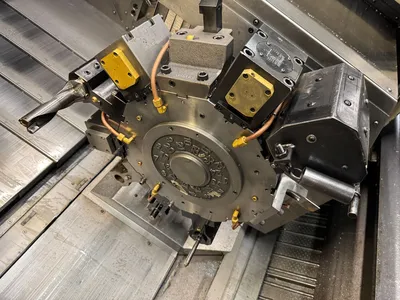

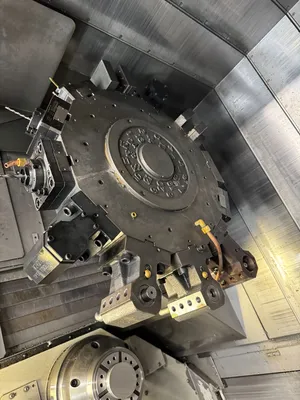

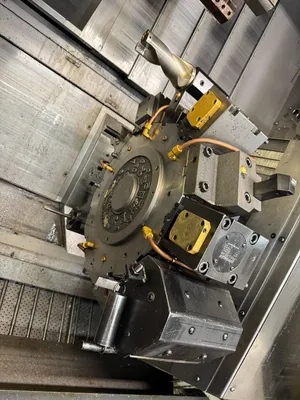

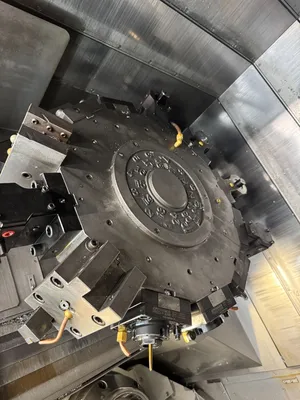

BMT65 Turrets - Live on both turrets

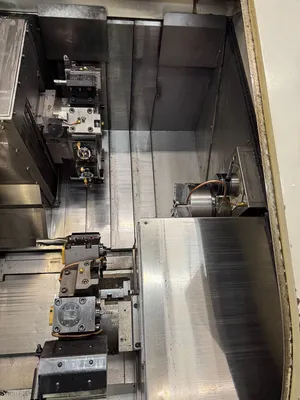

Upper/Lower Turrets
Y Axis Upper Turret
Main/Sub Spindles

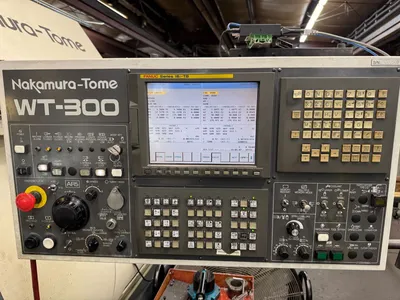

Fanuc 18i-TB
Main Spindle - 10" three Jaw Chuck

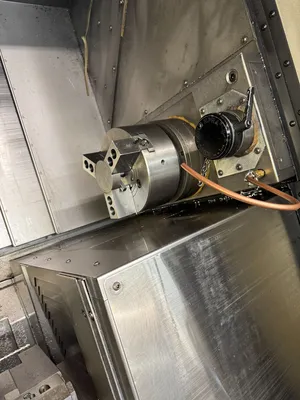

Sub Spindle - 3 Jaw Kitagawa Chuck
(7) Various X and Z axis Live tools

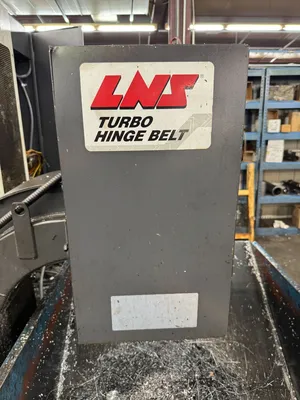

LNS Turbo Chip Conveyor
Max. Swing Dia.: 10.630''
Standard Cutting Diameter: 10.630''
Max. Distance Between Spindles: 43.30''
Bar Capacity 1 / 2: 2.5"
Spindle Nose / Spindle Thru Hole Diameter 1 / 2: A2-6'' / 3.15''
Spindle Speed: 4500 RPM
Spindle Horsepower 1 / 2: 25 HP AC
B - Axis Travel Right Spindle : 33.46''
Turret Type Number Of Positions 1 / 2: 24 DRUM TURRET
Number Of Milling Positions 1 / 2: 12 / 12
Rotary Tool Speed 1 / 2: 3600 RPM
Rotary Tool Horsepower 1 / 2: 7.5 HP AC
X - Axis Travel X1 / X2: 7.68'' / 7.68''
Z - Axis Travel Z1 / Z2: 30.71'' / 30.71''
Spindle Indexing Increments 1 / 2: .001 DEGREE
Machine Weight: 27,000 LBS.
Y - Axis Travel Y1: 4.72"
Turret Type Number Of Positions 1 / 2 : 24 DRUM TURRET
