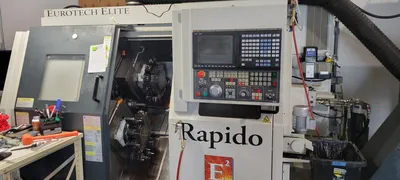

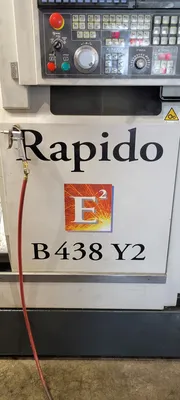

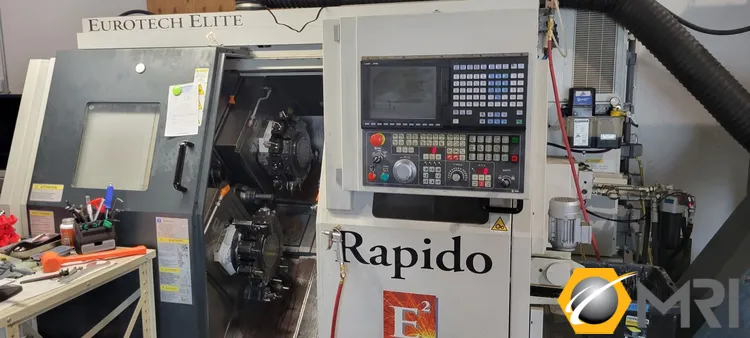

2020 EUROTECH RAPIDO B-438-Y2 CNC LATHE | AG 7611936
ConditionUsed
1 available
EUROTECH RAPIDO B438-Y2 2020, TWIN SPINDLE, TWIN TURRET, UPPER AND LOWER TURRET Y-AXIS,
BAR LOADER, HIGH PRESSURE COOLANT, CHIP CONVEYER, TOOLING
MITSUBISHI M730 CONTROL
10-axis: X1, Y1, Z1, X2, Y2, Z2, X3, Z3, C1, C2
Y-AXIS on both upper and lower turrets
Standard 100 psi Coolant System

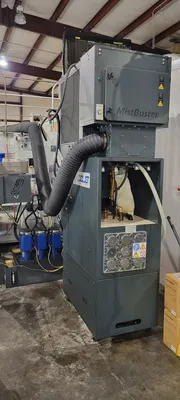

Cooljet 1000 PSI High Pressue Coolant System / Mistbuster Mist collector combination unit
Full C Axis On Main And Sub Spindles With Scale Feedback
Polygon Turning capable
Programmable Parts Catcher With Parts Conveyor
Rigid Tapping On Main
Sub Spindle Ejector and Parts Conveyor
Coolant Thru Spindle Clean Out
Auto Tool Presetter
Chip Conveyor

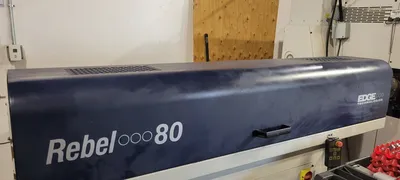

Edge Rebel 80 Bar Loader **
Tooling will be included, TBD
** ask about upgrading to an Iemca Boss 338 HD Superfast Magazine Bar Feed, Stock #: 7611951|AB

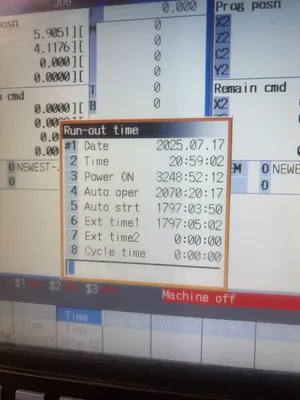

Control: Mitsubishi M730 VS-L
Bar Capacity: 1.5"
Chuck Size 4.33"
Max Machining Diameter: 3.94"
Max Swing Over Diameter: 5.51"
Distance Between Centers 11.5"
Main Spindle Max Speed: 7,000 RPM
Main Spindle Nose: 4.53"
Main Spindle Bore: 1.81"
Main Spindle Chuck Diameter: 4.33"
Main Spindle Motor Power: 15HP
Sub-Spindle Max Speed: 7,000 RPM
Sub-Spindle Nose: 4.53"
Sub-Spindle Bore: 1.81"
Sub-Spindle Chuck Diameter: 4.33"
Sub-Spindle Motor Power: 15 HP

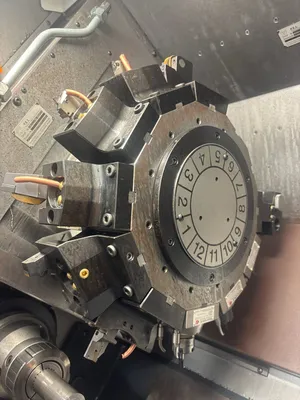

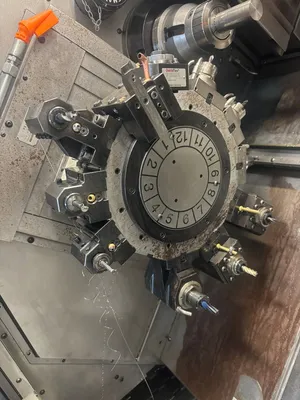

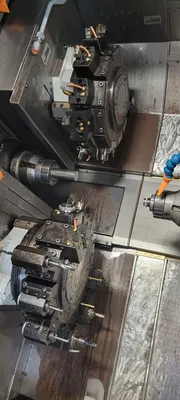

Upper and lower Turrets: 12 Station / turret
All Tooling Positions On Upper And Lower Turrets are Live Capable
