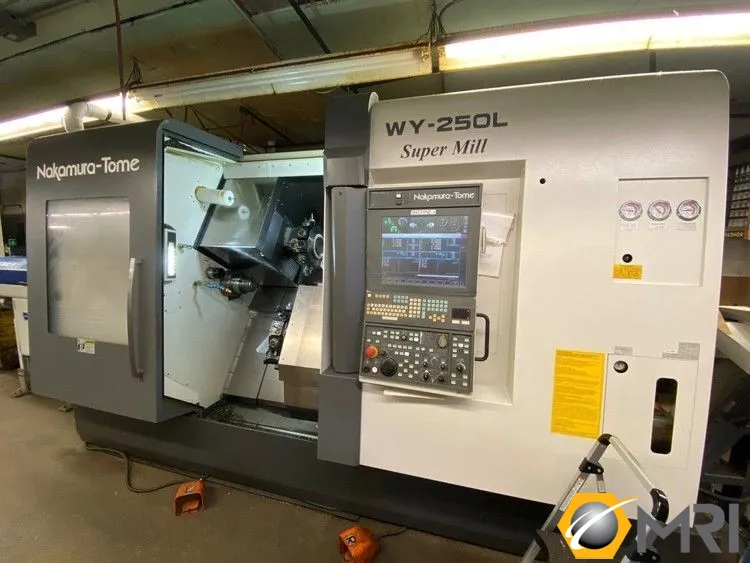

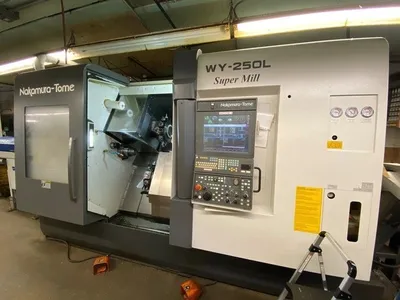

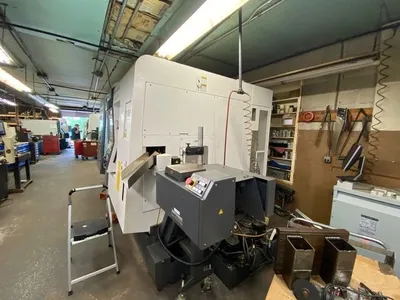

2014 NAKAMURA TOME WY 250L CNC LATHE WITH 5 AXIS OR MORE | IH 7611937
ConditionUsed
1 available

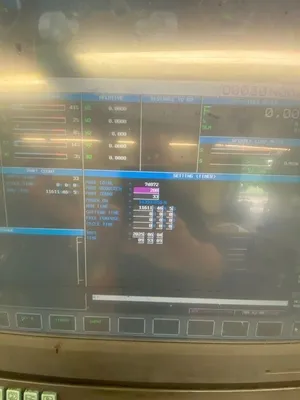

FANUC 31I B5 CNC COLOR CONTROL

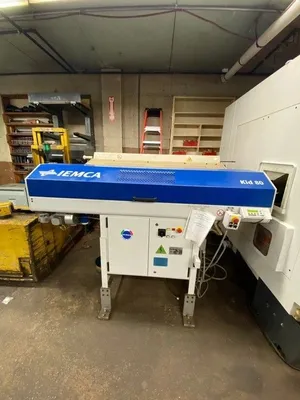

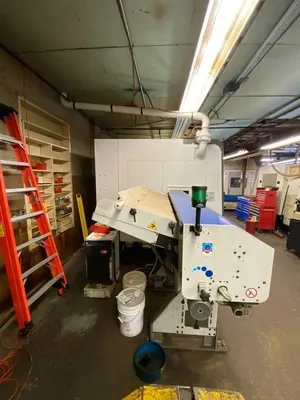

IEMCA BARFEED
AI CONTOUR CONTROL
CHIP CONVEYOR

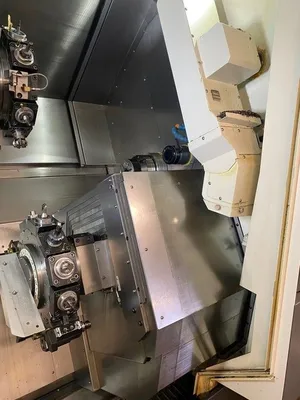

TOOL PRESETTER
MANUAL GUIDE I MULTI PATH
PITCH ERROR COMP
GRAPHIC FUNCTION
REGISTERED PROGRAMS EXPAN. 1
Y AXIS OFFSET
TOOL GEOMETRY/WEAR OFFSET
TOOL OFFSET 200 PAIRS
ARBITRARY ANGULAR AXIS CONTR
CAMFERING / CORNER B
CUSTOM MACRO B
DIRECT DRAWING DIMENSION
CONSTANT SURFACE SPEED CONTROL
THREAD CUTTING RETRACT
EMBEDDED ETHERNET
SPINDLE POLYGON FUNCTION
UNEXPECTED DISTRUBANCE DETECTION FUNCTION
BALANCE CUTTING
VARIABLE LEAD THREAD CUTTING
15 ROTARY HEADS INCLUDED
TURNING DIAMETER 8.8"
TURNING LENGTH 35.8"
DISTANCE BETWEEN SPINDLES 47.2"
SPINDLE NOSE 1 A2-6
SPINDLE NOSE 2 A2-5
SPINDLE BORE DIAMETER 1 3.15"
BAR CAPACITY 1 2.6"
SPINDLE SPEEDS 1 4,500 RPM
SPINDLE HORSEPOWER 1 25 HP
SPINDLE BORE DIAMETER 2 2.48"
BAR CAPACITY 2 2.04"
SPINDLE SPEEDS 2 5,000 RPM
SPINDLE HORSEPOWER 2 20 HP
X1 - AXIS TRAVEL 6.3"
X2 - AXIS TRAVEL 6.3"
Z1 - AXIS TRAVEL 35.8"
Z2 - AXIS TRAVEL 35.8"
Y1 - AXIS TRAVEL 2.75"
Y2 - AXIS TRAVEL -1.96"
C - AXIS INDEXING 1 0.001
C - AXIS INDEXING 2 0.001
W - AXIS TRAVEL SUB SPINDLE 37.2"
RAPID TRAVERSE RATE - X1 708 ipm
RAPID TRAVERSE RATE - X2 708 ipm
RAPID TRAVERSE RATE - Z1 1574 ipm
RAPID TRAVERSE RATE - Z2 1574 ipm
RAPID TRAVERSE RATE - Y1 393 ipm
RAPID TRAVERSE RATE - Y2 393 in/min.

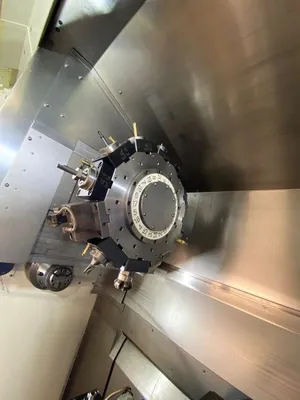

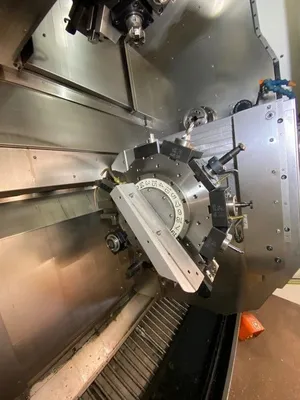

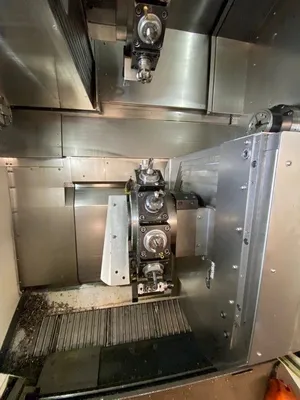

TURRET TOOL POSITIONS 1 24 station
TURRET ROTARY TOOL SPEEDS 1 6,000 RPM
TURRET ROTARY TOOL HORSE POWER 1 10 HP
TURRET TOOL POSITIONS 2 24
TURRET ROTARY TOOL SPEEDS 2 6,000 RPM
TURRET ROTARY TOOL HORSE POWER 2 10 HP
MACHINE WEIGHT 28,661 LBS.
DIMENSIONS 211" x 132" x 95"
