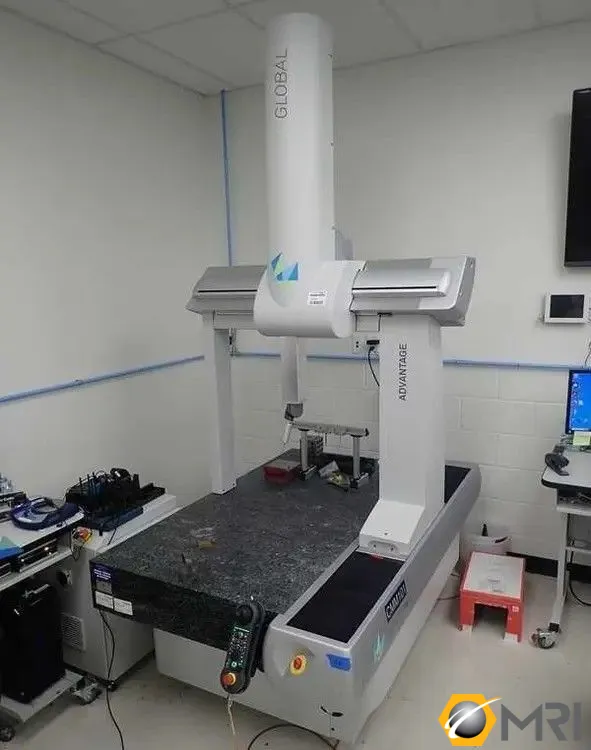

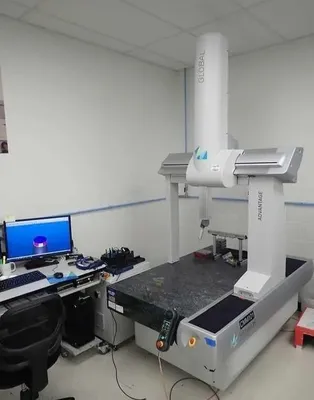

2014 HEXAGON GLOBAL ADVANTAGE 7.10.7 COORDINATE MEASURING MACHINE | JS 7611939

X-Axis Measuring Range: 27.56" (700 mm)
Y-Axis Measuring Range: 39.37" (1000 mm)
Z-Axis Measuring Range: 25.98" (660 mm)
Table Size: 27.56" x 64.96" (700mm x 1650 mm)
Max Workpiece Weight: 1,980 LBS
Accuracy: Microns
Operation: Bridge

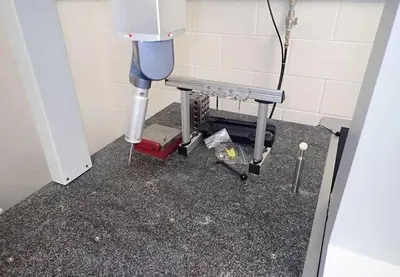

Probe / Sensor Type: Leitz LSP-X1HT Sensor Type Scanning Probe
Probe Wrist: Tesa Star-SM Indexing Motorized Probe Head
Electrics: 110/220/1/60
Approximate Machine Dimensions: 49.21" x 75.2"
Approximate Machine Height: 107"
Approximate Machine Weight: 4,000 LBS
